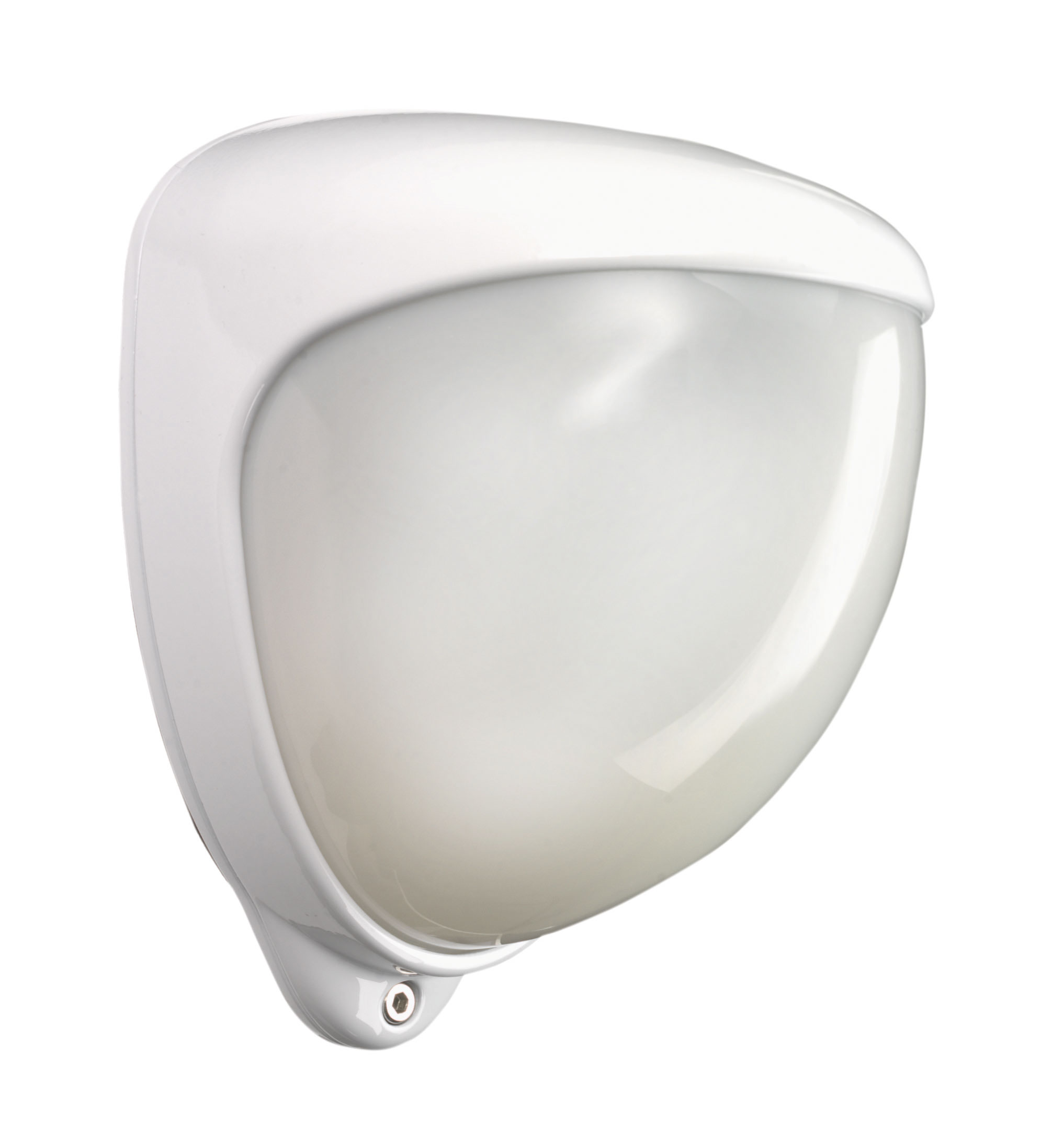

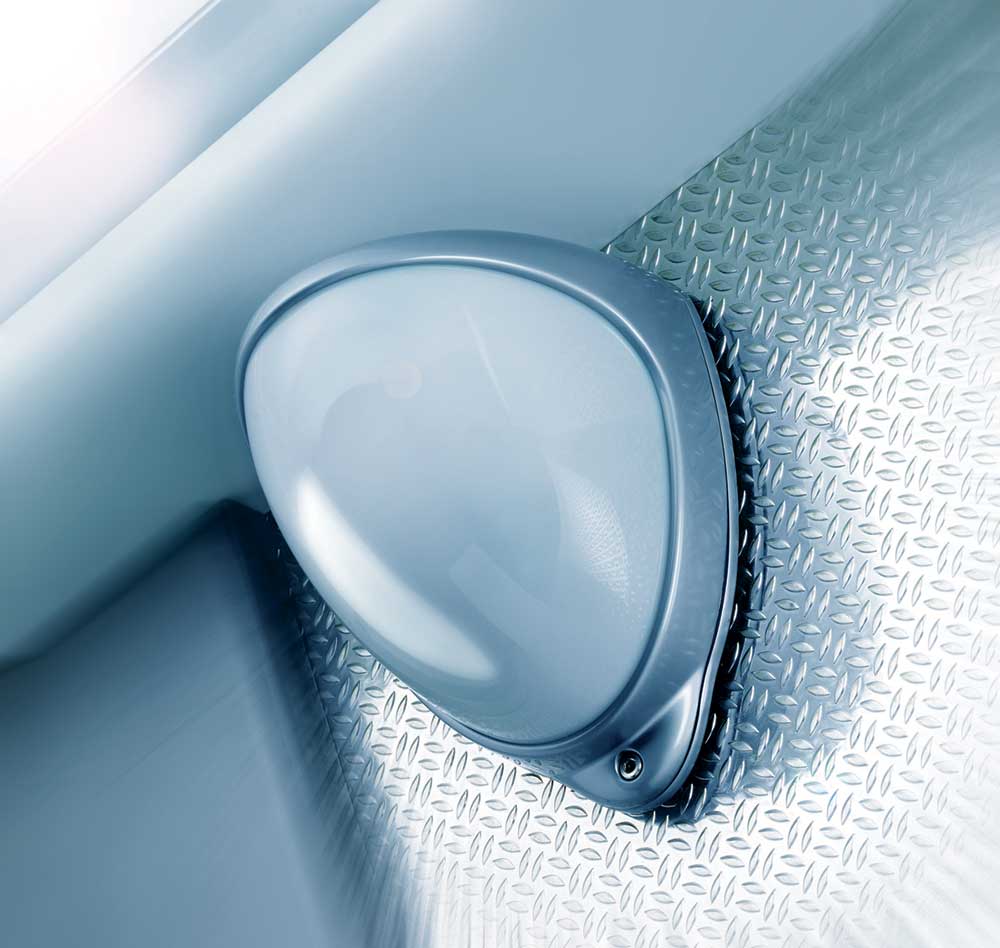

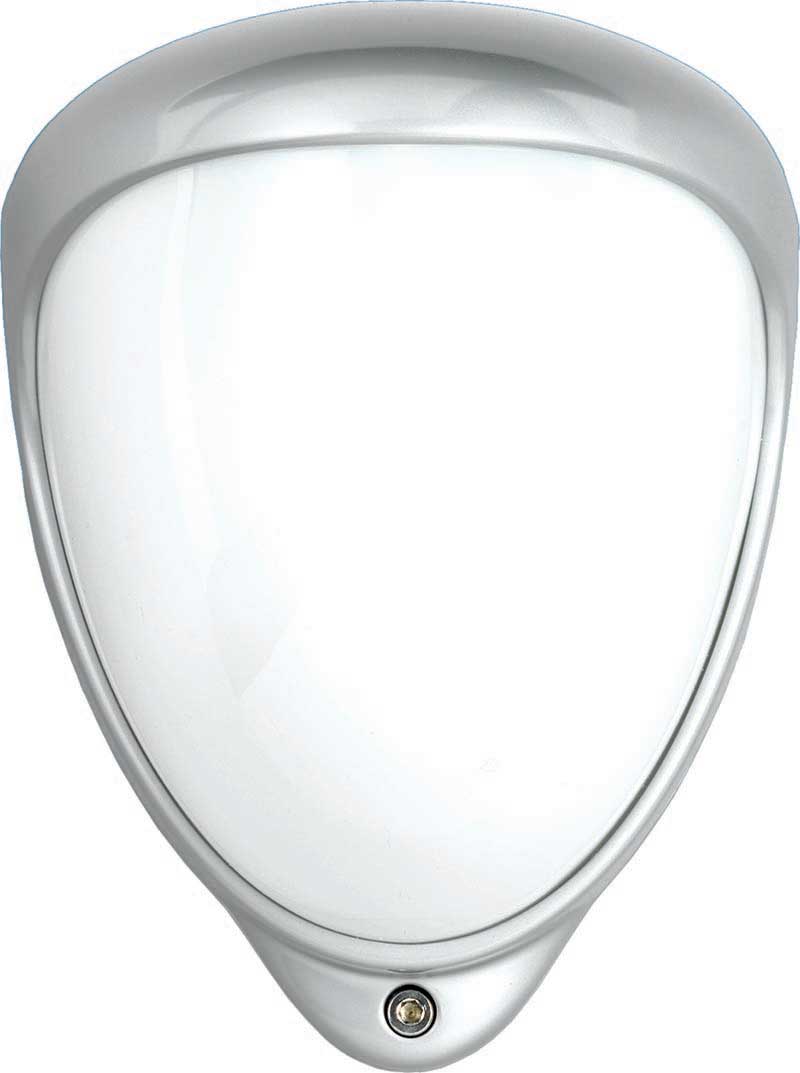

GJD - GJD311 - D-TECT3 30m (98ft) x 30m (82ft) volumetric Dual-Tech (PIR+m/wave 10.525GHz) Detector - Silver Housing
Part number:
GJD311
Price:
Description
The D-TECT 3 is a BS8418 compliant, quad element PIR and microwave external movement detector, which can be used to control cameras, connect to alarm panels and communicate with GJD’s lighting control systems.
The detector’s triple technology sensing module is equipped with two volt free and two negative switched outputs with a programmable beam range of up to 30 metres, avoiding boundary overspill and offering truly exceptional resistance to false alarms.
Features:
- Adjustable pan and tilt
- A conduit cable adaptor is available
- Packed with engineer friendly features to ease cable terminators, set-up and servicing
- Covert sensor module
End User Benefits:
- Modern design
- Exceptional resistance to false alarms
- Easy to install and highly cost effective
- Robust zinc alloy metal housing
- Integral EOL resistors
| Specifications | |
| RANGE | Up to 30m programmable |
| COVERAGE | 10º - 70º detection angle, 30m x 30m max |
| ADJUSTMENT | 180º pan + 90º tilt, pan & tilt alignment markers |
| MOUNTING HEIGHT | Up to 6m (with range reduction) - Optimum 3m |
| FRESNEL LENS | 28 zones for each Pyro pair |
| CUSTOMISED OPTICS | Double silicon shielded quad element eliminates 50,000 Lux of white light |
| INDICATORS | 3 x LEDs Green - microwave, Red - both PIRs, Blue - alarm output |
| MICROWAVE FREQUENCY | Country dependent, refer to approved frequency codes |
| OUTPUTS | 2 x volt-free, silent solid state magnetically immune 2 x neg. switched plus one common tamper (front and rear switches) |
| END OF LINE RESISTANCE (EOL) | Selectable from 1K, 2K2, 3K3, 4K7, 5K6, 6K8 |
| POWER INPUT | 9-24 V AC/DC |
| CURRENT | 15 mA (12V nominal) |
| PULSE COUNT | 1-3 |
| WALK TEST | Output test mode with LED indication |
| OPERATING TEMP | -20ºC to +55ºC conformally coated electronics for increased stability |
| TEMP. COMPENSATION | Digital sensitivity adjustment |
| TIMER OPTIONS | 2 to 60 seconds |
| LIGHT SENSING | Dusk (2 Lux) to 24 hour |
| HOUSING | High impact zinc alloy |
| PROTECTION RATING | IP65 |

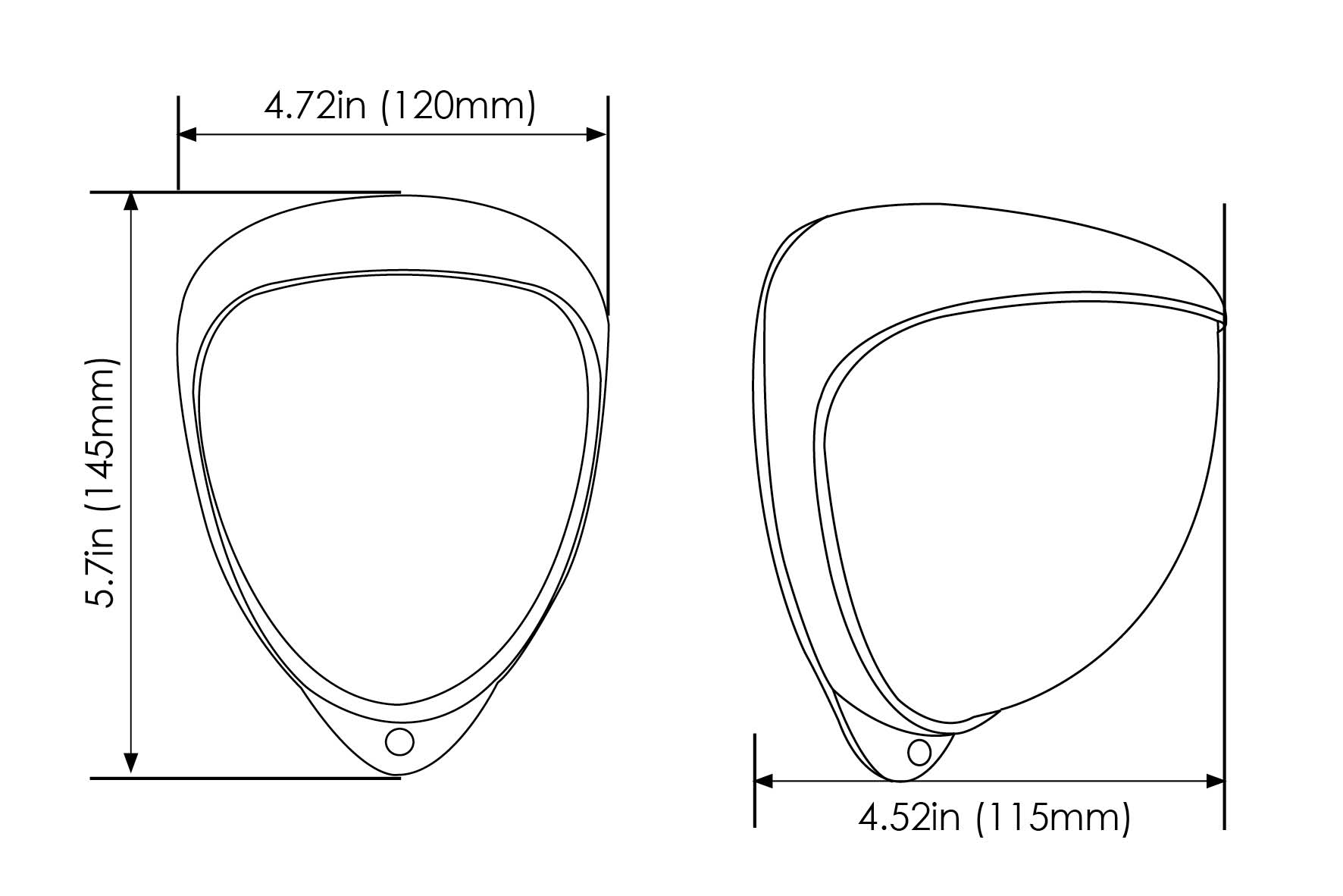

| DIMENSIONS | 145 x 120 x 115 mm |
| WEIGHT | 770g NET, 910g GROSS |
| CABLE <200M | Utilising all five outputs (incl. tamper) - 12 core 7/0.2mm |
| CABLE <500M | Utilising all five outputs (incl.tamper) - 12 core 16/0.2mm |
