GJD - GJD340W - D-TECT40 40m (132ft) x 4m/8m (13ft/27ft) volumetric PIR Detector White Housing
Part number:
GJD340W
Price:
Description
GJD’s D-TECT 40, BS8418 compliant movement detectors combine advanced signal processing and unique optical systems, which allow for the detection range to be programmed from 65.6ft - 131.2ft (20-40m), avoiding boundary overspill.
The D-TECT 40 motion detector is particularly effective for perimeter detection and offers truly exceptional resistance to false alarms.
Features:
- Programmable detection beam range up to 131.2ft
- Adjustable pan and tilt
- Engineer friendly features to ease cable terminations, set-up and servicing
- Covert sensor module
End User Benefits:
- Exceptional resistance to false alarms
- Easy to install and highly cost effective
- Robust zinc alloy metal housing
- Field of view Fresnel lens options
- Aesthetically pleasing designs
| SPECIFICATIONS | |
| DETECTION AREA | Programmable between 65.6ft - 131.2ft (20-40m) |
| COVERAGE | Two Fresnel lenses 131.2ft x 13.1ft or 131.2 x 26.2ft (40m x 4m or 40m x 8m) |
| ADJUSTMENT | 180º pan & 90º tilt |
| MOUNTING HEIGHT VARIABLE | Up to 13.1ft (4m) - Optimum 9.85ft (3m) |
| FRESNEL LENS | 4 or 12 zones for each Pyro pair |
| CUSTOMISED OPTICS | Double silicon shielded quad element eliminates 50,000 Lux of white light |
| INDICATORS | 1 x Blue LED on detection (configurable on/off) |
| OUTPUTS | 2 x volt-free, silent solid state magnetically immune 2 x neg.switched plus one common tamper (front and rear switches) |
| TAMPER SWITCHES | Front and rear tamper switches, case open and removal from wall |
| END OF LINE RESISTANCE (EOL) | Selectable from 1K, 2K2, 3K3, 4K7, 5K6, 6K8 |
| POWER INPUT | 9-24V AC/DC |
| CURRENT | 9mA (12V nominal) |
| PULSE COUNT | 1 - 2 |
| WALK TEST | Output test mode with LED indication |
| OPERATING TEMP | -20ºC to +55º conformally coated electronics for increased stability |
| TEMP. COMPENSATION | Digital sensitivity adjustment |
| TIMER OPTIONS | 2 to 60 seconds |
| LIGHT SENSING | Dusk (2 Lux) to 24 hour |
| HOUSING | High impact zinc alloy |
| PROTECTION RATING | IP65 |

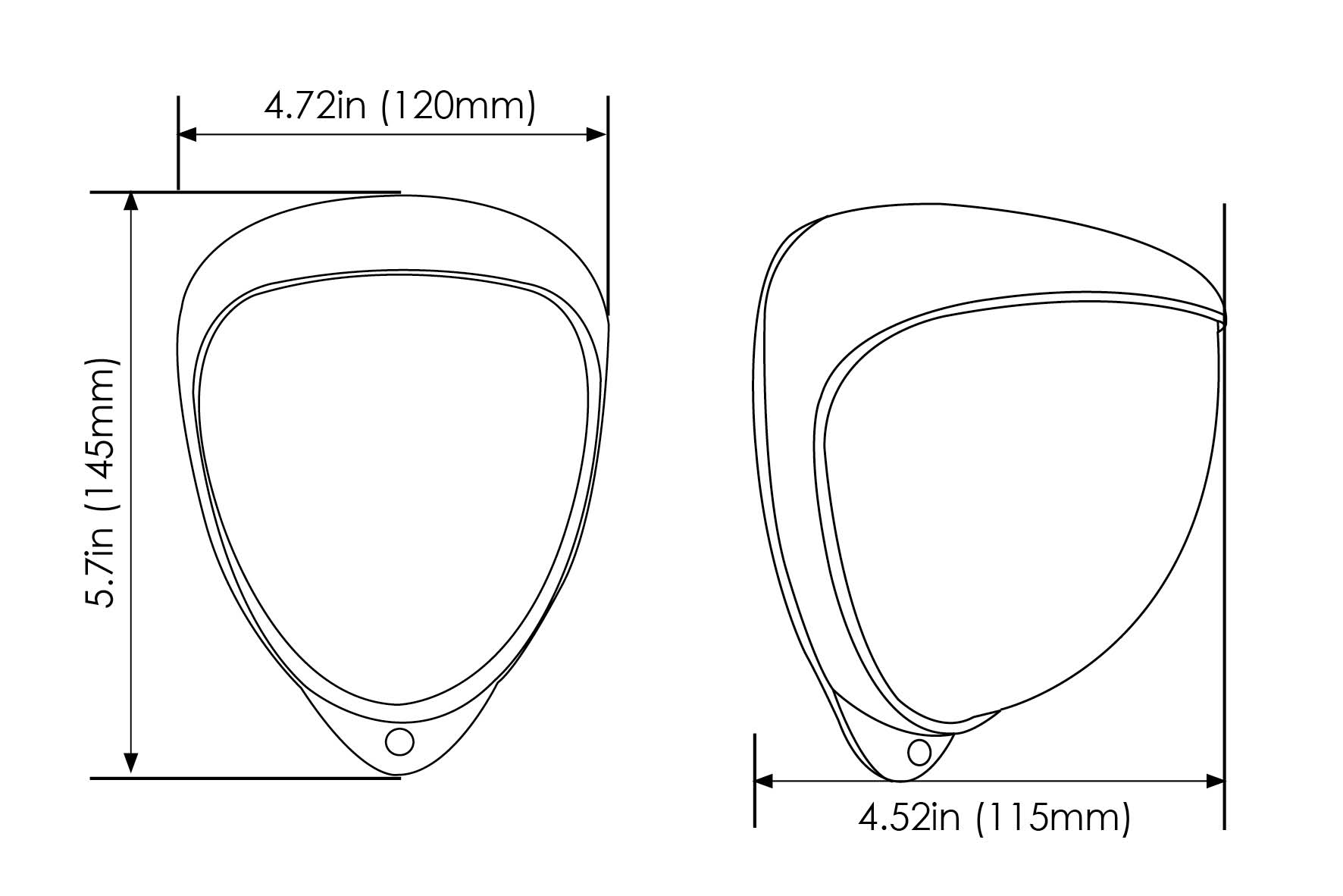

| DIMENSIONS | 5.7in x 4.72in x 4.52in (145 x 120 x 115mm) |
| WEIGHT | 750g NET, 880g GROSS |
| CABLE < 656ft (200M) | Utilising all five outputs (incl. tamper) - 12 core 7/0.2mm |
| CABLE < 1640ft (500M) | Utilising all five outputs (incl. tamper) - 12 core 16/0.2mm |
