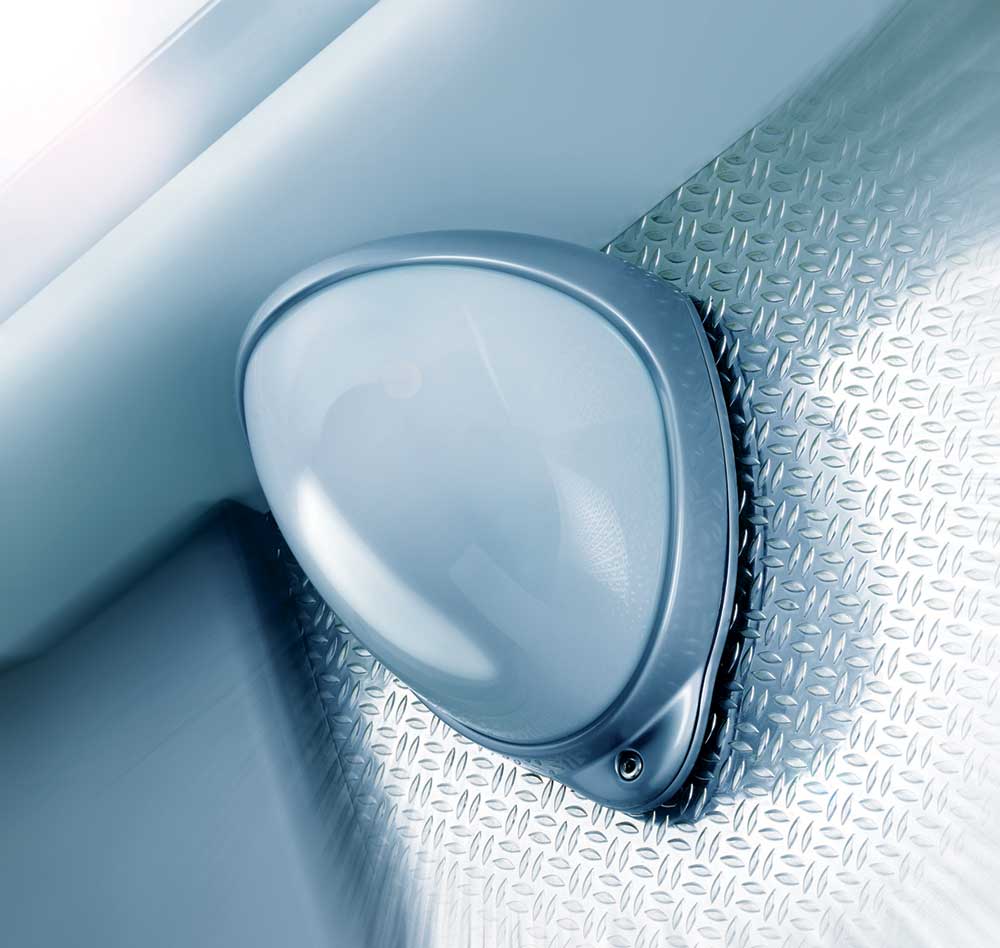

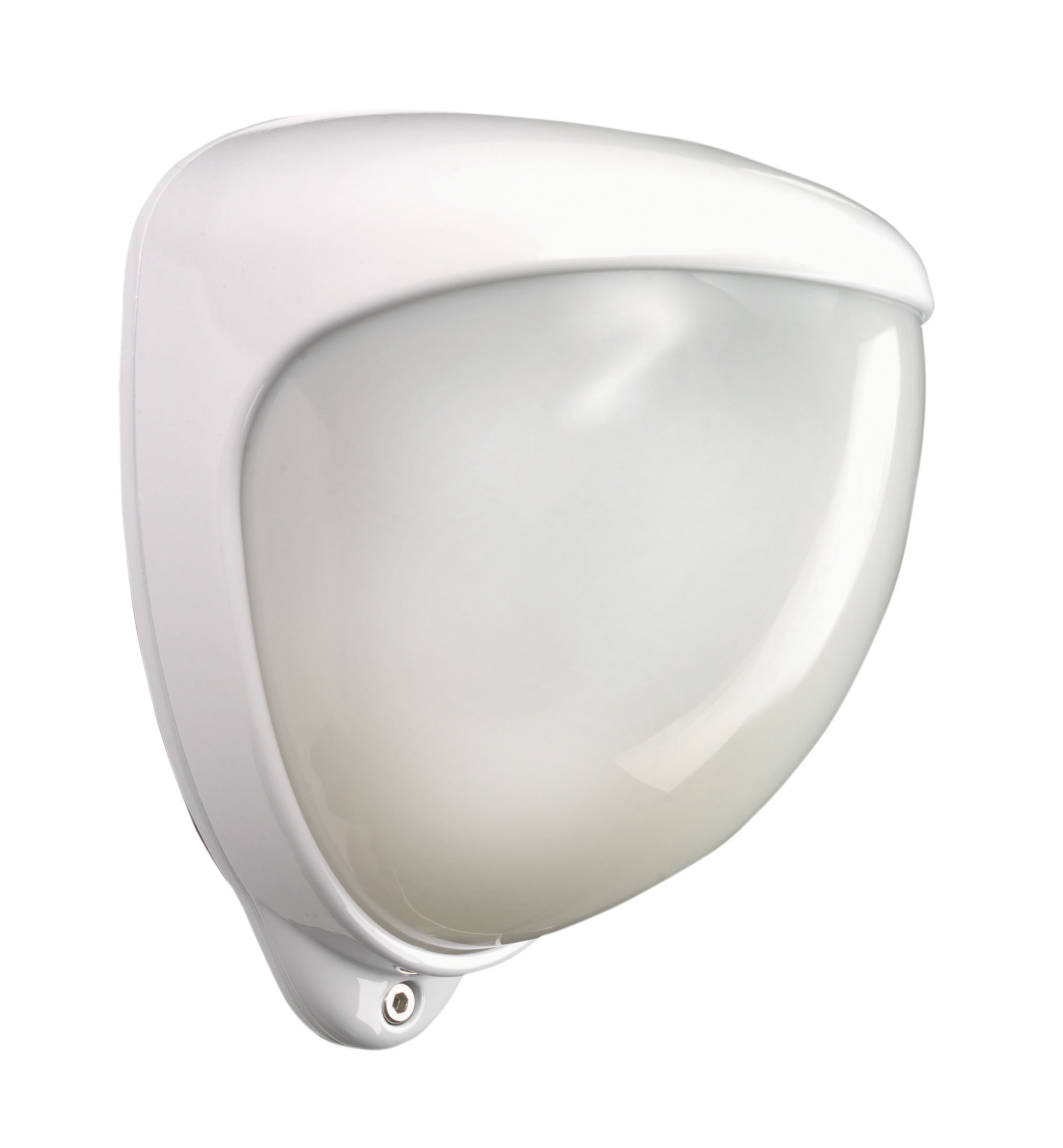

GJD - GJD350 - D-TECT50 40m (164ft) x 10m (33ft) volumetric PIR Detector - Silver Housing
Part number:
GJD350
Price:
Description

The D-TECT 50, BS 8418 compliant movement detectors combine advanced signal processing and unique optical systems, which allow for the beam range to be programmed from 82ft to 164ft (25 to 50m), avoiding boundary overspill, making it particularly effective for perimeter detection.



Features:

  • Detection area of up to 164ft (50m)
  • Adjustable pan and tilt
  • A conduit cable adaptor is available
  • Engineer friendly features to ease cable termination, set-up and servicing
  • Covert sensor module



End User Benefits:

  • Exception resistance to false alarms
  • Easy to install and highly cost effective
  • Robust IP65 Zinc Alloy metal housing
  • Long range narrow width detection beam
SPECIFICATIONS
RANGEFrom 82ft to 164ft (25m to 50m) programmable
COVERAGEDetection Area 164ft x 32.8ft (50m x 10m)
ADJUSTMENT180º pan + 90º tilt
MOUNTING HEIGHTOptimum 9.85ft (3m)
FRESNEL LENS12 zones for each Pyro pair
CUSTOMISED OPTICSDouble silicon shielded quad element eliminates 50,000 Lux of white light
INDICATORS1 x Blue LED on detection (configurable on/off)
OUTPUTS2 x volt-free, silent solid state magnetically immune, 2 x neg, switched plus one common tamper (front and rear switched)
POWER INPUT9 - 24 AC/DC
CURRENT12 mA (12V nominal)
PULSE COUNT1-2
WALK TESTOutput test mode with LED indication
OPERATING TEMP-20ºC to +55ºC conformally coated electronics for increased stability
TEMP. COMPENSATIONDigital sensitivity adjustment
TIMER OPTIONS2 to 60 seconds
LIGHT SENSINGDusk (2 Lux) to 24 hour
HOUSINGHigh impact zinc alloy
PROTECTION RATINGIP55

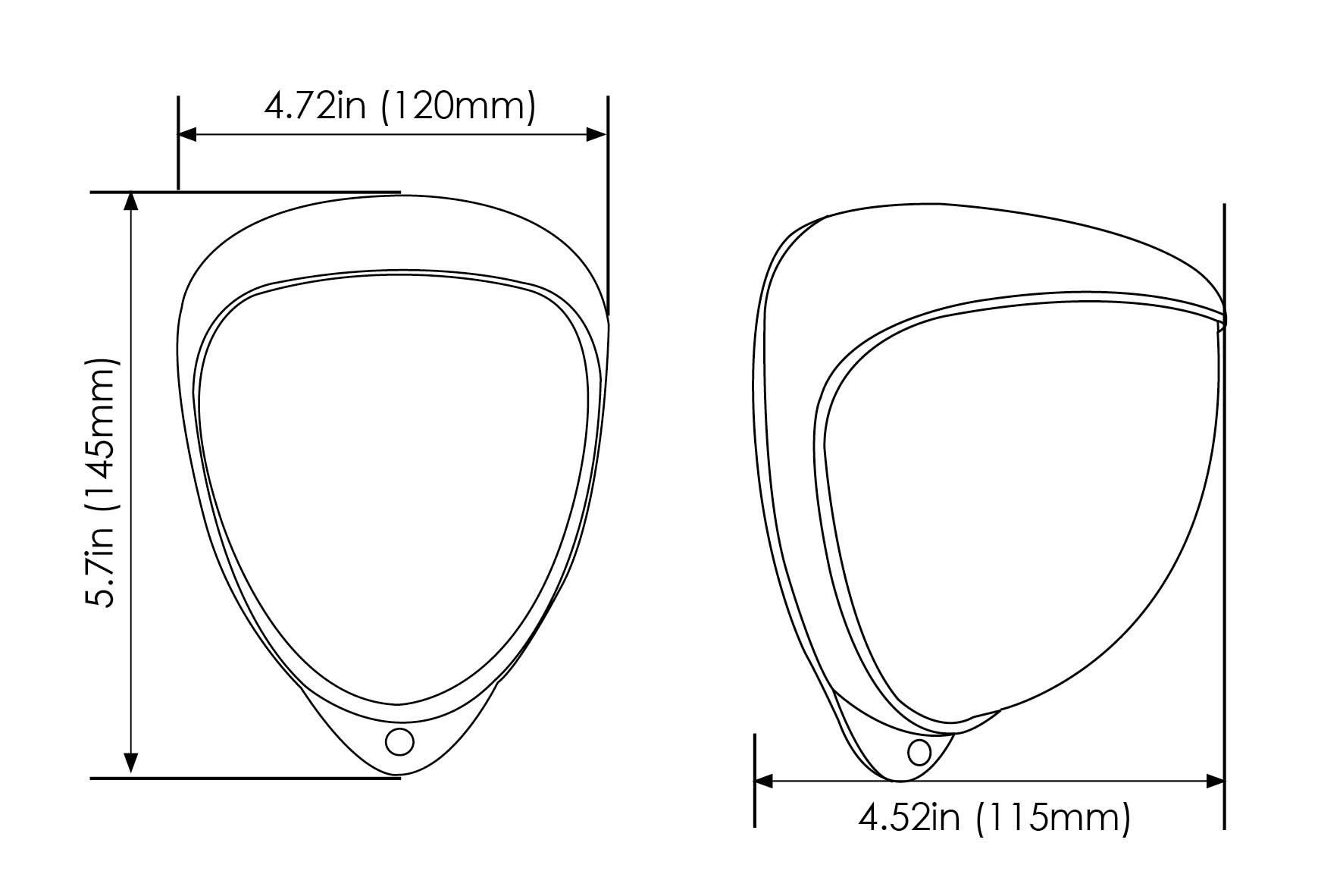

DIMENSIONS5.7in x 4.72in x 4.52in (145 x 120 x 115mm)
WEIGHT750g NET, 880g GROSS
CABLE < 656ft (200M)Utilising all five outputs (incl. tamper) - 12 core 7/0.2mm
CABLE < 1640ft (500M)Utilising all five outputs (incl. tamper) - 12 core 16/0.2mm
