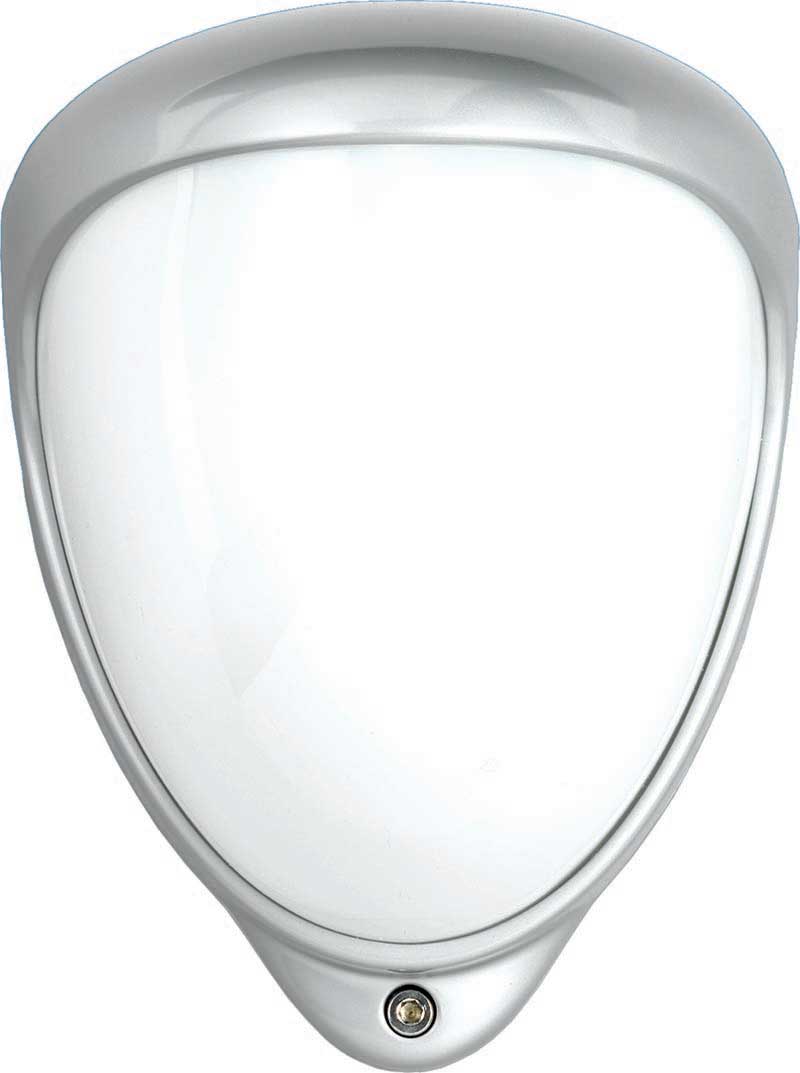

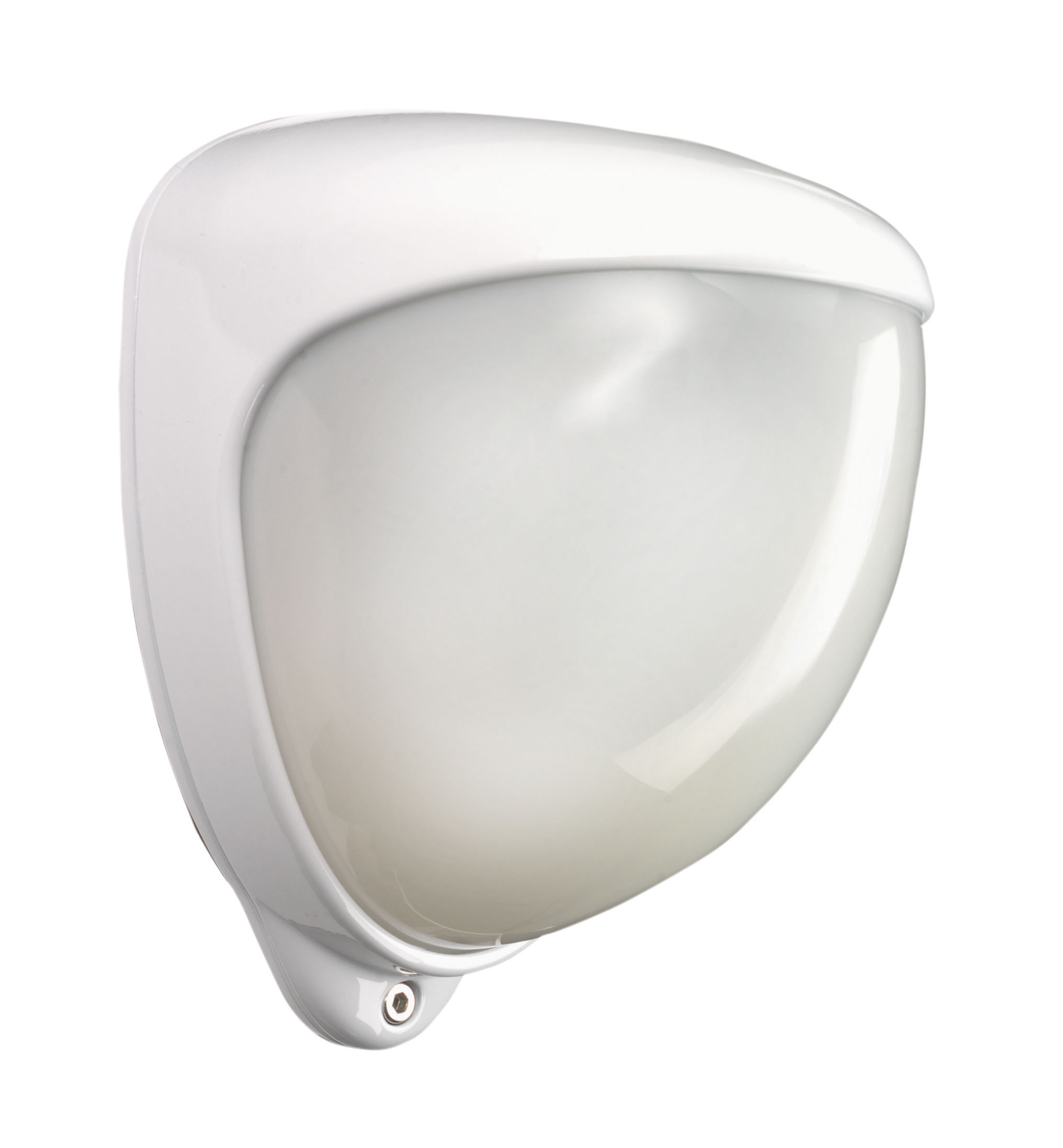

GJD - GJD350W - D-TECT50 40m (164ft) x 10m (33ft) volumetric PIR Detector - White Housing
Part number:
GJD350W
Price:
Description
The D-TECT 50, BS8418 compliant movement detector combines advanced signal processing and unique optical systems, which allows the narrow detection beam to be programmed from 82ft to 164ft.
Features:
- Detection area of up to 164ft (50m)
- Adjustable pan and tilt
- A conduit cable adaptor is available
- Engineer friendly features to ease cable termination, set-up and servicing
- Covert sensor module
End User Benefits:
- Exception resistance to false alarms
- Easy to install and highly cost effective
- Robust IP65 Zinc Alloy metal housing
- Long range narrow width detection beam
| SPECIFICATIONS | |
| RANGE | From 82ft to 164ft (25m to 50m) programmable |
| COVERAGE | Detection Area 164ft x 32.8ft (50m x 10m) |
| ADJUSTMENT | 180º pan + 90º tilt |
| MOUNTING HEIGHT | Optimum 9.85ft (3m) |
| FRESNEL LENS | 12 zones for each Pyro pair |
| CUSTOMISED OPTICS | Double silicon shielded quad element eliminates 50,000 Lux of white light |
| INDICATORS | 1 x Blue LED on detection (configurable on/off) |
| OUTPUTS | 2 x volt-free, silent solid state magnetically immune, 2 x neg, switched plus one common tamper (front and rear switched) |
| POWER INPUT | 9 - 24 AC/DC |
| CURRENT | 12 mA (12V nominal) |
| PULSE COUNT | 1-2 |
| WALK TEST | Output test mode with LED indication |
| OPERATING TEMP | -20ºC to +55ºC conformally coated electronics for increased stability |
| TEMP. COMPENSATION | Digital sensitivity adjustment |
| TIMER OPTIONS | 2 to 60 seconds |
| LIGHT SENSING | Dusk (2 Lux) to 24 hour |
| HOUSING | High impact zinc alloy |
| PROTECTION RATING | IP55 |

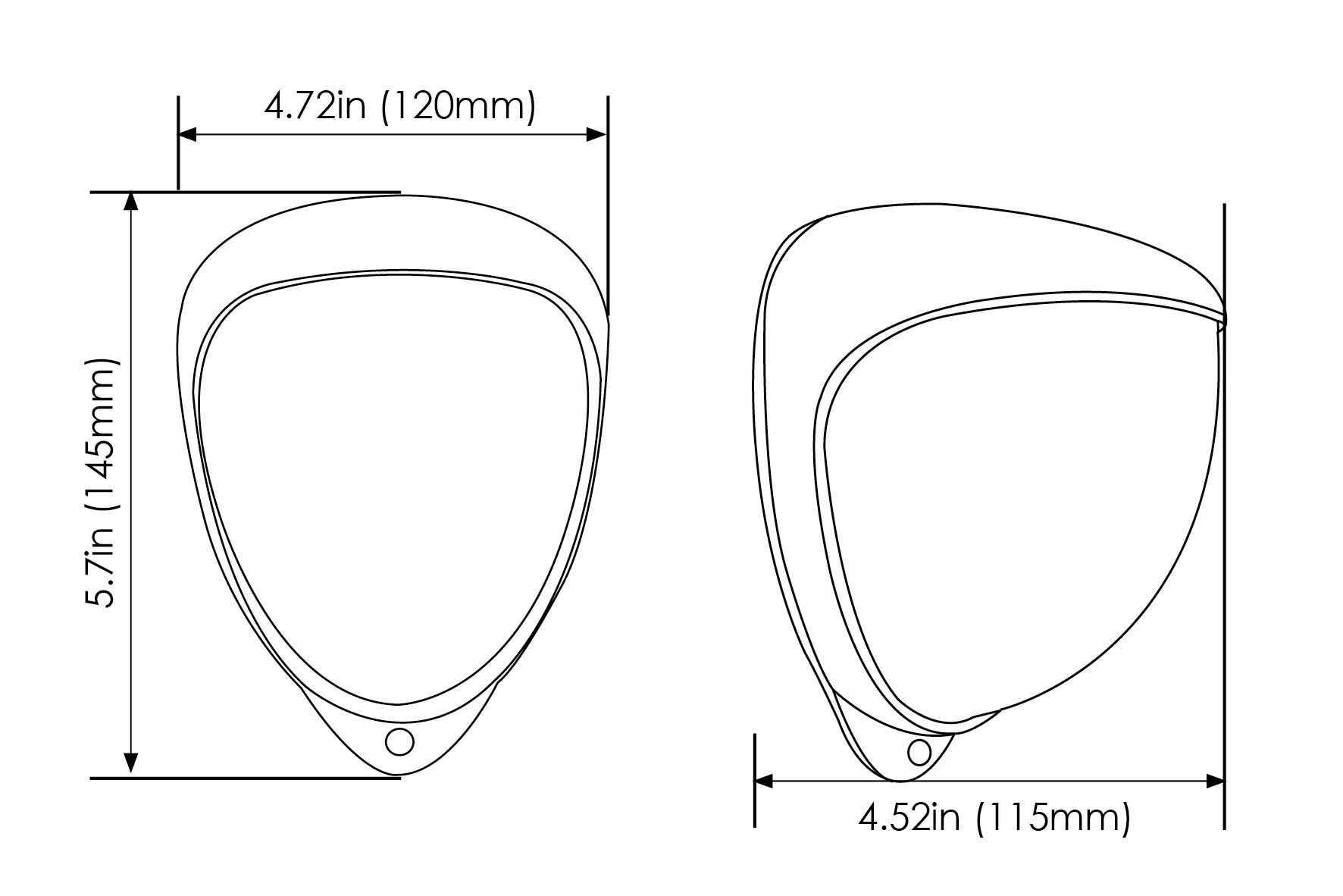

| DIMENSIONS | 5.7in x 4.72in x 4.52in (145 x 120 x 115mm) |
| WEIGHT | 750g NET, 880g GROSS |
| CABLE < 656ft (200M) | Utilising all five outputs (incl. tamper) - 12 core 7/0.2mm |
| CABLE < 1640ft (500M) | Utilising all five outputs (incl. tamper) - 12 core 16/0.2mm |
