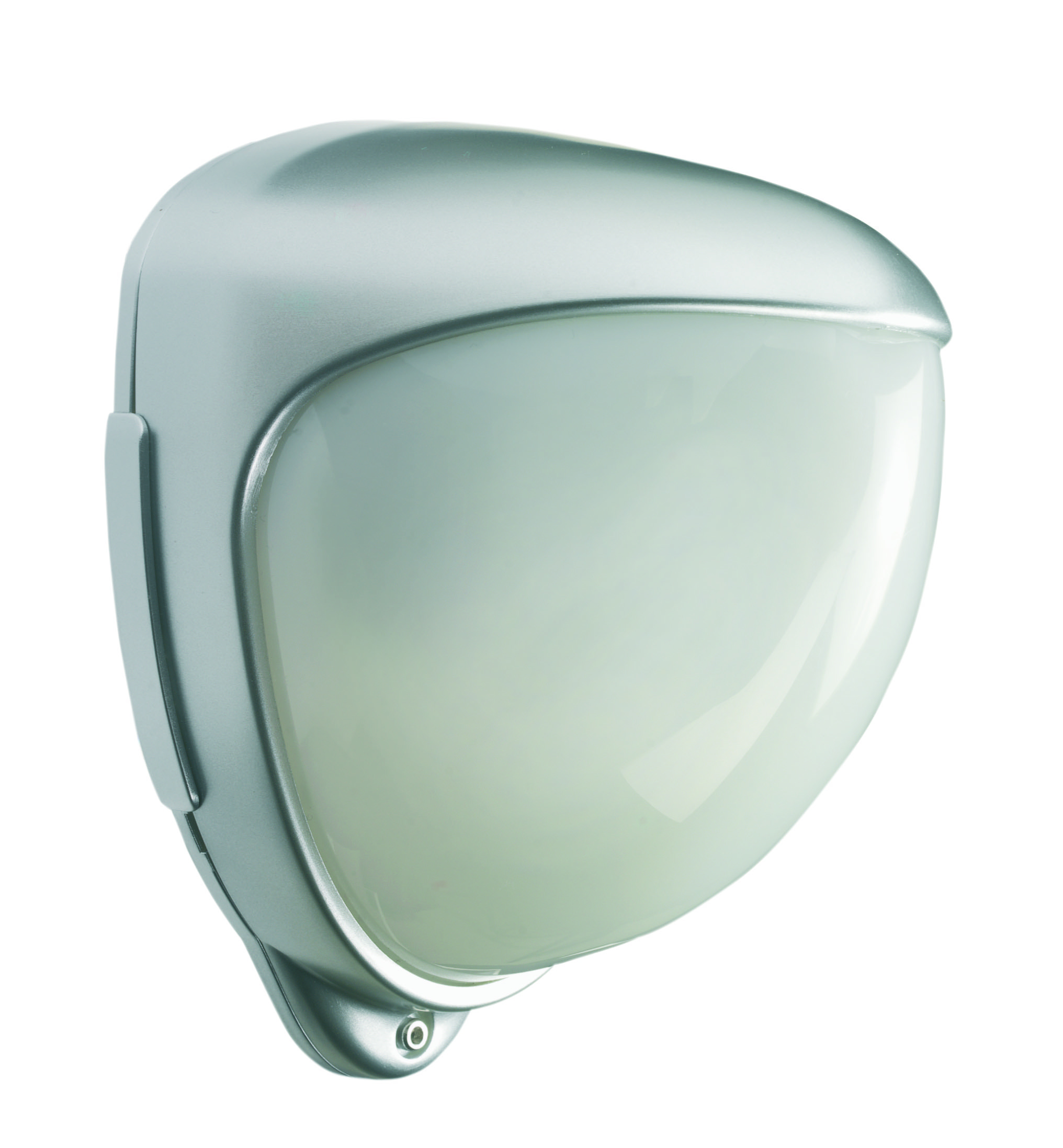

GJD - GJD370 - D-TECT Pet Immune Silver ABS Housing
Part number:
GJD370
Price:
Description

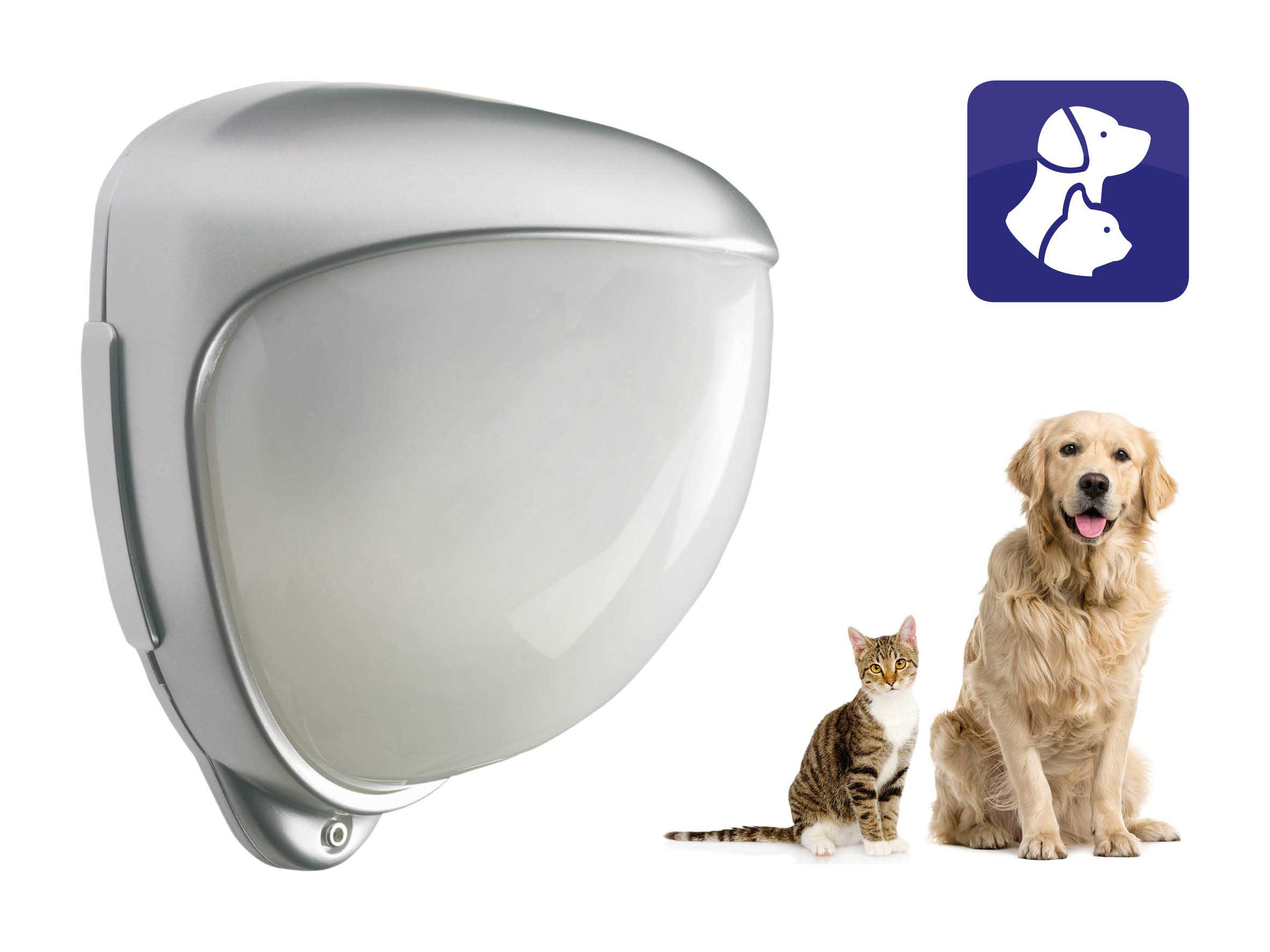

The D-TECT Pet Immune only alerts to an intrusion when both PIR’s and the microwave are triggered simultaneously, providing truly reliable performance and exceptional resistance to unwanted alarms. The D-TECT Pet Immune is perfect for residential or commercial outdoor applications where pets and other animals roam free.



GJD’s D-TECT Pet Immune is designed to provide reliable immunity for animals weighing up to 30kg. It also has a selectable range on the PIR and microwave up to 49.2ft (15m).



Features:

  • Active infra-red sensor system to prevent mask tampering
  • Adjustable 180º pan and 30º tilt
  • Conduit adaptor available
  • Selectable range up to 42.9ft (15m) on PIR & microwave
  • Covert sensor module
  • Adjustable pulse count (programmed through DIP switches) 1-4
  • Built in anti-sway on the microwave
  • Mounting height up to 5.9ft (1.8m)



End User Benefits:

  • Modern design
  • Exceptional resistance to false alarms
  • Robust IP65 rated ABS housing
  • Superior PIR, microwave and anti-mask sensor protection
  • Pet immunity up to 30Kg
SPECIFICATIONS
DETECTION RANGEUp to 49.2ft (15m) selectable
COVERAGE10º - 70º detection angle,
WALK TESTOutput test mode with LED indication
OPERATING TEMPERATURE-20ºC to +55ºC
Conformally coated electronics for increased stability
ADJUSTMENT180º pan, 30º tilt
MOUNTING HEIGHTUp to 5.9ft (1.8m)
POWER INPUT9-15 V DC
INDICATOR LEDs1 x Red - Top PIR
1 x Green - Bottom PIR
1 x Amber - Anti-Mask
1 x Blue - Alarm
OUTPUTS3 x volt-free, silent solid state magnetically immune, incl. common tamper (front and rear switches)
WEATHER RATINGIP65
PULSE COUNTProgrammed through DIP s
MICROWAVE FREQUENCYGJD370 10.525GHz
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Manual
0.5mb
File
Quick Guide
0.4mb
