GJD - GJD500 - D-TECT Laser
25m x 25m (82ft x 82ft) D-TECT Laser
Part number:
GJD500
Price:
Description

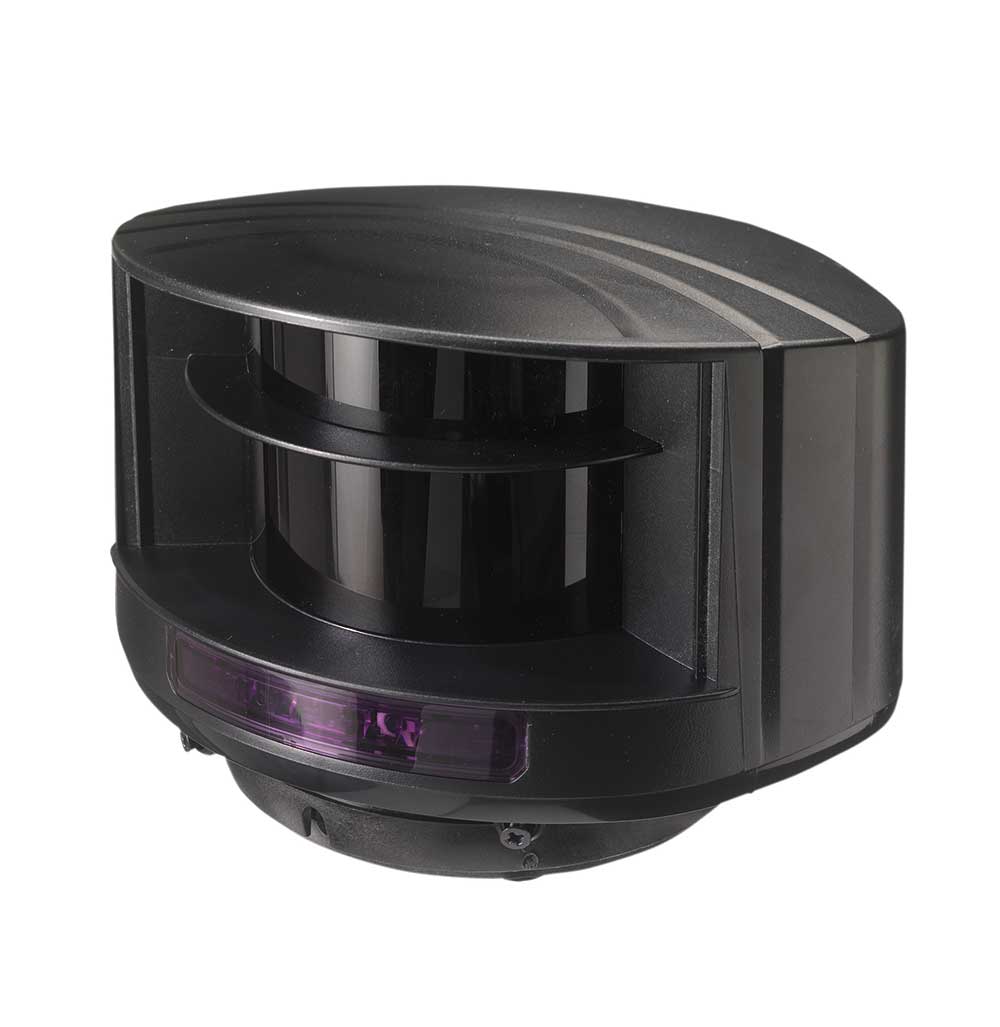

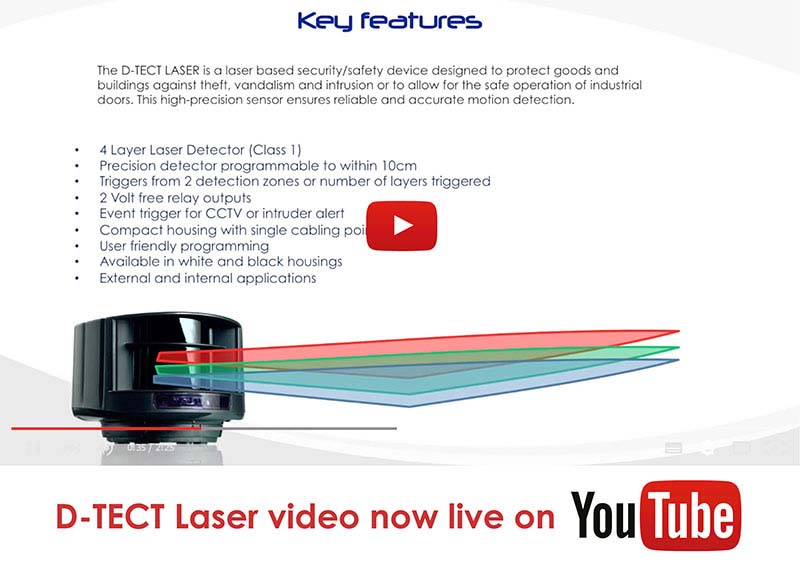

The D-TECT Laser is a laser based security device designed to create virtual curtains and surveillance security zones. The D-TECT Laser is programmable to within 3.93in and operates with the highest levels of precision for accurate and reliable intrusion detection.
APPLICATIONS

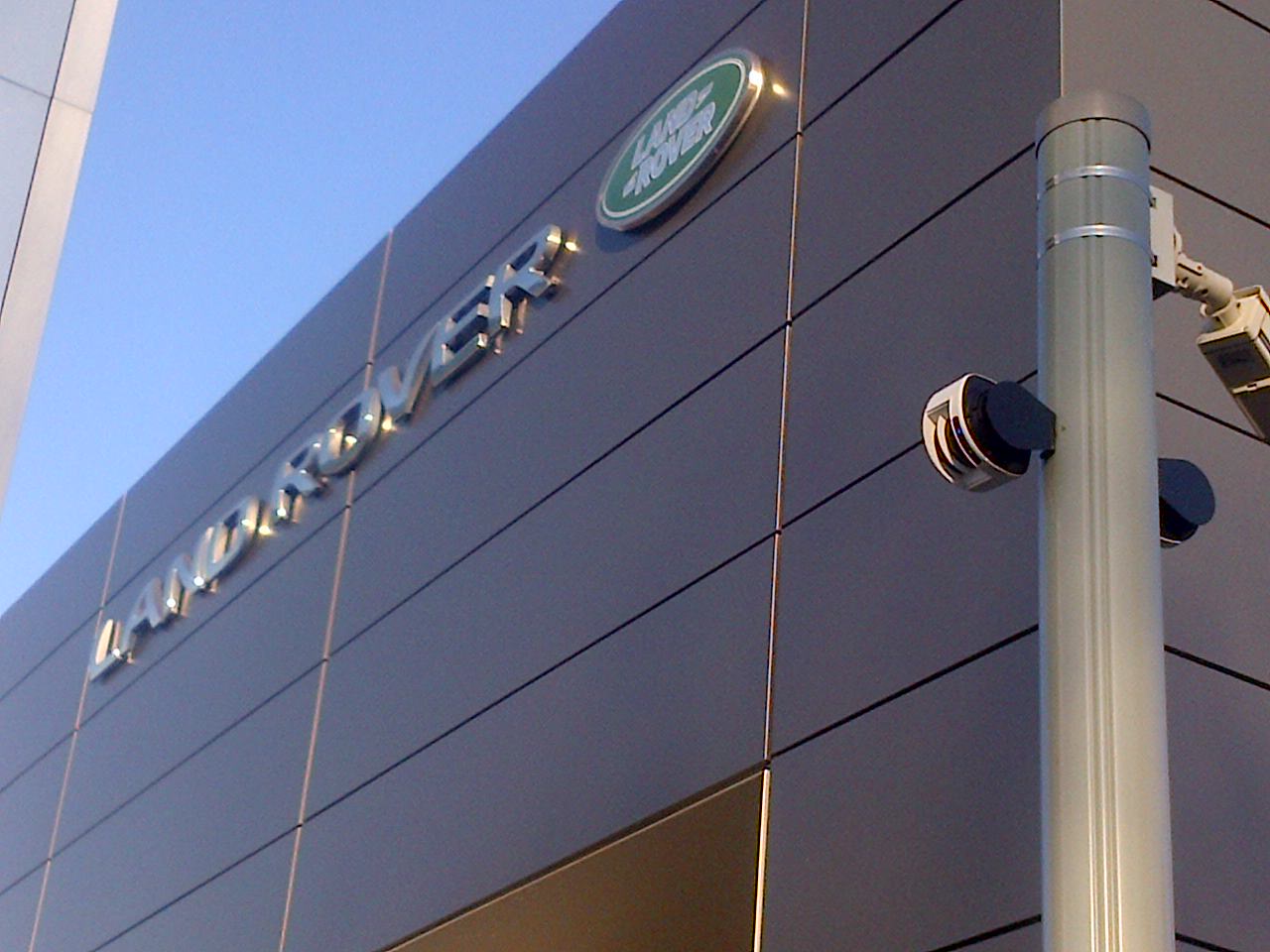

- Monitoring pedestrian and vehicle access points

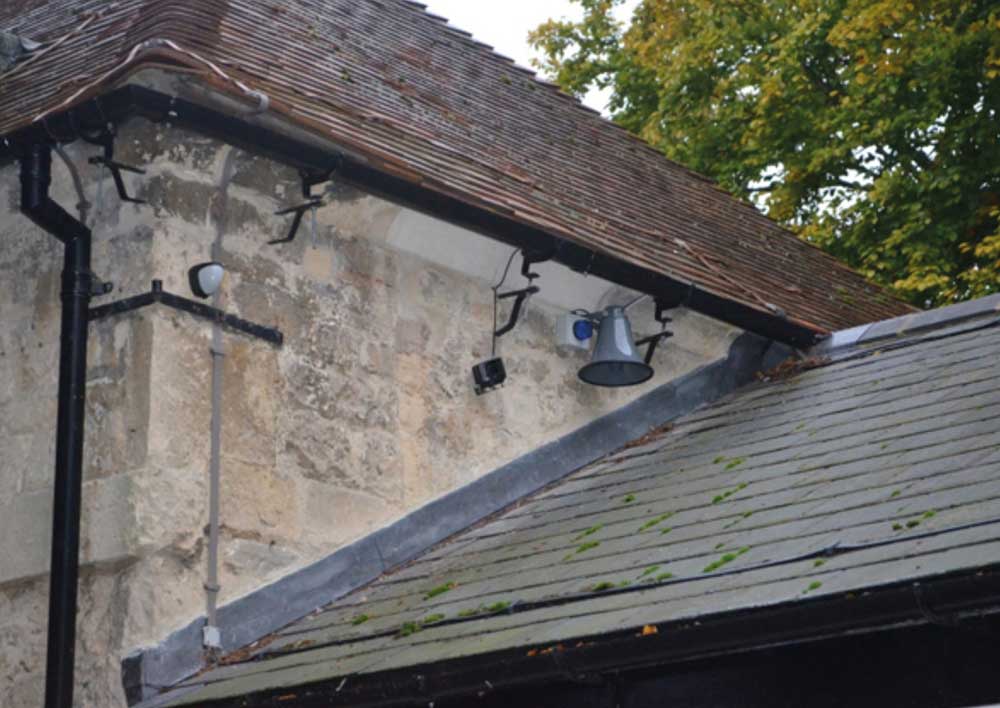

- Perimeter protection and intrusion detection
- Safeguarding works of art and masterpieces
- Protection against theft and vandalism
- Securing open sites
EASE OF INSTALLATION

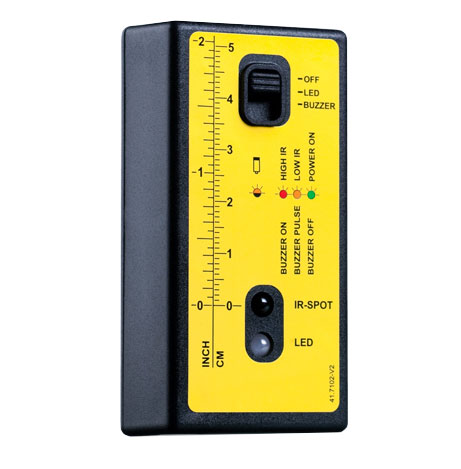

- 3 visible red LASER beams can be activated to align the detection surface and adjust the tilt and rotation angles
- Teach-in function: self-learning of both environment and background through an automatic adjustment of the detection planes

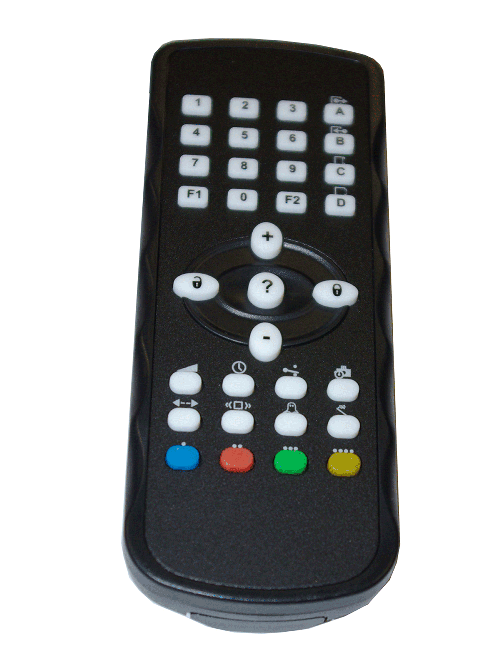

- Remote control to easily set the adjustable parameters
| TECHNOLOGY | Laser scanner, time-of-flight measurement |
| DETECTION MODE | Movement and presence |
| MAX. DETECTION RANGE | GJD500: 82ft x 82ft (25m x 25m) |
| ANGULAR RESOLUTION | 0.3516* |
| REMISSION FACTOR | >2% |
| TYP. MIN.TARGET SIZE | 0.06in @ 9.84ft / 1.37in @ 16.4ft / 2.75in @ 32.8ft / 6.88in @ 82ft (2.1cm @ 3m / 3.5cm @ 5m / 7cm @ 10m / 17.5cm @ 25m( (in proportion to object distance) |
| EMISSION CHARACTERISTICS IR LASER RED VISIBLE LASER | Wavelength 905 nm; max. output pulse power 75W (Class 1) Wavelength 650 nm; max. output CW power 3mW (Class 3R) |
| SUPPLY VOLTAGE | 10-35V DC @ sensor terminal |
| CABLE LENGTH | 32.8ft (10m) |
| POWER CONSUMPTION | < 5 W |
| PEAK CURRENT AT POWER ON: | 1.8 A (max. 80 ms @ 35 V) |
| RESPONSE TIME | Typ. 20 ms; max. 80 ms |
| OUTPUT MAX SWITCHING VOLTAGE MAX SWITCHING CURRENT | 2 electronic relays (galvanic isolated polarity free) 5V DC / 24V AC 80mA (resistive) |
| LED SIGNALS | 1 blue LED: power-on status, 1 orange LED: error status, 2 bicoloured LED’s: detection/output status (green: no detection. red: detection.) The LED’s can be switched off by remote control |

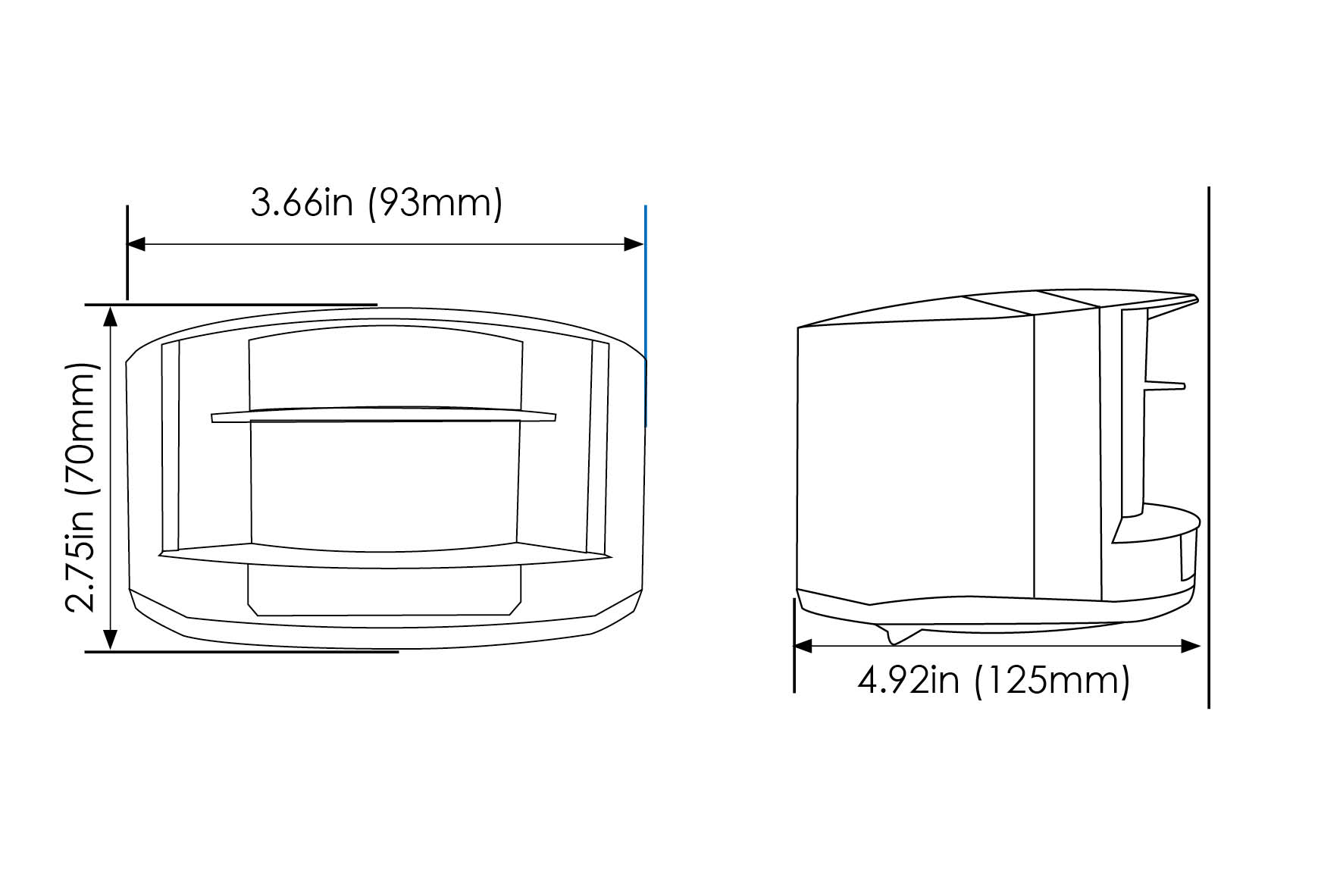

| DIMENSIONS | 4.92in x 3.66in x 2.75in (125mm x 93 mm x 70mm) (mounting bracket + 0.55in (14 mm) |
| MATERIAL | PC/ASA (colour: black or white) |
| ROTATION ANGLES ON BRACKET | -5˚ to +5˚ (lockable) |
| TILT ANGLES ON BRACKET | -3˚ to +3˚ |
| PROTECTION DEGREE | IP65 (avoid direct exposure to high pressure cleaning) |
| TEMPERATURE RANGE | -30˚C to +60˚C if powered / -10˚C to +60˚C unpowered |
| HUMIDITY | 0-95% non-condensing |
| VIBRATIONS | < 2 G |
| NORM CONFORMITY | 2006/95/EC: LVD; 2002/95/EC. RoHS; 2004/108/EC: EMC; EN 60529:2001, IEC 60825-1:2007 Laser Class 1 & 3R; EN 61000-6-2:2005 EMC – Industrial level; EN 61000-6-3:3006 EMC – Commercial level |
