Description
The GS100 beam set is an intelligent detector designed to be used in association with alarm annunciation equipment or other devices that provide a means of monitoring the GS100 voltage free relay alarm output, for example CCTV integration.

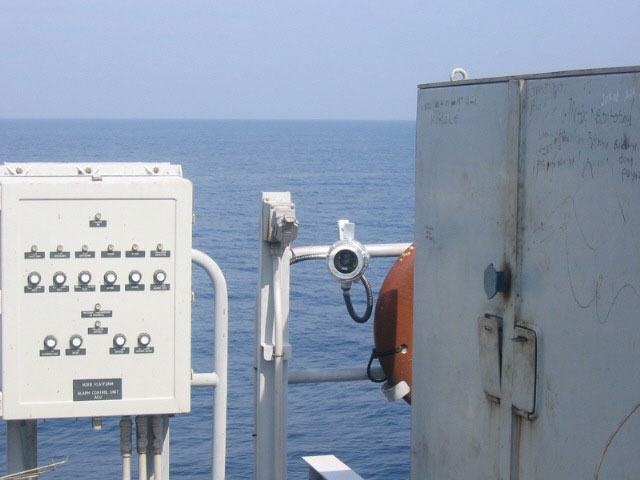

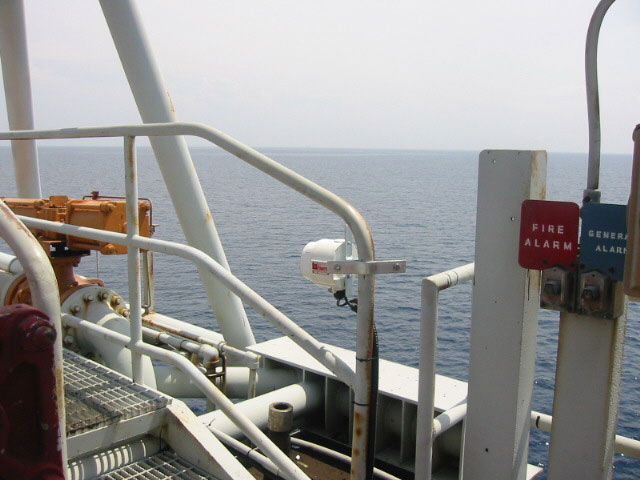

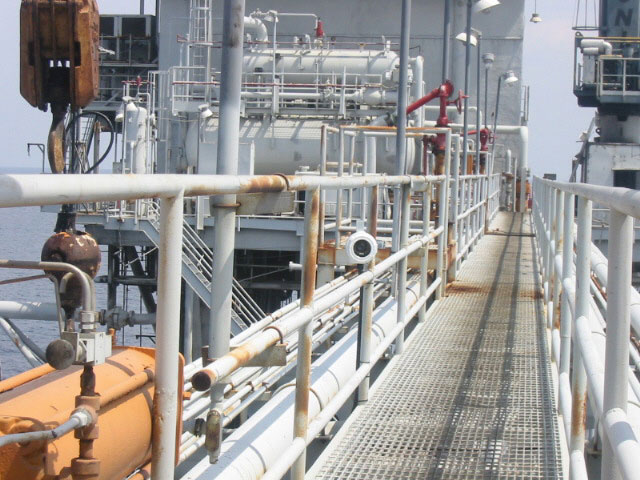

The GS100 IR beam set is ATEX certified and designed for use within the petrochemical and oil sectors, as well as other similar industries where an explosion, flame , weather or dust proof housing is required.
Features:
- ATEX approval Gases:Class I, Division 1 & Class I, Division 2
- Infra-Red
- IP66 rated
- 100m beam range
- TX/RX beam set synchronisation and asynchronous connection
- Pulse modulated
- Integral heater module
- Tamper switch
- Bioptical beam transmission system
Unique Benefits:
- Peace of mind that GS100 is suitable for hazardous areas
- Covert detection as the IR is invisible to the human naked eye
- Suitable for all weather conditions
- Long range detection
- High level security as it allows many sets of beams to be installed on the same site, or stacked above each other without ‘cross interference’
- Energy efficient
- Robust and helps combat the build-up of condensation
- Tamper will activate if vandalism occurs
- Stable and reliable device
| SPECIFICATIONS | |
| Transmitter | |
| Transmission | Dual beam |
| Protection Distance | 32.8ft x 328ft (10m – 100m) / with 75% attenuation |
| Input Voltage | Nominally 12Vd.c Min 10.5Vd.c Max. 15Vd.c (15mA) |
| Effective Transmitted Beam Angle | 6° approximately |
| Tamper Output | 1 x voltage free N/C contact: Max. rating 24V 1A 30VA |
| Heater Current | 125mA |
| IR Wavelength | 880nm |
| Dimensions | 6.29in x 5.74in x 5.39in (160 x 146 x 137mm) |
| Temperature Range | -20 °C +40 °C |
| Weather Protection | IP66 |
| Receiver | |
| Detection Type | Dual beam |
| Input Voltage | Nominally 12Vd.c Min 10.5Vd.c Max. 15Vd.c (40mA) |
| Alarm Output | 1 x voltage free change over contact: Max. rating 24V 1A 30VA |
| Response Time | > 20ms < 40ms |
| Dwell Time | 800ms |
| Horizontal Adjustment | +/- 15 degrees |
| Vertical Adjustment | +/- 15 degrees |
| Tamper Output | 1 x voltage free N/C contact: Max. rating 24V 1A 30VA |
| Heater Current | 125mA |
| Dimensions | 6.29in x 5.74in x 5.39in (160 x 146 x 137mm) |
| Synchronisation Modes | Synchronous connection & Asynchronous connection in both modes Synchronising Link monitoring is incorporated as standard |
| Temperature Range | -20 °C +40 °C |
| Weather Protection | IP66 |
