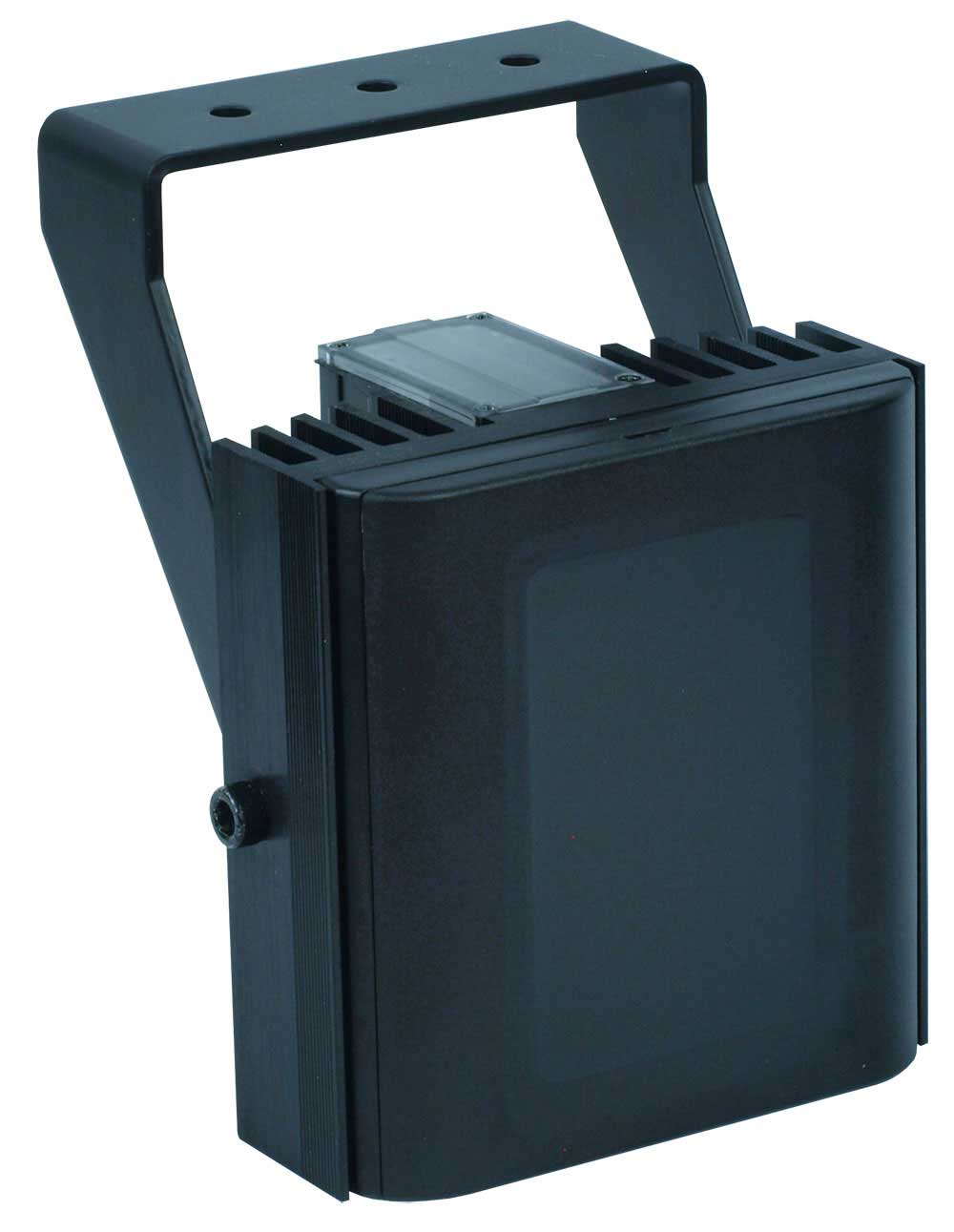

The Clarius Plus IP is a high performance Infra-Red illuminator. Incorporating the latest surface mount LED’s with enhanced optical output and outstanding reliability, they deliver excellent night-time images.
The Clarius Plus IP is a internet protocol connected illuminator with integrated web browser interface. The Clarius Plus IP range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects.
As standard the illuminator includes interchangeable lensing to deliver 10° circular, 30º, 60º & 95º elliptical beam profiles.
Features:
- IR Illuminator designed to provide dedicated lighting For IP cameras Via PoE+ (Power Over Ethernet)
- Angle 10º, 30º, 60º & 95º
- IEEE02at Compliant
- Secure web browser interface
- Direct integration with VMS systems
- Elliptical beam profiles
- Latest SMT Dual Core LED Technology
- Distances up to 614ft
- 850nm or 940nm wavelengths
- 5 year warranty
- IP66 weather proof rating
- Built-in photocell IR on/off
- Telemetry input for remote switching
- Vibration sensor
- CleanLITE self cleaning lens coating technology
| SPECIFICATION | |
| Medium Clarius IP Infra-Red LED Illuminator | |
| CONSTRUCTION | Robust high quality aluminium extrusion |
| PHOTOCELL | Adjustable 20 - 70 Lux |
| ILLUMINATION | Adjustable 10% - 100% |
| OPERATING TEMPERATURE | -50°C to 50°C (-58°F to 122°F) |
| MOUNT | Powder coated stainless steel wall mount |
| INPUT | PoE+ (IEEE802.3at) |
| CONSUMPTION | 25W |
| IP RATING | IP66 in accordance with EN60529;1992 |
| ELECTRONICS | High efficiency surface mount high power Dual Core LED’s with advanced, current limited, integral control circuitry |
| RECOMMENDED PSU | Any IEEE 802.3at Injector |
| REMOTE ACCESS | Web browser user interface. No software or installation needed |
