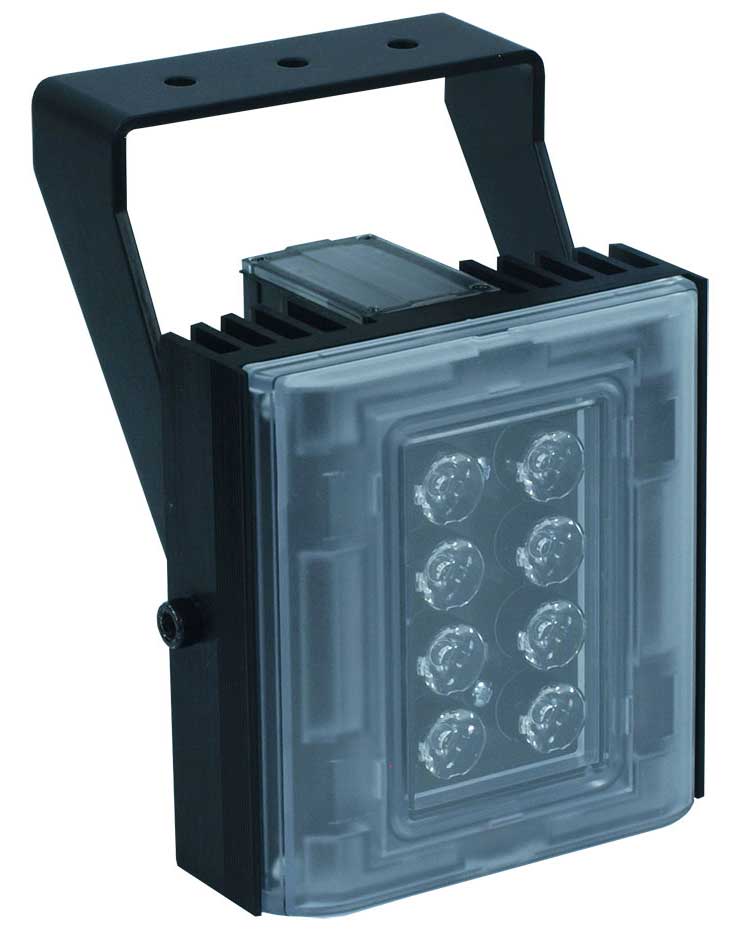

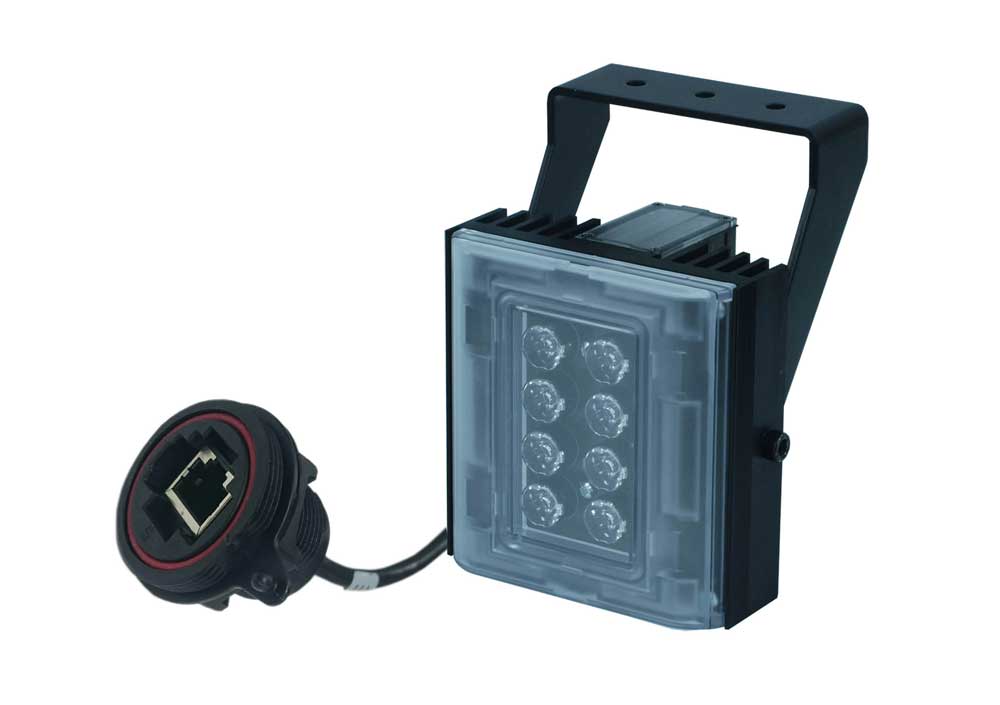

The Clarius Plus IP is a high performance White-Light illuminator. Incorporating the latest surface mount LED’s with enhanced optical output and outstanding reliability, they deliver excellent night-time images. The Clarius Plus IP is a internet protocol connected illuminator with integrated web browser interface.
The Clarius Plus IP range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects.
As standard the illuminator includes interchangeable lensing to deliver 10° circular, 30º, 60º & 95º elliptical beam profiles.
Features:
- White-Light illuminator designed to provide dedicated lighting for IP cameras Via PoE+ (Power Over Ethernet)
- Angle 10°, 30º, 60º & 95º
- Secure web browser interface
- Direct integration with VMS systems
- Elliptical beam profiles
- IEEE02at Compliant
- Latest SMT LED Technology
- Distances upto 374ft
- 5 Year Warranty
- IP66 weather proof rating
- Built-in photocell WL on/off
- Photocell following contact
- Telemetry input for remote switching
- Vibration sensor
- CleanLITE Self Cleaning Lens Coating Technology
| SPECIFICATION | |
| GENERAL | |
| Electronics | High Efficiency Surface Mount High Power LEDs With Advanced Current Limited Integral Control Circuitry |
| Construction | Robust High Quality Aluminium Extrusion |
| Front Window | Polycarbonate High Transmission Protective (Vandal Proof) with CleanLITE Technology |
| Finish | Black Anodised |
| Power Cable | 3m (9ft) |
| Interface Connector | Photocell Following Contact & Remote Telemetry Input |
| Pressure Equalisation Vent | Prevents Thermal Expansion & Pressure Cycling |
| Photocell | Software Adjustable 20 -70 Lux Illumination Software Adjustable 10% - 100% |
| Illumination | Software Adjustable 10% - 100% with Low power and pulse modes |
| Vibration/Knock sensor | Software adjustable sensitivity |
| Operating Temperature | -50° to 60°C (-58° to 140°F) |
| Weight | 1.05Kg (2.3lbs) |
| Mount | Powder Coated Stainless Steel Wall Mount |

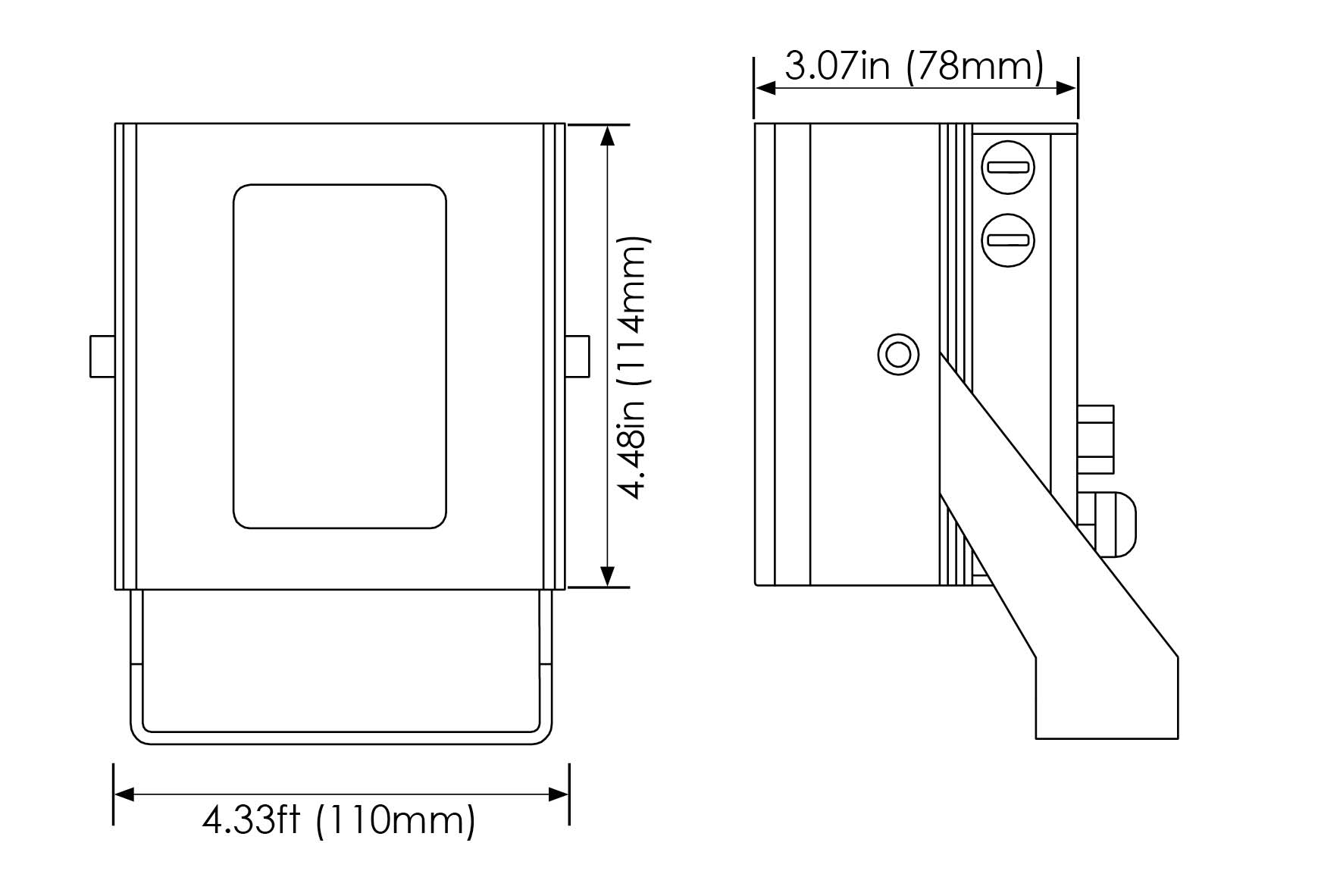

| Dimensions | 111 x 110 x 78mm (4.49” x 4.33” x 3.07”) |
| ELECTRICAL | |
| High Power over Ethernet | IEEE802at Compliant, TCP/IP |
| Consumption | 26W |
| User Interface | Web browser user interface. No software or installation needed |
| LIGHTING OUTPUT | |
| Lumen Output | 2300lm |
| Wavelength | Visible Spectrum (400-750nm) |
| Colour Temperature | 6500k |
| Colour Rendering Index | 74-80+ |
