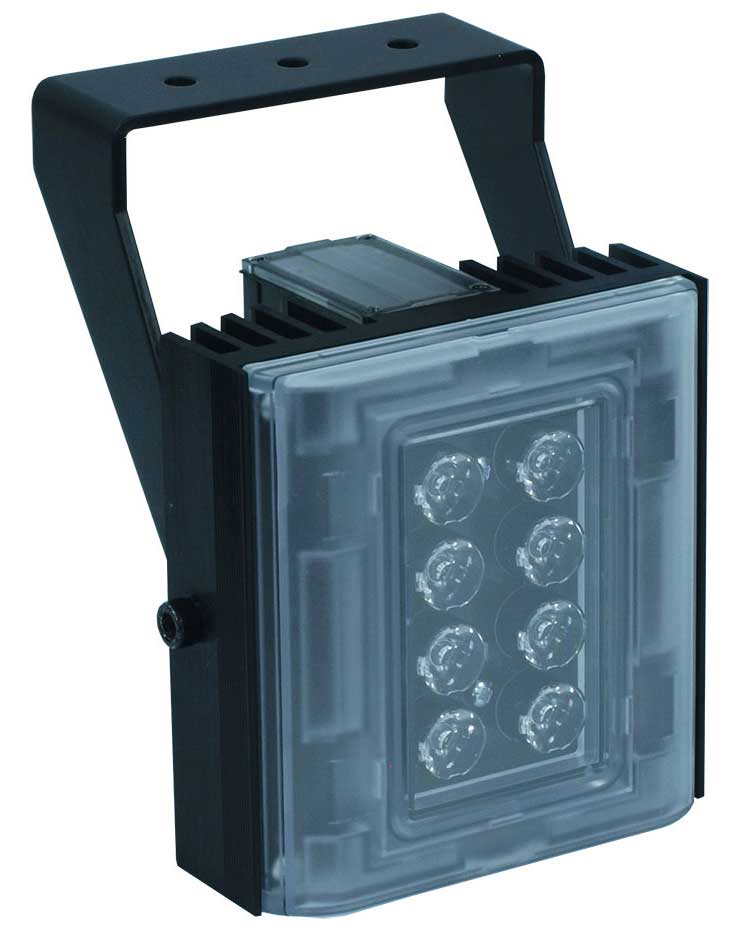

The Clarius PLUS range of high performance White Light LED illuminators are designed to provide class leading performance, long life and ultra low maintenance.
Incorporating the latest surface mount LED’s with enhanced optical output and outstanding reliability, they deliver excellent night-time images. Each unit is fitted with integrated control circuitry to carefully control LED output, delivering consistent illumination and projected working life in excess of 10 years.

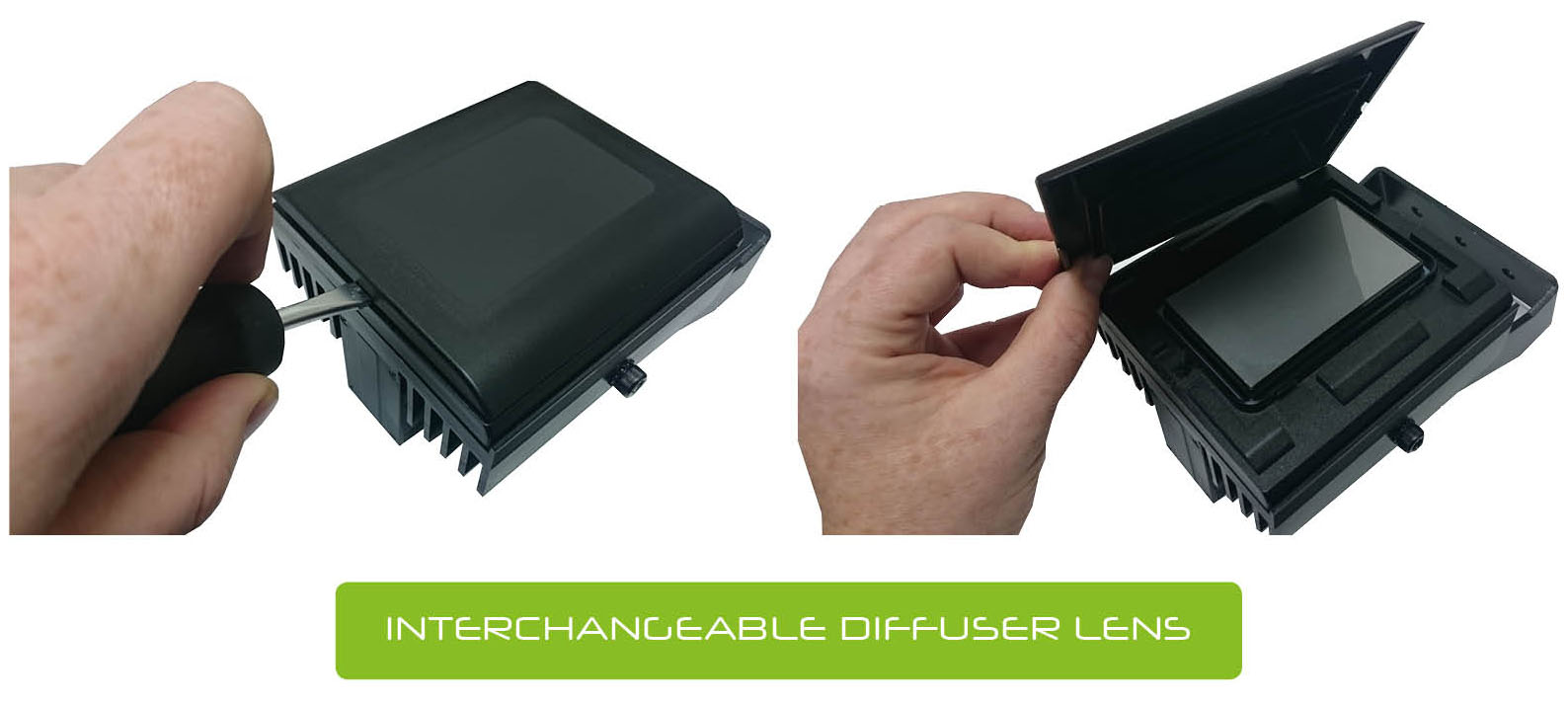

The Clarius PLUS range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects.
As standard the illuminator includes interchangeable lensing to deliver 10° circular, 30°, 60° and 95° elliptical beam profiles.
Features:
- WL Illuminator designed to provide dedicated lighting for IP cameras via PoE+ (Power Over Ethernet)
- Elliptical beam profiles
- Enable network infrastructure
- IEEE02at compliant
- Latest SMT LED technology
- Distances up to 374ft
- IP66 Weather proof rating
- Built-in photocell IR on/off
- Photocell following contact
- Telemetry input for remote switching
- CleanLITE Self cleaning lens coating technology
| SPECIFICATION | |
| GENERAL | |
| Electronics | High Efficiency Surface Mount High Power LED’s With Advanced Current Limited Integral Control Circuitry |
| Construction | Robust High Quality Aluminium Extrusion |
| Front Window | Polycarbonate High Transmission Protective (Vandal Proof) IR Filter with CleanLITE Technology |
| Finish | Black Anodised |
| Power Cable | 3m with RJ45 connector |
| Interface Connector | Photocell Following Contact & Remote Telemetry Input |
| Pressure Equalisation Vent | Prevents Thermal Expansion & Pressure Cycling |
| Photocell | Adjustable 20 -70 Lux |
| Illumination | Adjustable 10% - 100% |
| Operating Temperature | -50° to 50°C (-58° to 122°F) |
| Weight | 1.05Kgg (2.3lbs) |
| Mount | Powder Coated Stainless Steel Wall Mount |

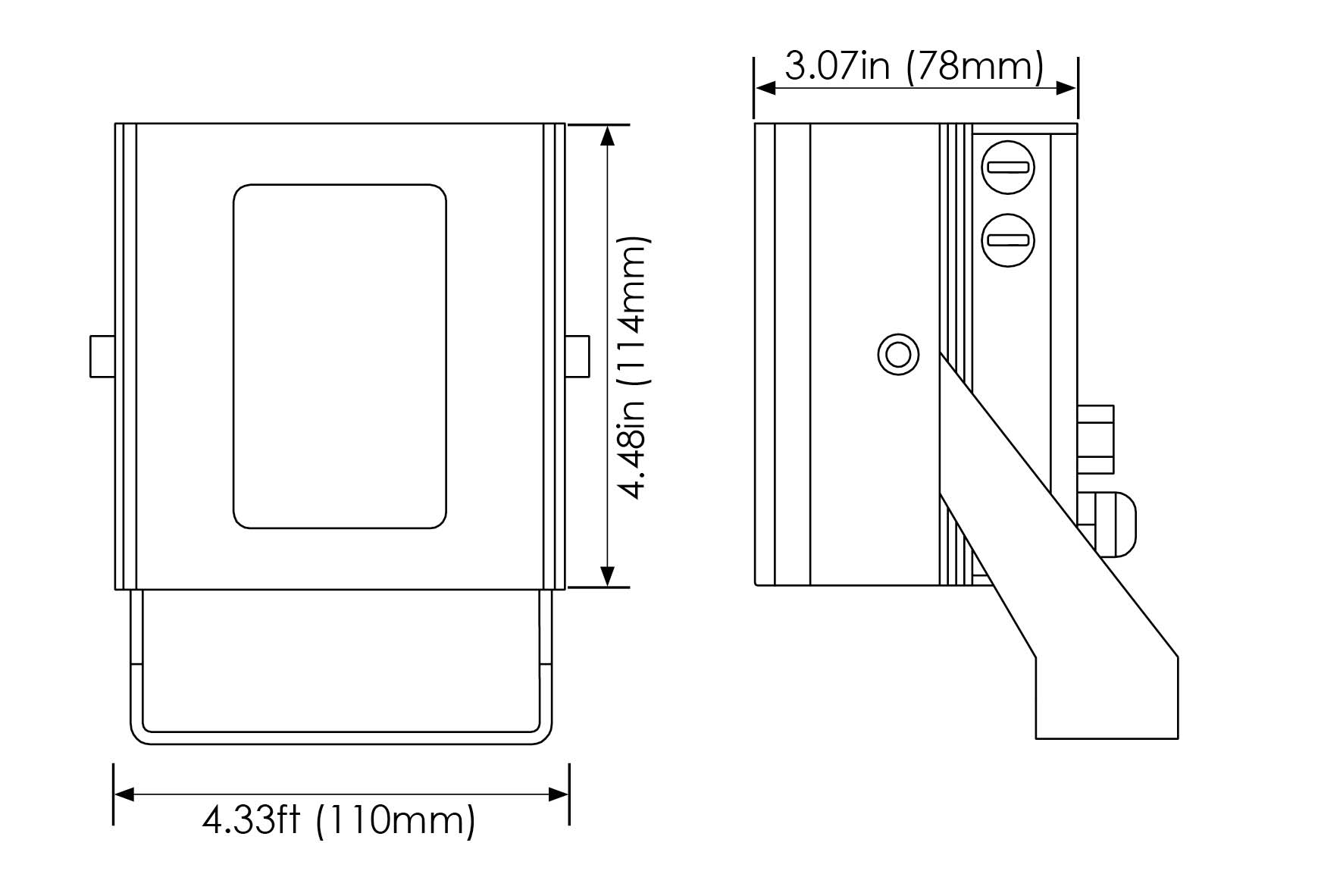

| Dimensions | 114 x 110 x 78mm (4.49” x 4.33” x 3.07”) |
| ELECTRICAL | |
| Power Over Ethernet | IEEE802.3af Compliant (PoE+) |
| Consumption | 26W |
| LIGHTING OUTPUT | |
| Lumen Output | 928lm |
| Wavelength | Visible Spectrum (400-750nm) |
| Colour Temperature | 6500k |
| Colour Rendering Index | 74-80+ |
