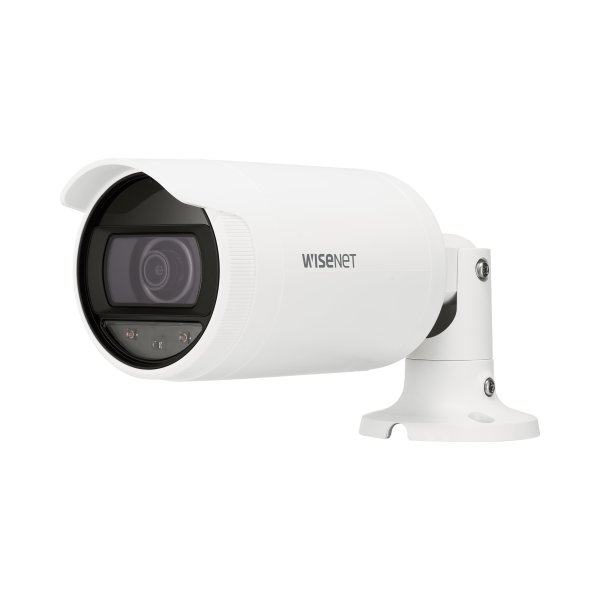

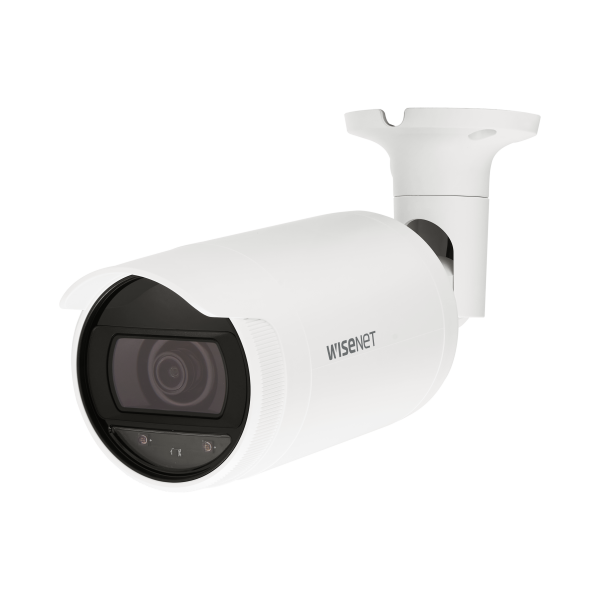

Hanwha - ANO-L6012R - 2MP IR Bullet Camera
Part number:
ANO-L6012R
Price:
Wisenet A Series bullet camera, 2MP @ 30 FPS, 2.8mm fixed focal lens, FoV H: 113.7° / V: 61.5°, WiseStream II, triple codec (H.265/H.264/MJPEG), 120dB WDR, IR LEDs 30m(98.43ft), day & night (ICR), virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), motion detection, tampering, hallway view, built-in SD card slot (1x32GB), IP66, PoE, white.
Features:
- 2 megapixel (1920 x 1080) resolution
- 2.8mm lens w/ 113.7° HFoV
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 30m
- IP66 support
| Video | |
| Imaging Device | 1 /2.8" CMOS |
| Resolution | 1920x1080 , 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 10fps(@2MP Max. 2fps) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8 mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 114° / V: 62° / D: 135° |
| Min. Object Distance | 0.5m(1.64 ft ) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0 °~360° / 0°~100° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4 ea, rectangler zones |
| Privacy Masking | 6 ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm Triggers | Analytics |
| Alarm Events | When alarm trigger occurred
|
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30 m(98.43ft ) |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.265/H.264: Target bitrate level control MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1 X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv 2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512 MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30 °C~+55°C(-22°F ~ +131°F) / 0~95% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30 °C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH |
| Certification | IP66 |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | Max 6.4W, Typical 5.0W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø78.0x262.0mm(ø3.07x10.31”), 390g(0.86lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.1m(82.28ft) |
| Observe (63PPM/ 19PPF) | 10.0m(32.91ft) |
| Recognize (125PPM/ 38PPF) | 5.0m(16.46ft) |
| Identify (250PPM/ 76PPF) | 2.5m(8.23 ft ) |
