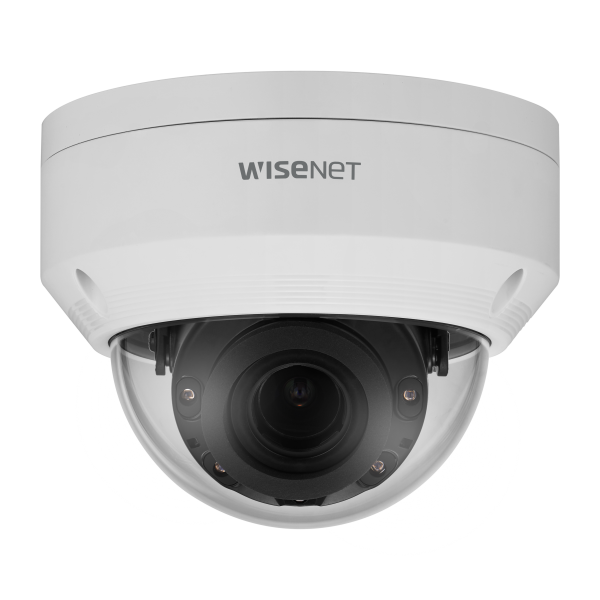

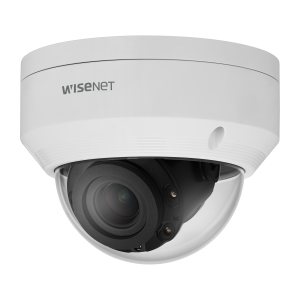

Wisenet A Series network vandal resistant IR Dome PoE Camera,, 4MP @ 30 FPS, 3.3~10.3mm(3.1x) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG), Wise Stream II, 120dBIR viewable length 30m (98.43ft), Day & Night (ICR), IVA, tampering, Motion detection, Defocus detection, Virtual line, SD card, Hallway View, IP66, IK10.
Features:
- 4MP resolution, Up to 30fps
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3.3 ~ 10.3mm motorized varifocal with Simple Focus
- IR viewable length: 30m (98.42ft)
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory 1 slot (Max. 128GB)
- IP66, IK10
| Specifications | |
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264 : Max. 30fps at 4M all resolutions MJPEG : Max. 15fps |
| Min. Illumination | Color : 0.1Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.3~10.3mm(3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide) ~ F3.3(Tele) |
| Angular Field of View | H: 94.8°(Wide) ~ 28.1°(Tele) V: 50.2°(Wide) ~ 15.8°(Tele) D: 112.9°(Wide) ~ 32.2°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90/270) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Streaming | Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 8.0W, typical 6.0W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø137.8x107.1mm(Ø5.43x4.22"), 550g |
| Compatible Conduit hole / Gangbox | None / Single, Double, 4" Octagon |
| Hanging Mount (Dome) | SBP-301HMW2 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 26.5m(87.07ft) / Tele: 70.3m(230.59ft) |
| Observe (63PPM/ 19PPF) | Wide: 10.6m(34.83ft) / Tele: 28.1m(92.24ft) |
| Recognize (125PPM/ 38PPF) | Wide: 5.3m(17.41ft) / Tele: 14.1m(46.12ft) |
| Identify (250PPM/ 76PPF) | Wide: 2.7m(8.71ft) / Tele: 7.0m(23.06ft) |
