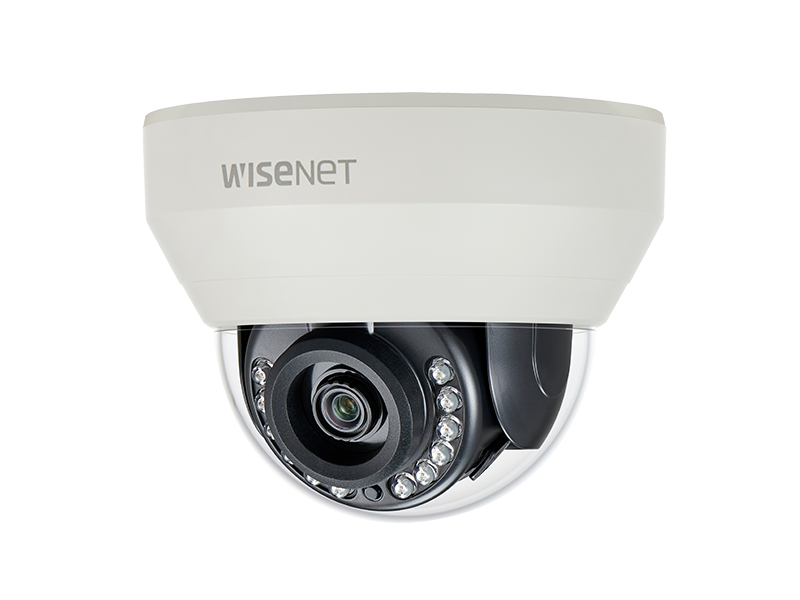

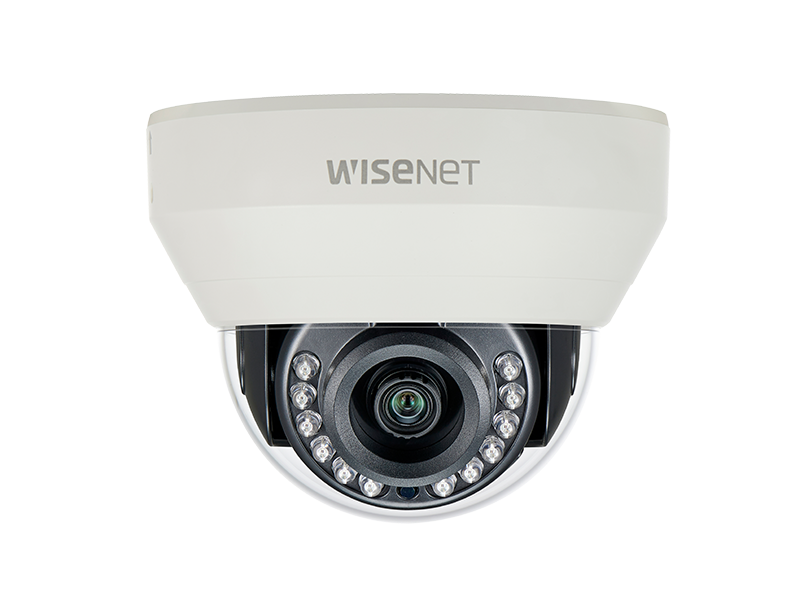

Wisenet HD+ 4MP IR indoor dome camera, AHD or CVBS formats are available, 6.0 mm fixed lens, true D/N, 12VDC, IR distance 98 feet
Not Compatible with HRX- Series DVRs
- 0.27 Lux@F2.0 (Color) (HCD-7020R/7030R),0 Lux (B/W : IR LED on)
- Built-in 6.0mm fixed lens
- Day & Night (ICR), DWDR, Motion detection
- IR Viewable Length 30m
- Transmission distance max.500m
- Easy installation (Plug & play)
| Model | HCD-7010R/7020R/7030RN/P | |
|
VIDEO |
||
|
Imaging Device |
1/3" 4M CMOS |
|
|
Total Pixels |
2,720(H) x 1,536(V) |
|
|
Effective Pixels |
2,688(H) x 1,520(V) |
|
|
Scanning System |
Progressive Scan |
|
|
Min. Illumination |
Color : 0.26 Lux (F1.8) (HCD-7010R), 0.27 Lux (F2.0) (HCD-7020R/7030R) B/W : 0 Lux (IR LED on) |
|
|
S / N Ratio |
52dB (AGC off, Weight on) |
|
|
Video Output |
BNC (AHD), Additional CVBS for installation (2Pin connector type) |
|
|
Resolution |
2560 x 1440 |
|
|
Max. Framerate |
30fps@4M |
25fps@4M |
|
PAN / TILT / ROTATE |
||
|
Pan / Tilt / Rotate Range |
0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
|
|
LENS TYPE |
||
|
Focal Length (Zoom Ratio) |
2.8mm fixed (HCD-7010R), 4.0mm fixed (HCD-7020R), 6.0mm fixed (HCD-7030R) |
|
|
Max. Aperture Ratio |
F1.8 (HCD-7010R), F2.0 (HCD-7020R/7030R) |
|
|
Angular Field of View |
H : 107.48° / V : 59.67° / D : 122.01° (HCD-7010R) H : 78.22° / V : 41.21° / D : 87.91° (HCD-7020R) H : 49.01° / V : 27.61° / D : 55.6° (HCD-7030R) |
|
|
Min. Object Distance |
0.5m (1.64ft) |
|
|
Lens Type |
Fixed |
|
|
Mount Type |
Board-in Type |
|
|
OPERATIONAL |
||
|
On Screen Display |
Multi-language Support(14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
|
|
Day & Night |
Auto (ICR) / Color / B/W |
|
|
Backlight Compensation |
Off / User BLC / HLC |
|
|
Wide Dynamic Range |
D-WDR (Off / On) |
|
|
Digital Noise Reduction |
2D DNR |
|
|
Motion detection |
Off / On (4 zones) |
|
|
Privacy Masking |
Off / On (2 zones rectangle) |
|
|
Gain Control |
Off / Low / Middle / High / Very High |
|
|
White Balance |
ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
|
|
Electronic Shutter Speed |
1/30sec ~ 1/12,000sec |
1/25sec ~ 1/12,000sec |
|
Reverse |
Off / H-Rev / V-Rev |
|
|
Remote Control Interface |
Coaxial |
|
|
Protocol |
AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) |
|
|
IR Distance |
20m (65.62ft) : HCD-7010R, 25m (82.02ft) : HCD-7020R 30m (98.43ft) : HCD-7030R |
|
|
500m (5C2V Coaxial cable) |
||
|
Video Transmission Distance |
||
|
ENVIRONMENTAL |
||
|
Operating Temperature / Humidity |
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
|
|
ELECTRICAL |
||
|
Input Voltage |
12V DC ±10% |
|
|
Power Consumption |
Max. 5.0W |
|
|
MECHANICAL |
||
|
Color / Material |
Ivory / Plastic |
|
|
Dimensions (WxH) |
Ø110.1 × 86.1mm (Ø4.33" × 3.39") |
|
|
Weight |
240g (0.53 lb) |
|
