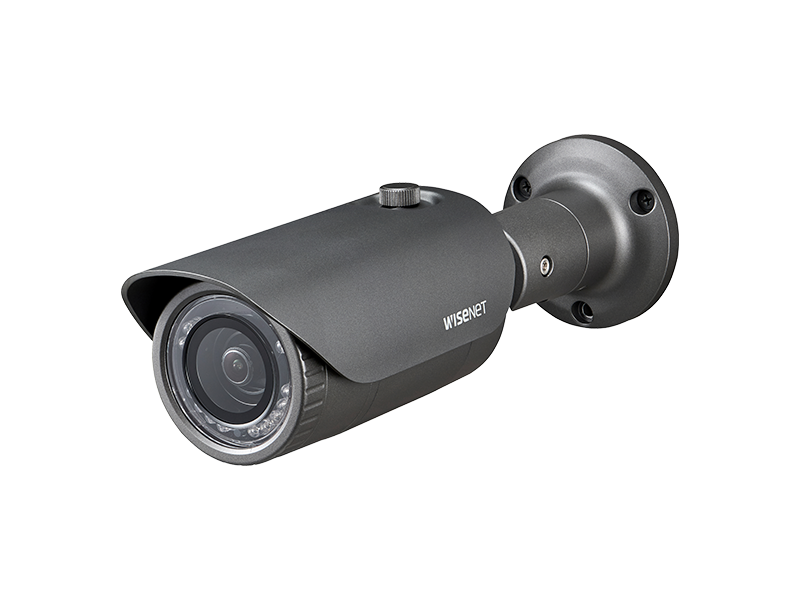

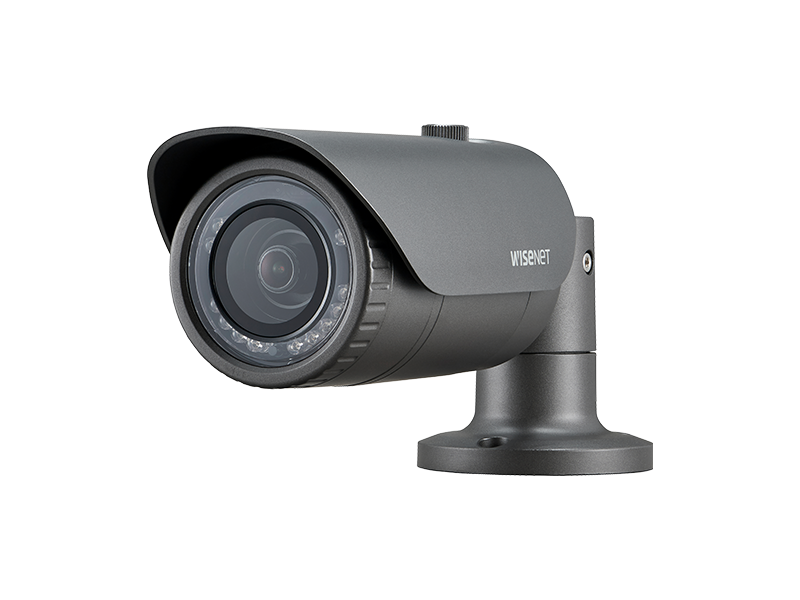

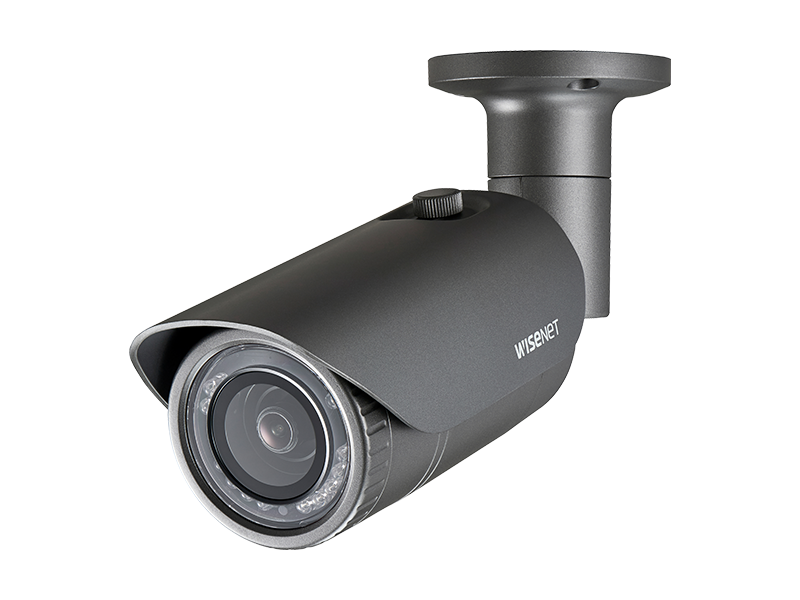

Samsung - HCO-7030R - 4MP Wisenet HD+ Bullet Camera
Wisenet HD+ 4MP IR bullet camera, AHD or CVBS formats are available, 6.0 mm fixed lens, true D/N, 12VDC, IR distance 98 feet, IP66/IK10
Not Compatible with HRX- Series DVRs
Part number:
HCO-7030R
Price:
- QHD (2560 x 1440, 30fps) resolution
- 0.27 Lux@F2.0 (Color),0 Lux (B/W : IR LED on)
- Built-in 6.0mm fixed lens
- Day & Night (ICR), DWDR, Motion detection
- IR Viewable Length 30m
- Transmission distance max.500m
- Easy installation (Plug & play), IP66, IK10
| TV Lines / Resolutions | 4MP |
| VIDEO | |
| Imaging Device | 1/3" 4M CMOS |
| Horizontal Resolution | 2560 x 1440 |
| Min. Illumination | Color : 0.26Lux (HCO-7010R) 0.27Lux (HCO-7020R/7030R) B/W : 0Lux (IR LED on) |
| Lens | 2.8mm Fixed (F1.8) (HCO-7010R) 4.0mm Fixed (F2.0) (HCO-7020R) 6.0mm Fixed (F2.0) (HCO-7030R) |
| IR Viewable Length | 20m (65.62ft) (HCO-7010R) 25m (82.02ft) (HCO-7020R) 30m (98.43ft) (HCO-7030R) |
| Angular Field of View | H : 107.48° / V : 59.67° / D : 122.01° (HCO-7010R) H : 78.22° / V : 41.21° / D : 87.91° (HCO-7020R) H : 49.01° / V : 27.61° / D : 55.6° (HCO-7030R) |
| Focus Control | Fixed |
| OPERATIONAL | |
| Day & Night | True (ICR) |
| Backlight Compensation | BLC / HLC / DWDR |
| Digital Noise Reduction | 2D DNR |
| Motion Detection | Support |
| Privacy Masking | 2 Zones |
| FEATURES | |
| Communication | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) |
| Environment Protection | IP66, IK10 |
| Operating Temperature | 30°C ~ +55°C (-22°F ~ +131°F) * Start up above -10°C (+14°F) |
| Power | Max. 5.0W (12V DC) |
| Dimensions (WxHxD) / Weight | Ø70.0 x 246.0 mm (Ø2.76" x 9.69") (Without sunshield) 670g (1.48 lb |
| Additional Features | Video Transmission up to 500m (5C2V Coaxial cable) |
Name
Description
Size
Downloads
File
Wisenet HD+ Brochure
5.3mb
File
Wisenet HD+ Fixed Lens Series User Manual
6.5mb
File
HCO-7010R Series Certification-1
0.2mb
File
HCO-7010R Series Certification-2
3mb
