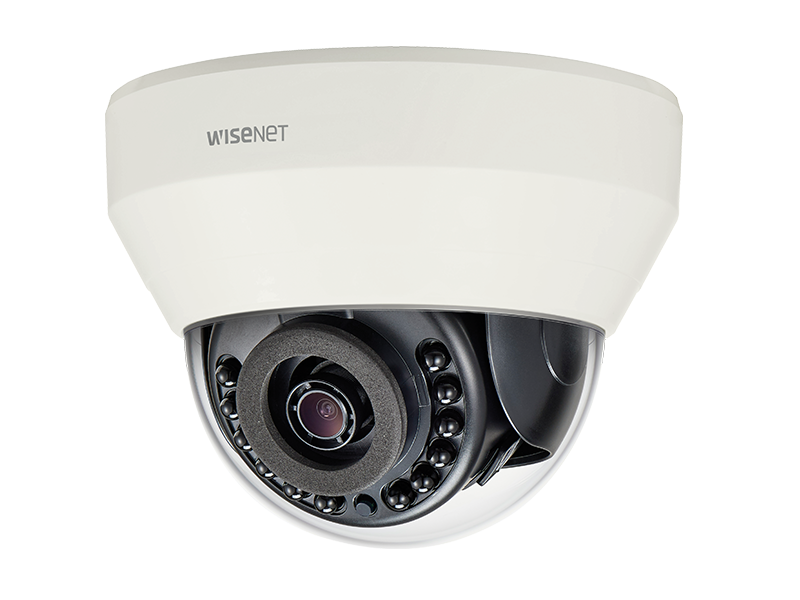

Hanwha - LND-6031R - 2MP IR Dome Camera
Part number:
LND-6031R
Price:
L series indoor dome camera, 2MP @ 30fps,6mm fixed focal lens (51°), Double codec H.264/MJPEG, Wisestream II, 120dB WDR, IR LEDs, hallway view, SD card, PoE.
Features:
- 2 Megapixel (1920 x 1080) resolution
- Built-in 6mm fixed lens
- 30fps@ all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 20m
| Technical Specifications | |
| Video | |
| Imaging Device | 1/2.9" 2.19M CMOS |
| Effective Pixels | 1,984(H) x 1,105(V) |
| Minimum Illumination | Color : 0.18Lux (F2.0), B/W : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 6mm fixed |
| Maximum Aperture Ratio | F2.0 |
| Angular Field of View | H : 51° / V : 29° / D : 58° |
| Focus Contro | Manual |
| Lens / Mount Type | Fixed / Board-in type |
| Operational |
| IR Viewable Length | 20m (65.62ft) |
| Camera Title | Off / On (Displayed up to 15 characters) |
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR (Off / On) |
| Motion Detection | Off / On (4ea polygonal zones) |
| Privacy Masking | Off / On (6ea rectangular zones) |
| Gain Control | Off / Low / Middle / High |
| LDC | Off / On (5 levels with min / max) |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Flip / Mirror / Hallway view |
| Alarm Triggers | Motion detection, Tampering detection, SD card error |
| Alarm events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 640 x 480, 640 x 360, 320 x 240 |
Name
Description
Size
Downloads
File
Specifications
0.3mb
File
Wisenet L Series Brochure
8mb
File
Wisenet L Series Quick Guide
6.4mb
File
LND-6031R A&E Specifications
0.1mb
File
LND-6011R/6021R/6031R/6071R Manual
6.3mb
