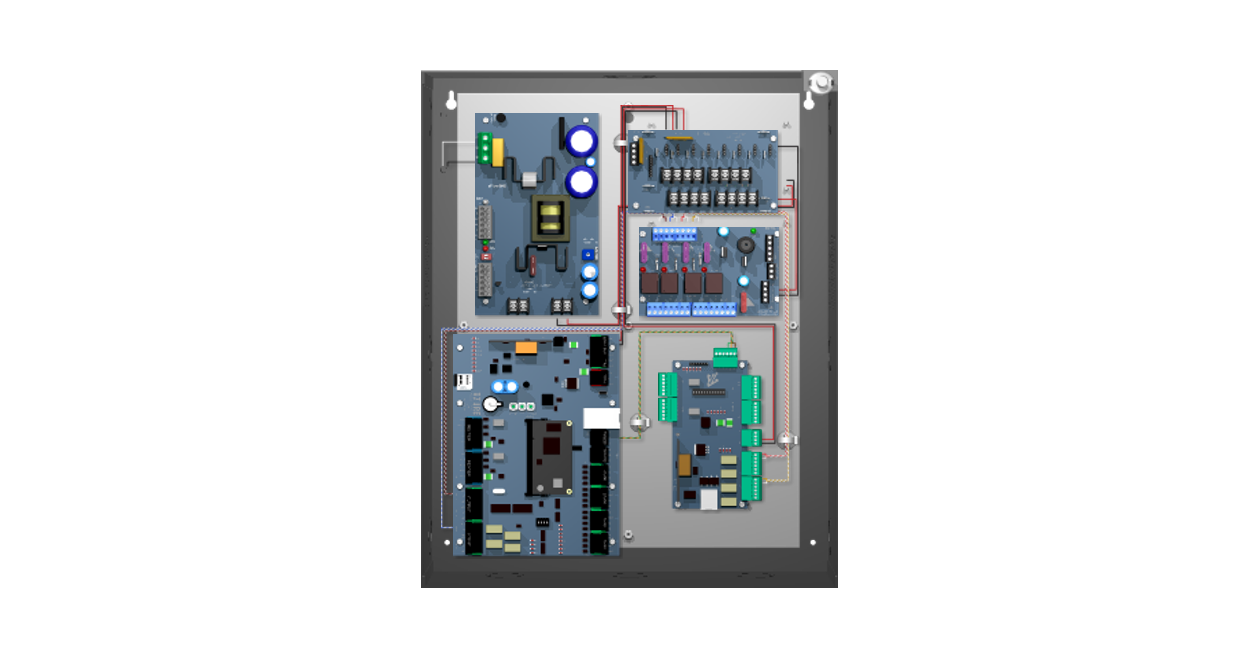

Hanwha - NOA-E1PW4 - Access and Power Integration Solution, 4-door kit, Prewired for 1 (2-Door Intelligent Controller (IC2) and 1 (Downstream Reader Interface Panel (RI2MS)), includes eFlow6NB power supply/charger (6A @ 12/24VDC, PDS8CB 8-output powe
Part number:
Price:
- • 4-door kit designed
- • Prewired for 1 (2-Door Intelligent Controller (IC2)) and 1 (Downstream Reader Interface Panel (RI2MS))
- • Includes eFlow6NB power supply/charger (6A @ 12/24VDC)
- • PDS8CB 8-output power distribution module (2.5A max per output, PTC protected)
- • VR6 voltage regulator (5–12VDC)
- • ACM4CB 4-relay access control module (2.5A max per output, PTC protected)
- • Dual-voltage outputs for controllers and locking devices
- • Factory-installed wire management and harness assemblies with terminal blocks
- • 16 AWG galvanized steel backplane
- • Convenient knockout configuration: 1 × 1.5" conduit, 9 × double knockouts for 3/4" & 1"
- • Supervision for AC fail, battery fail/presence, and FACP
- • Accommodates up to two 12VDC/7AH batteries
- • UL294, cUL s319-05, and CE compliant
- • Lifetime warranty on Altronix power supply/chargers and sub-assemblies
- • Dimensions: 18.0" × 14.5" × 4.625" (457.2 × 368.3 × 117.5 mm)
- • Controller and expansion panels sold separately
| POWER SUPPLY / CHARGER (eFLOW6NB) | |
|---|---|
| Input Fuse | 5A/250V |
| Current | 6A continuous |
| Input Voltage | 120VAC, 60Hz. 3.5A |
| Output Voltage | 24VDC |
| Auxiliary | 1A (unswitched) |
| Battery Charging Capacity | 7AH/12VDC (2 within enclosure) / 40AH/65AH (requires separate enclosure) |
| Type | Sealed lead acid or gel type |
| Failover | Upon AC loss, instantaneous (Batteries are sold separately) |
| Fire Alarm Disconnect | Supervised |
| EOL | 10K Resistor |
| Supervision AC Failure | From "C" contacts |
| Supervision Battery | From "C" contacts |
| Low DC Power Shutdown | Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply) Prevents deep battery discharge |
| Indicators (LED) AC Input | 120VAC is present |
| Indicators (LED) DC Output | 24VDC Is present |
| Indicators (LED) Battery | Discharged or not connected |
| VOLTAGE REGULATOR (VR6) | |
| Current | 6A continuous |
| Output | 12VDC |
| ACCESS POWER CONTROLLER (ACM4CB) | |
| Input Voltage | 24VDC from eFlow6NB |
| Input | 10A |
| Outputs Voltage | 24VDC |
| Outputs | Four (4) independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs Form "C" Relays rated 28VAC or VDC @ 2.5A b) Auxiliary power outputs (unswitched) c) Any combination of the above |
| Output PTC'S | 2.5A |
| Indicators (LED) Red LEDs | Outputs are triggered (relays energized) |
| Indicators (LED) Green LED | FACP disconnect is triggered |
| DUAL INPUT POWER DISTRIBUTION MODULE (PDS8CB) | |
| Input Voltage | 24VDC from eFlow6NB and 12VDC from VR6 |
| Input PTC's | 9A |
| Outputs Voltage | 12VDC and/or 24VDC |
| Outputs | • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2 • Individual outputs may be set to OFF position for servicing |
| Output PTCs | 2.5A |
| Indicators (LED) DC Output | Eight (8) individual output LEDs Green: 12VDC Red: 24VDC |
| NOA-E1PW4 KIT | |
| Agency Listings | All components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. |
| CE | European Conformity |
| Physical and Environmental | |
| Enclosure (H x W x D) | 18" x 14.5" x 4.62" (457.2mm x 368.3mm x 118.0mm) |
| Shipping (H x W x D) | 21.75" x 18.25" x 5.75" (552.5mm x 463.6mm x 146.1mm) |
| Product Weight | 16.23lb (7.36kg) |
| Shipping Weight | 20.23lb (9.07kg) |
| Temperature Operating | 0°C to 49°C (32°F to 120°F) |
| Temperature Storage | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity | 85% +/- 5% |
| BTU / Hr (Approx.) | 87 BTU/Hr. |
