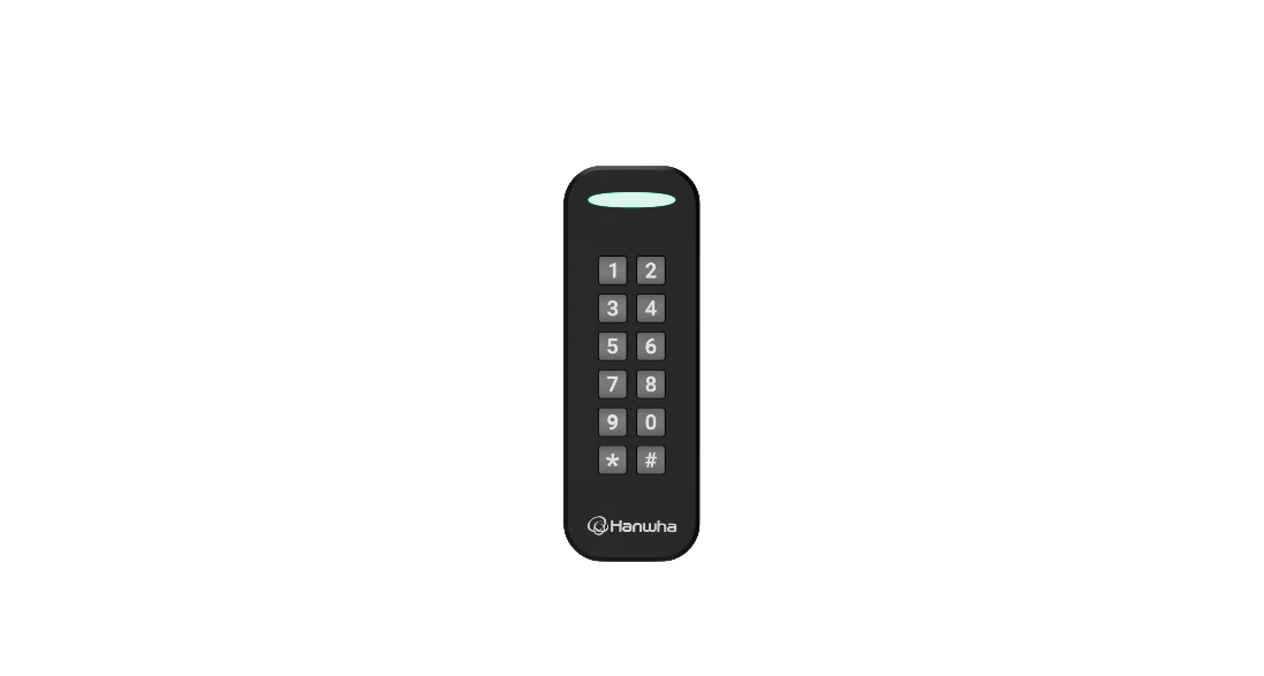

Hanwha - NOD-AX15S - Multi-technology mullion keypad reader, 13.56 MHz (NFC), 125 kHz (PROX), Bluetooth BLE 5.3, Auto-Detect for Wiegand or OSDP infrastructures, Remote firmware upgrade support for radio enable/disable and control sequencing, Support
Part number:
Price:
• 13.56 MHz (NFC), 125 kHz (PROX), Bluetooth BLE 5.3
• Auto-Detect for Wiegand or OSDP infrastructures
• Remote firmware upgrade support for radio enable/disable and control sequencing
• Supports all Ethos-supported credentials (NFC, PROX, Bluetooth)
• 10-key mechanical keypad
• Accelerometer-based tamper detection
• Typical read range: 2 inches
• EAL6+ Secure Element
• IP65 or better
• Power: 5–24 VDC
• Current draw: 500 mA @ 12 VDC
• Dimensions: 5.25" x 1.81" x 0.93" (133.4mm x 46mm x 23.5mm)
• Regulatory compliance: FCC, IC, CE, UL294, OSDP Verified V2.2
• Plastics: UL94-V0, UL746C-F1 for UV/water resistance
• Lifetime warranty
• Made in USA
| Colors | Black |
| Current | 500ma @ 12VDC |
| Voltage | 5 - 24 VDC |
| Temp Range | -35 to 66°C and EN-40 to 70°C and 95% humidity |
| Typical Read Range | 2" |
| Dimensions | 5.25"L x 1.81"W x 0.93"T (133.4L x 46mmW x 23.5mmT) |
| Country of Origin | USA |
| Warranty | Lifetime |
| Security Rating | EAL6+ Secure Element |
| Regulatory Compliance | FCC and IC Certified CE DoC with EN 62368-1:2014 and related EMC/Spectrum tests UL294 OSDP Verified to V2.2IP65 or better Plastics: UL94-V0, UL746C-F1 for UV/water resistance |
Name
Description
Size
Downloads
File
NOD-AX15S_Datasheet_EN.pdf
0.5mb
File
NOD-AX15S_Submittal-Sheet_v2.pdf
0.5mb
File
WaveLynx_Manual-1_1.pdf
1.1mb
