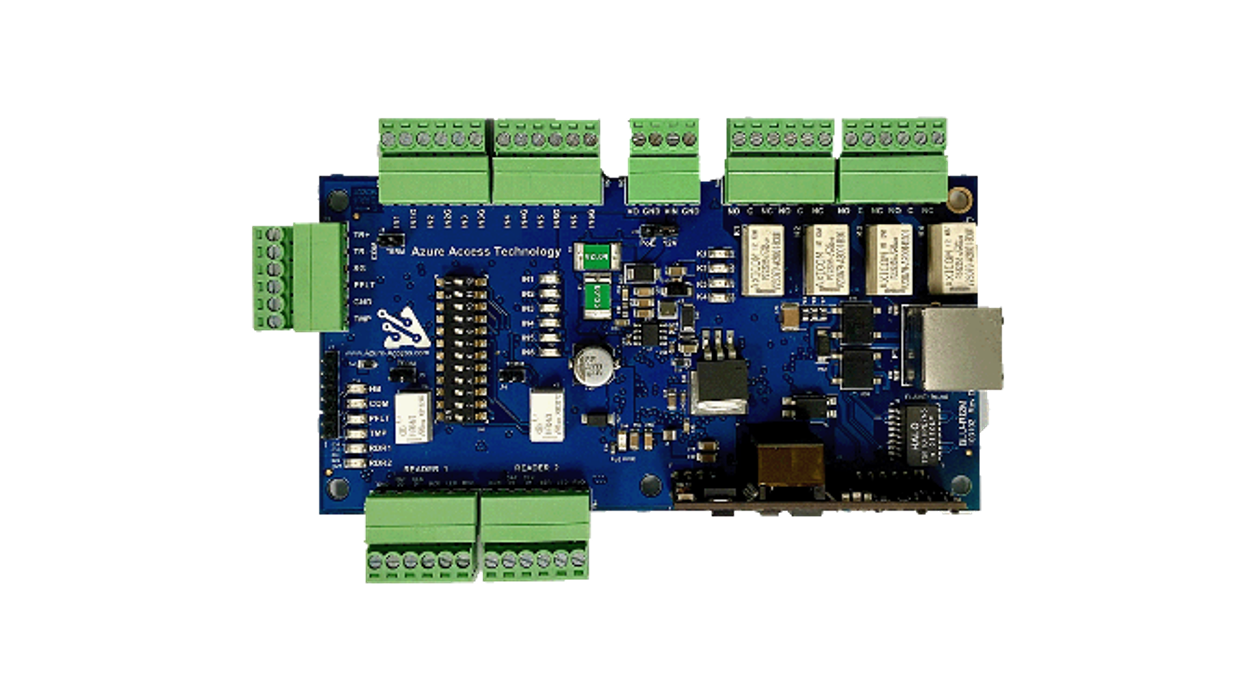

Hanwha - NOP-RI2MS - A downstream reader-interface panel supporting (2) Wiegand/OSDP reader ports, (6) High Precision Supervised alarm inputs, (2) Unsupervisered Dedicated Inputs, and (4) Form-C relay outputs. (1) Serial Port with communication with
Part number:
Price:
• 2 Wiegand/OSDP reader ports
• 6 High Precision Supervised alarm inputs
• 2 Unsupervised Dedicated Inputs
• 4 Form-C relay outputs
• 1 Serial Port with communication with NOP Series IC controllers
• Encrypted data transfer
• Offline event buffering
• Advanced access control abilities
• Power input: 12VDC
• Enclosure-mount form factor
| Operating Temperature | -40°C~+80°C (-40°F~+176°F) |
| Weight | 0.28lbs (126 Grams) |
| Dimensions | 5.4" x 2.75" x .88" (137.2mm x 69.9mm x 22.35mm) |
| Regulatory Compliance | CE Compliant, UL 294, 294B, 2610, 1076, ULC / ORD C1076 & 60839-11-1, FCC Part 15 Class A RoHS |
| SECURITY | |
| Security | • Secure Boot • Firmware & Data Encrypted-at-rest • OSDP Secure Channel with custom keys • AES 128/256 - SHA256 |
| ONBOARD I/O | |
| Reader Ports | 2 - Reader Ports supporting Wiegand Readers or up to (2) OSDP Readers per port Open-Collector Buzzer Output (1) LED Control Signal • 2-wire LED support when re-purposing buzzer |
| Serial Port | 1 - Upstream, RS485 Serial Comm Ports • Multi-drop up to 16 IO and/or Reader Interface Boards • 9,600 to 115,200 baud rate • 2-Wire Interface |
| Dipswitch Bank | 1 - Dip Switch Bank for configuring Hardware Interfaces & Serial Comms |
| Output | 4 - Form-C Relay Outputs 2A @ 30VDC MAX rating |
| Unsupervised Inputs | 2 - Unsupervised Inputs for Cabinet Tamper & Power Failure |
| Supervised Inputs | 6 - Supervised or Unsupervised Configurable Inputs • Supervised high-precision inputs with hardware and software filtering to eliminate false alarms |
| POWER | |
| Input Power (VIN) | 12VDC; 190mA typical MAX current Full Load Current (2.19A Max) |
| Reader Port Power (Fuse Protected) | VIN Passthrough with 500mA MAX per port |
| AUX Port Power (Fuse Protected) | VIN Passthrough: 1A Max Current |
| ASSOCIATED PRODUCTS | |
| NOC-RIMP | Auxiliary metal mounting bracket with standoffs designed for secure installation of the NOP-RI2MS in a standard triple-gang box Dimensions of 5.5" x 3.63" x 0.5" (139.7mm x 92.2mm x 12.7mm) |
