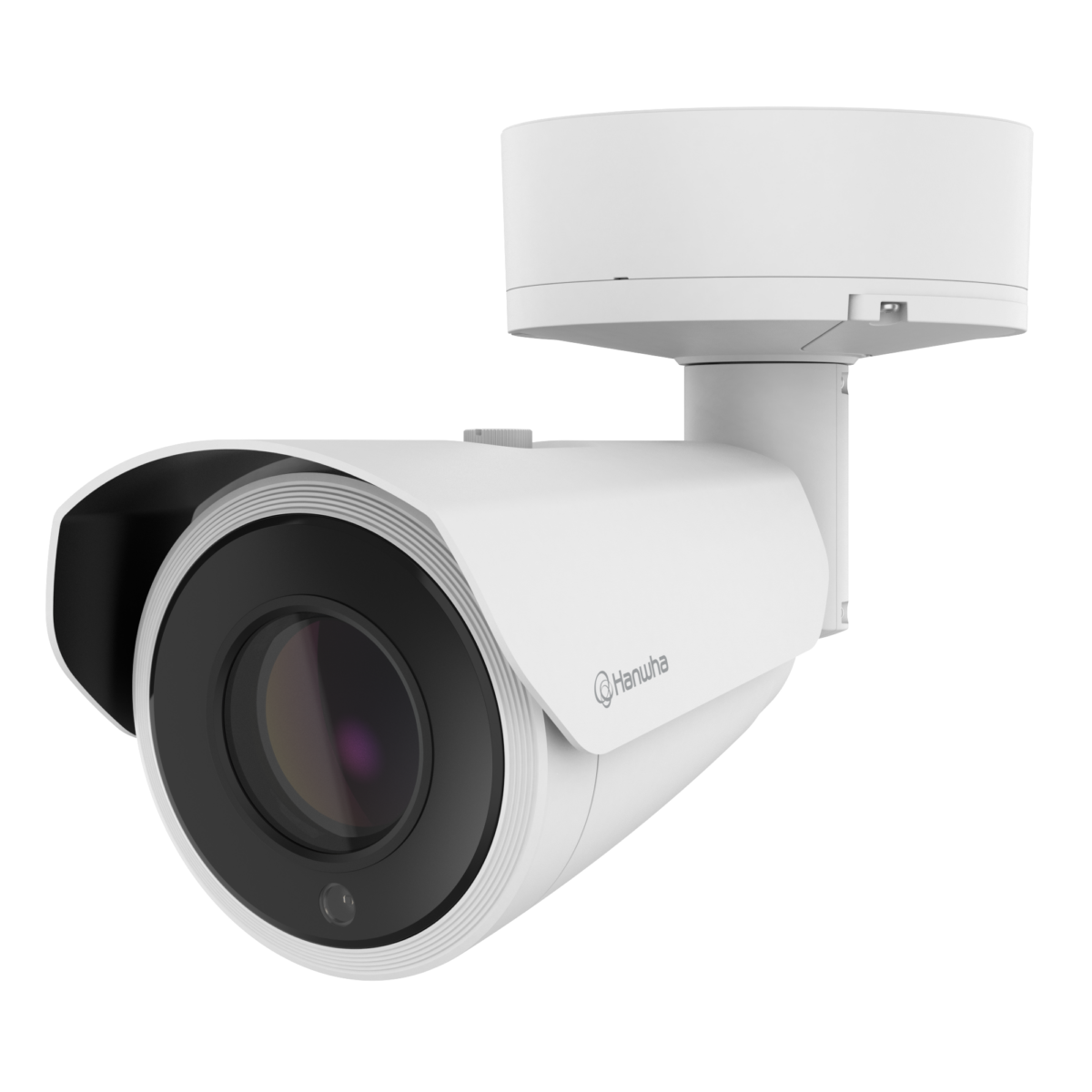

4K, AI IR Zoom (31x), Bullet Camera with Wisenet Road AI
Features:
- 4K Low- Moderate Speed dedicated LPR Bullet Camera with Wisenet Road AI
- Max. 4K resolution @ 30FPS
- 0.05Lux@F1.6 (Color)
- 0Lux (B/W, IR LED on)
- WiseIR for LPR plate reads for approx. 200ft (61m)
- Day & Night(ICR)
- 6.91~214.64mm (31x) zoom lens
- WDR(120dB)
- H.265, H.264, MJPEG codec
- WiseStreamⅡ, WiseStream Ⅲ (Using AI engine)
- Operating temperature: -40°C~+55°C(-40°F ~ +131°F)
- Power: PoE+/12VDC
- Metal shielded RJ-45
- IP66/IP67, IK10, NEMA4X
- Road AI, LPR application is pre-installed and licensed on the camera that provides LPR + MMCR (Make, Model & Color*) Recognition on the Edge (* Color recognition only during day time)
| Video | |
| Imaging Device | 1 /1.8" CMOS |
| Resolution | 3840x2160 , 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720 , 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps |
| Min. Illumination | Color: 0.075Lux(F1.36, 1/30sec, 30IRE) BW: 0.0075Lux(F1.36, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 6.91~214.7 mm (31x) motorized varifocal |
| Max. Aperture Ratio | F1.36(Wide)~F4.6(Tele) |
| Angular Field of View | H: 60.92°(Wide)~2.2°(Tele) V:35.26°(Wide)~1.24°(Tele) D:69.18°(Wide)~2.52°(Tele) |
| Min. Object Distance | 3 m(9.84ft ) |
| Focus Control | Simple focus |
| Lens Type | P iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8 ea, polygonal zones |
| Privacy Masking | 3 ea, rectangle zones - Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90/270) |
| Analytics | Defocus/ Motion/ Tampering/ Audio/ Shock detection, Sound classification |
| Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA ) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events |
|
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED (850nm) |
| IR Viewable Length | WiseIR 70m(229.66ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1 X Authentication(EAP-TLS, EAP-LEAP ) Device Certificate(Hanwha Techwin Root CA) TPM 2.0 with FIPS 140-2 level2 Secure boot, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Techwin Root CA) |
| Secure Storage | TPM, SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot (32GB Card preinstalled) |
| Memory | 4096 MB RAM, 1024MB Flash |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40 °C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -50 °C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| EPA(Effective Projected Area) | 0.039 m 2 |
| Certification | IP66/IP67, IK10, NEMA4X |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE+: Max 25.5W, typical 14.0W 12 VDC: Max 24.0W, typical 12.7.W |
| Mechanical | |
| Color / Material | White / Aluminum Hard-coated window |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø136.2x358.7mm(ø5.36x14.12")(Without sunshield), 3200g(7.05lb) * backbox: ø160mm(ø6.30") |
| Compatible Conduit hole / Gangbox | 19.1 mm(3/4" )(M25) single, double, 4" octagon, 4" square |
| Certifications & Standards |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/67, IEC/EN 62262 IK10 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 130.6m(428.4ft) / Tele: 4,000m(13,122ft) |
| Observe (63PPM/ 19PPF) | Wide: 52.2m(171.4ft) / Tele: 1600m(5,249ft) |
| Recognize (125PPM/ 38PPF) | Wide: 26.1m(85.7ft) / Tele: 800m(2,625ft) |
| Identify (250PPM/ 76PPF) | Wide: 13.1m(42.8ft) / Tele: 400m(1,312ft) |
| Wisenet Road AI LPR/ANPR/MMCR | |
| Solution | City Traffic |
| Speed Description | High Speed |
| Lane Coverage | Up to 2 lanes (5m/18ft Wide) |
| Speed limit | Up to 100kmh (65mph) |
| Min. Forward Distance | 18 m (60ft ) |
| Max. Forward Distance | 75 m (250ft ) |
| Max. Horizontal Angle | 25 ° |
| Max. Vertical Angle | 25 ° |
| Horizontal Offset | Up to 12m (24ft) |
| Camera Height | Up to 12m (24ft) |
| Vehicle Recognition | Make : 70+ Makes Model : 600+ models Color : 11 colors |
