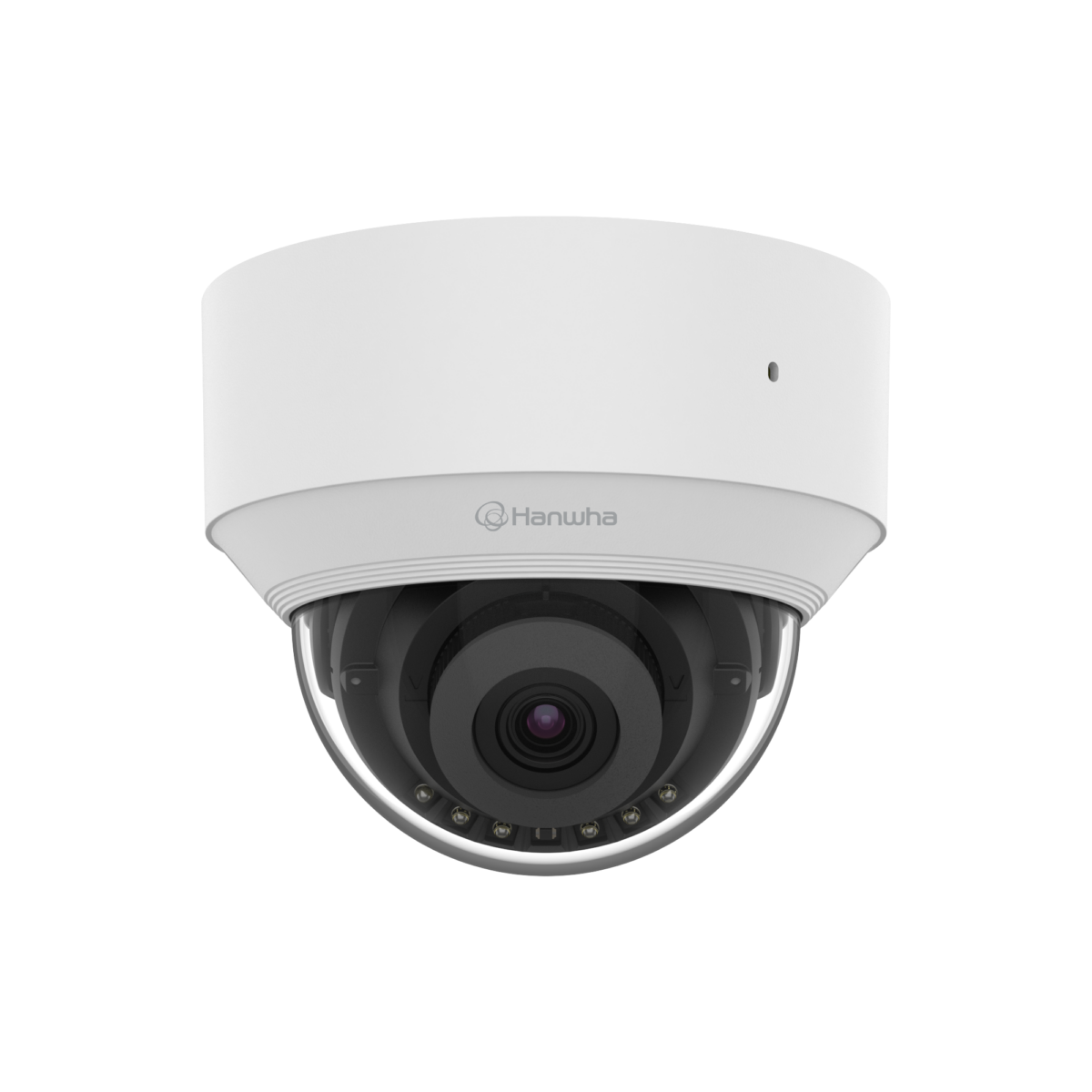

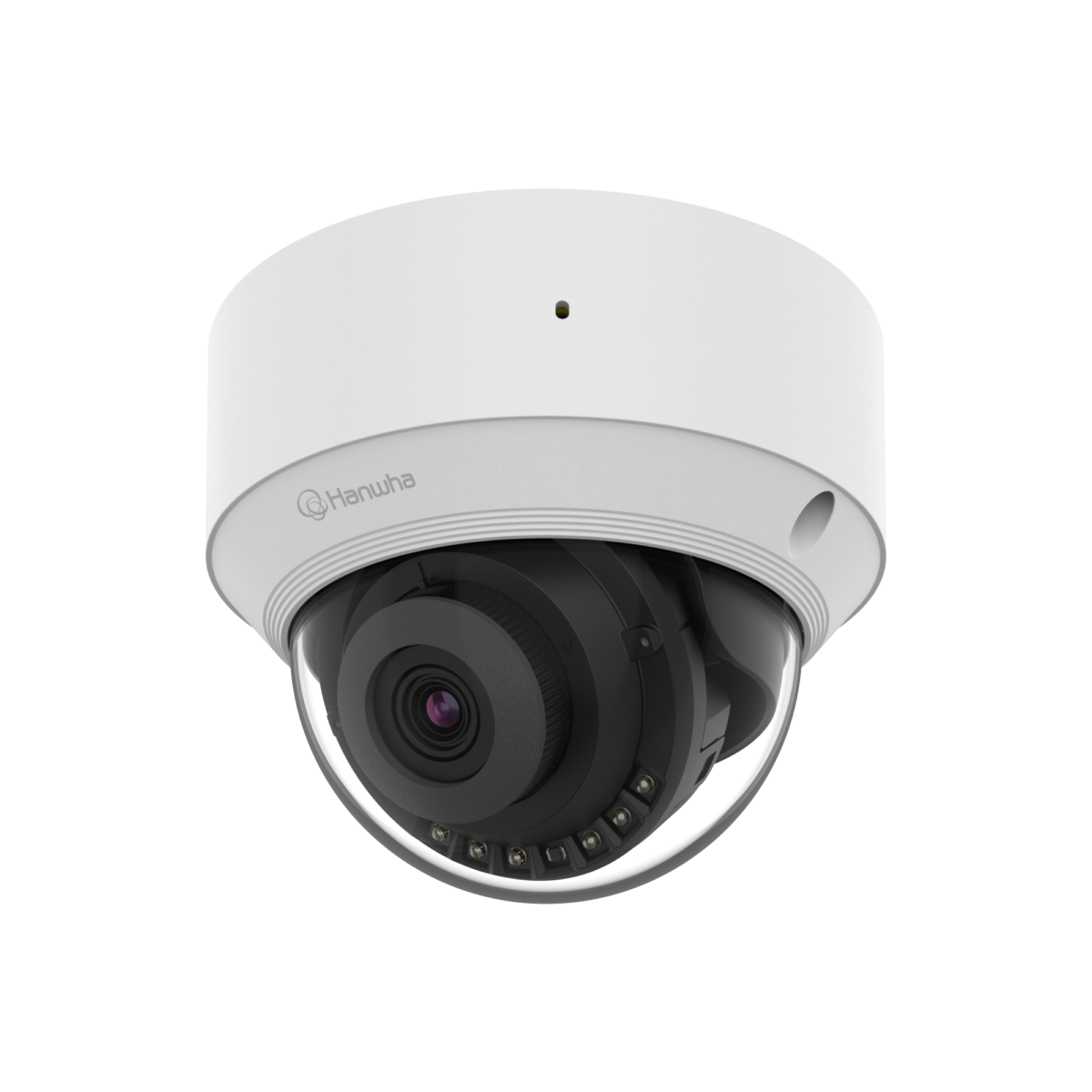

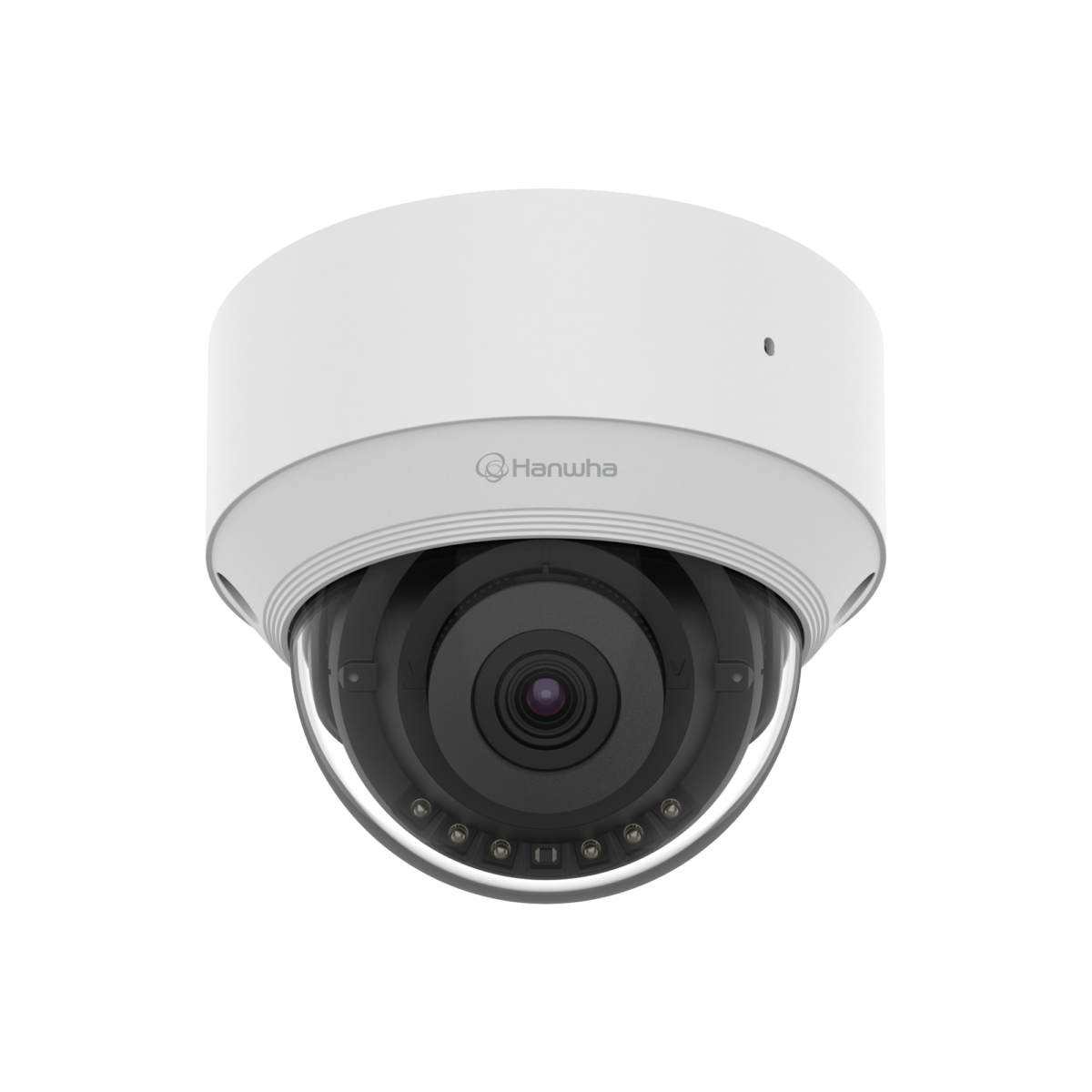

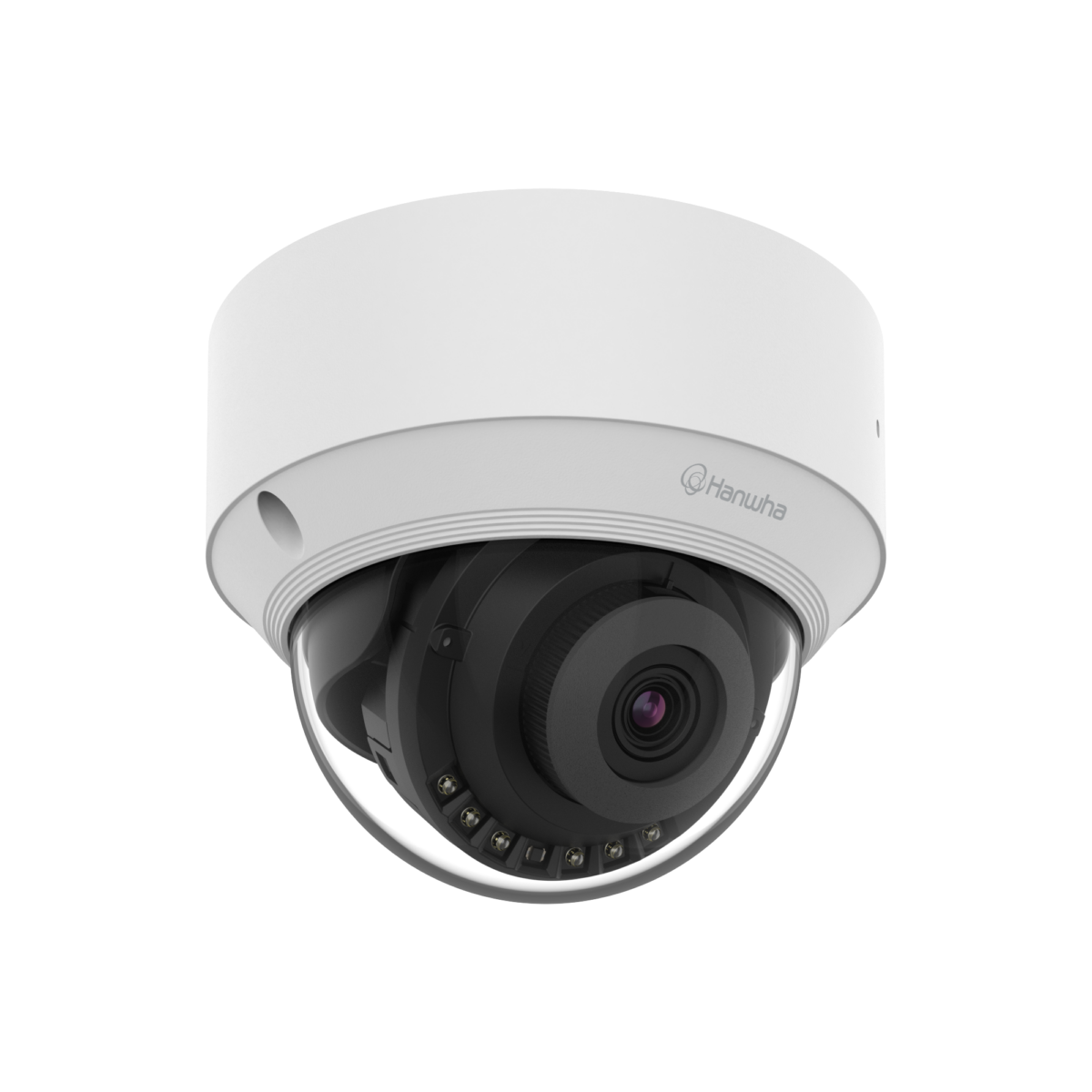

5MP IR Indoor Dome AI camera
Intelligent security. Effortless setup.
Introducing the new Q Series AI 5MP Fixed cameras, featuring advanced AI analytics and improved image optimization. With 5MP resolution for exceptional clarity and a fixed focus lens for effortless setup, these cameras offer superior performance and user-friendly installation.
AI-based motion detection to detect and classify objects
Q series AI cameras come equipped with AI-based object detection to reduce false alarms so you can see the details that matter.
BestShot
BestShot leverages AI to identify and capture the most important moments. With rich metadata, you can quickly and easily find the information you need.
Searchable color attributes
Q series AI cameras capture detailed color information from detected objects as searchable metadata to enhance forensic search.
Dynamic privacy masking
Q Series AI cameras intelligently mask sensitive objects, ensuring compliance with privacy regulations without compromising security.
Cut through the noise, see with clarity
Q Series AI cameras use intelligent WiseNRII technology to apply adaptable noise reduction to keep your footage sharp, even in challenging lighting and motion.
VMS compatibility
The new Q series AI cameras offer seamless integration with both cloud-based solutions from Hanwha and Genetec, and with VMS from Milestone, Genetec, Wisenet SSM, and Wisenet WAVE.
Features:
- Wisenet Q network indoor dome camera
- 5MP @ 30fps, fix lens 4mm (H:80°/V: 59°)
- triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine)
- WiseNRⅡ(Based on AI engine)
- WDR 120dB, IR viewable length 30m(98.42ft)
- Built-in Mic
- WiseMD based on AI engine
- Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle)
- IVA events based on AI engine: Virtual line (Crossing/Direction)
- Virtual area (Loitering/Intrusion/Enter/Exit/(Dis)Appear)
- defocus detection
- hallway View
- built-in SD card slot (1x256GB)
- video analytics
- USB for easy installation, open platform
- PoE
- Operating temperature -10°C~+45°C(+14°F ~ +113°F)
- white color
- * Alarm I/O is supported through an optional cable (SPP-C7200)
| Video | |
| Imaging Device | 1 /2.8" CMOS |
| Resolution | 2592x1944 , 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480 , 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) (WDR on/off) MJPEG: Max. 30fps(@5MP Max. 5fps) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec, 30IRE) BW: 0.005Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0 mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 80°/ V: 59°/ D: 102° |
| Min. Object Distance | 0.5 m (1.64ft ) |
| Focus Control | Fixed |
| Lens Type | Fixed IRIS |
| Mount Type | M12 |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0 °~355° / 0°~75° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine) SSNRⅤ |
| Motion Detection | 8 ea, 8point polygonal zones |
| Privacy Masking | 32 ea, 4point quadrangle zones
Dynamic Privacy Mask
|
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/25,000sec) Prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Vehicle(Type:car/bus/truck/motorcycle/bicycle) Attributes: Person(Upper/lower clothes color), Vehicle(Type:car/bus/truck/motorcycle/bicycle and color) Support BestShot Analytics events based on AI engine
Analytics events
* Some of the video analytics only works with people and vehicle detection |
| Alarm I/O | Input 1ea / Output 1ea * Alarm I/O is supported through an optional cable(SPP-C7200) |
| Alarm Events | When alarm trigger occurred
|
| Audio In | Built-in MIC |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30 m(98.42ft ) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform Oncloud edge recording, compatible with Hanwha Vision’s Micro SD cards up to 1TB |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2 GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10 °C~+45°C(+14°F~+113°F ) 0 ~95% RH(Non-Condensing ) |
| Storage Temperature / Humidity | -30 °C~+60°C(-22°F~+140°F) / 0~95% RH |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 8.1W, typical 4.0W |
| Mechanical | |
| Color / Material | White / Plastic Bubble : Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø110x90mm(ø4.33x3.54"), 317.0g(0.70 lb |
| Compatible Conduit hole / Gangbox | SBD-110GP1 : Single, Double, 4" Octagon (Sold seperately) |
| Certifications & Standards |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | IEC/EN 62471 |
| Environment | IEC/EN 63000 |
| Compatible Models | |
| Hanging Adaptor | SBP-120HMW |
| Back Box | SBV-140BW, SBV-140WW |
| Ceiling Mount (Assy) | SBP-150CMI, SBP-300CMI, SBP-300CMW1, SBP-900CMW, SBP-300CMTW, SBP-300CMTS |
| Ceiling Mount (Single Unit) | SBP-140CMB, SBP-140CMT, SBP-180CMB, SBP-180CMS, SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P, SBP-C15H |
| Wall Mount | SBP-125WMW1, SBP-250WMW, SBP-300WMW, SBP-300WMW1, SBP-400WMW |
| Wall Mount Adaptor | SBP-115PFA, SBP-300BW1 |
| Pole Mount | SBD-140PMB, SBD-140PMW, SBP-300PMW2 |
| In-ceiling Mount | SHD-1101FW, SHD-1100FPW |
| Corner Mount | SBD-140KMB, SBP-156KMW, SBP-300KMW1 |
| Parapet Mount | SBP-156LMW1, SBP-300LMW |
| Tilt Mount | SBV-140TMW |
| Cabinet | SBP-150NBW, SBP-300NBW |
| Gang Plate | SBD-110GP1 |
| Other Compatible Models | SPP-C7200 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 61.8m(202.69ft) |
| Observe (63PPM/ 19PPF) | 24.7m(81.08ft) |
| Recognize (125PPM/ 38PPF) | 12.4m(40.54ft) |
