Hanwha - SHP-3701F - In-ceiling Flush Mount
Part number:
SHP-3701F
Price:

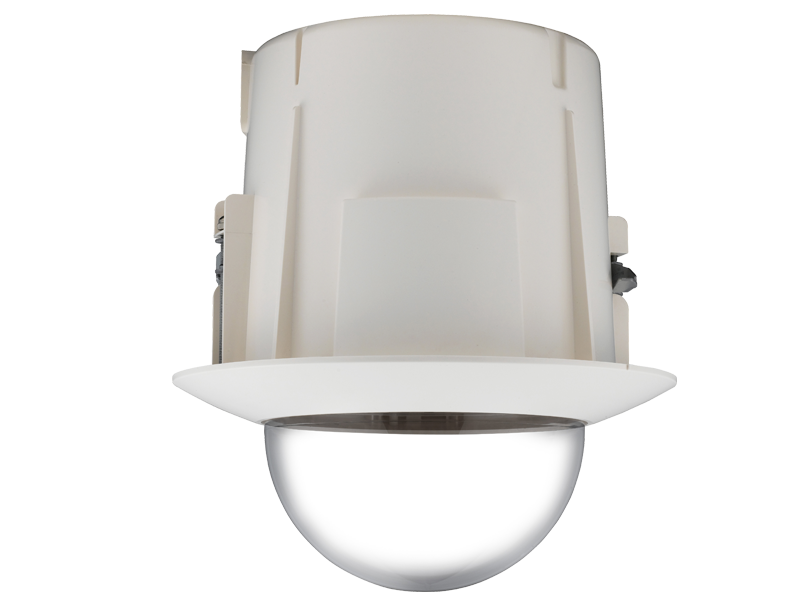

In-ceiling Flush Mount. This low profile polycarbonate mounting solution is compatible with the camera models below: XNP-6320, QNP-6230, HCP-6320A, HCP-6320, SNP-3300A, SNP-3301, SNP-3302, SNP-3350, SNP-3370, SNP-3371, SNP-3750, SNP-5200, SNP-5300, SNP-5320, SNP-5321, SNP-5430, SNP-6200, SNP-6201, SNP-6320, SNP-6321, SNP-L5233, SNP-L6233, SCP-2250, SCP-2251, SCP-2270, SCP-2271, SCP-2273, SCP-2330, SCP-2370, SCP-2371, SCP-2373, SCP-2430, SCP-3250, SCP-3370, SCP-3371, SCP-3430.
| Materials | Body/Bubble : Poly carbonate + ABS |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) |
| Operating Humidity | 0 ~ 90% RH |
| Weight | 830g (1.83 lb) |
| Dimensions | External : Ø254.0 x 276.4mm (Ø10" x 10.88") Internal : Ø186.0 x 242.0mm (Ø7.32" x 9.53") |
| Color | Ivory Clear Bubble (SHP-3701F) / Tinted Bubble (SHP-3701FB) |
Name
Description
Size
Downloads
File
PTZ Housing/Mounts Specifications
0.2mb
File
PTZ Housing Mounts Specifications
0.7mb
File
Peripheral Specifications
0.2mb
File
SHP-3701F / SHP-3701FB In-ceiling Flush Mount Specifications
1.4mb
File
In-ceiling Housing Datasheet
0.6mb
File
Hanwha Techwin America - NDAA Compliant Product List 5-2022
0.5mb
