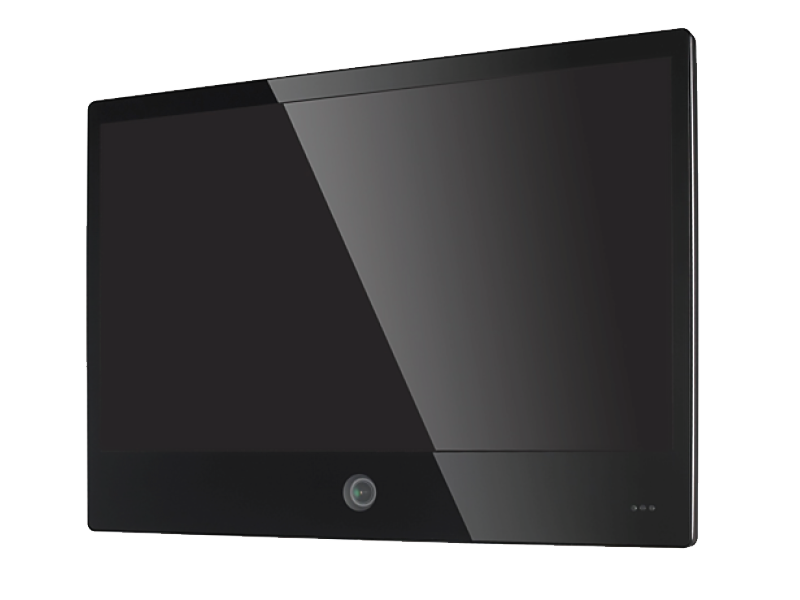

Hanwha - SMT-3211PVM-PIP - 32″ Public View Monitor With 2 Megapixel Camera and Picture-in-Picture Display
Part number:
Price:
• 32” LED 1080p resolution monitor and camera
• Latency-free viewing
• Inconspicuous integrated camera
• Face Detection display for visual deterrent (Colored bounding box around detected face)
• Wide Dynamic Range (150dB)
• Advanced video analytics, motion detection
• H.265, H.264, MJPEG triple codec, Multiple streaming
• Additional HDMI and VGA input
• Picture in Picture (SMT-3211PVM-PIP)
• Glare reduction coating on glass
• External alarm input port
| SOUND | |
|---|---|
| Speaker Type | Built-in speaker (2x2 W) |
| CONNECTIVITY | |
| Input Video | HDMI (1), VGA (1) |
| Input Audio | Stereo mini jack |
| Input USB | USB (S/W update only) |
| Input RJ-45 | (10/100BASE-T) |
| External input | Network, Alarm |
| Output Audio | Stereo mini jack |
| DISPLAY | |
| Type | LED |
| Screen Size | 32" |
| Max. Resolution | 1,920 x 1,080 |
| Aspect Ratio | 16:9 |
| Brightness | 300 NIT |
| Contrast Ratio | 1200:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Noise Reduction Control | 3D Comb Filter |
| Response Time | 8ms |
| Front Glass | Glare reduction coating |
| PIP Modes | N/A - Picture in picture - Side by side, stretch or fit |
| CAMERA | |
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1,945 (H) x 1,109 (V) 2.16M |
| Effective Pixels | 1,945 (H) x 1,097 (V) 2.13M |
| Scanning System | Progressive Scan |
| Min. Illumination | Color: 0.06 Lux (1/30sec, F2.5) |
| Day & Night | Auto (Electrical) / Color / B/W |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming) / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Face Detection | - Up to 6 faces detectable in real time - Detection distancemin/maxAnti-flicker: up to 50ft (15.24m) - Overlay color changeable: Blue / Red / Green / Orange / Black |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) - Color: Grey / Green / Red / Blue / Black / White, Mosaic |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Flip / Mirror | Off / On, Hallway view: 90°/270° |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Face detection, Motion detection, Digital auto tracking |
| Alarm Triggers | Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| LENS | |
| Focal length | 4.6mm pinhole |
| Max. Aperture ratio | F2.5 |
| Angular Field of View | H: 73.8° / V: 39.6° / D: 86.8° |
| Min. Object Distance | 0.98ft (0.3m) |
| NETWORK | |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps |
| Video Quality Adjustment | H.265 / H.264: Target bitrate level control, MJPEG: Target bitrate level control |
| Smart Codec | Manual mode (Area-based: 5ea), WiseStream II |
| Bitrate Control Method | H.265 / H.264: CBR or VBR, MJPEG: VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Edge Storage | SD/SDHC/SDXC (Up to 256GB) |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform |
| ELECTRICAL | |
| Input Voltage / Current | DC 24V |
| Power Consumption | 55W max. |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | +32°F ~ +104°F (0°C ~ +40°C) / Less than 90% RH |
| Storage Temperature / Humidity | -4°F ~ +140°F (-20°C ~ +60°C) / Less than 90% RH |
| MECHANICAL | |
| Color | Black |
| Dimension (WxHxD) | 32.12" x 20.26" x 2.31" (76.5 x 51.46 x 5.87cm) |
| Weight | 30 lbs |
| Mounting | VESA 100 x 100mm / 200 x 100mm, stand not included |
| Supported models | SMT-3211PVM, SMT-3211PVM-PIP |
