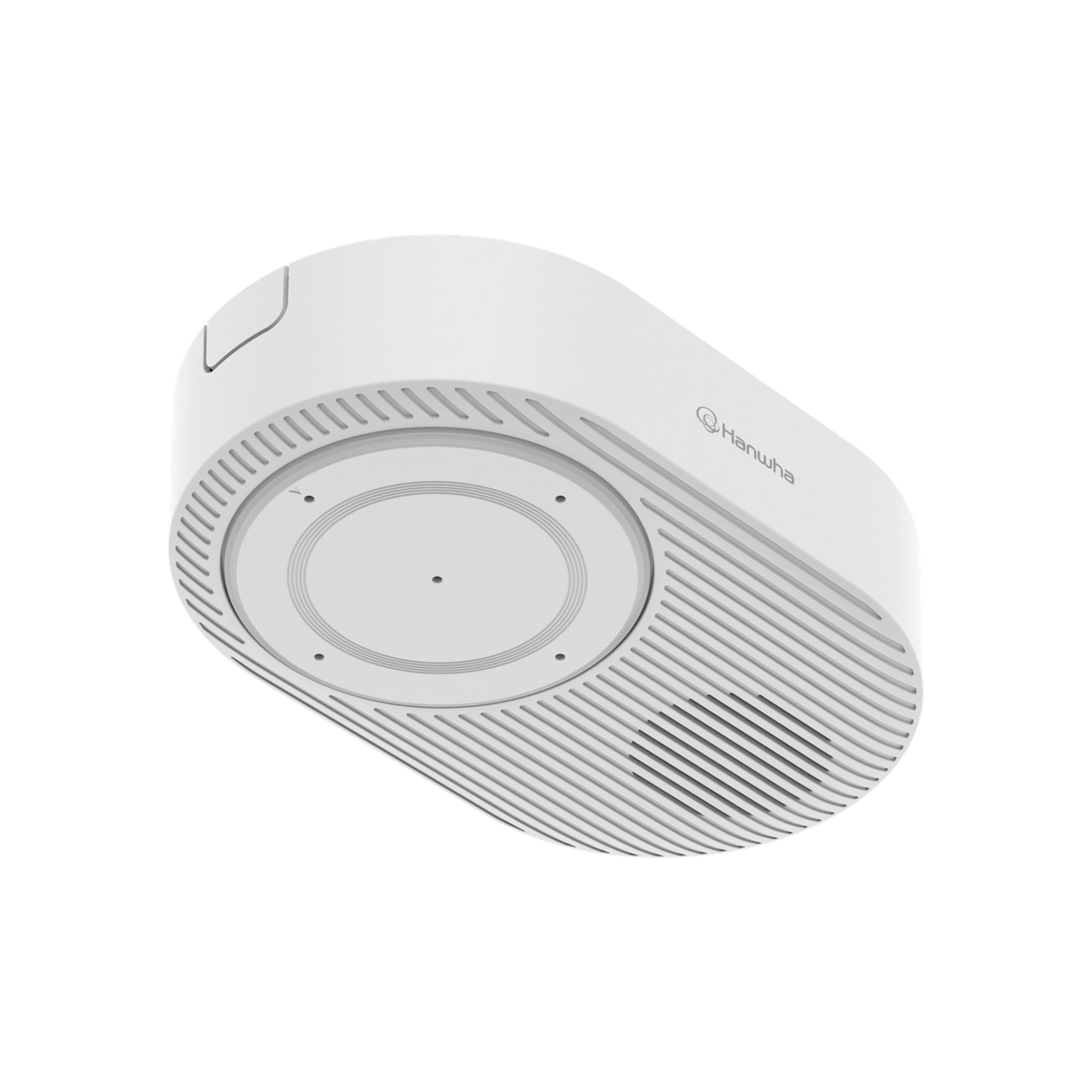

Hanwha - SPS-A100M - Audio Beacon - Speaker with Max. Sound Pressure Level 90dB at 1m(3.28ft) and Frequency Range of 144Hz~20kHz, 5 Digital Microphones with Two-Way/One-Way selectable, Full Duplex communication with Echo Cancellation and Noise Reduct
Part number:
Price:
• Full-duplex two-way audio support
• Five built-in MEMS microphones
• Built-in speaker(Max. Sound Pressure Level(PoE+) 90dB)
• Built-in LED ring indicator for clear status alerts
• AI-based sound classification included
• Best sound(audio file), Event metadata support
• Accurate sound origin detection with direction-finding algorithms
• Support for 3rd party VMS integration
| Video | |
|---|---|
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | Static image video H.265/H.264: Max. 10fps MJPEG: Max. 5fps |
| Video Out | USB: Micro USB Type C, setting true north point using Wisenet installation |
| Operational | |
| Analytics | AI Sound Classification - Classified sound type: Crashing glass, Screaming, Vehicle horn, Tire screech - Event metadata: Sound type, Sound direction, Confidence, Timestamp, Best sound(audio file), dB(±10dB) - Sound direction(Ceiling mounting: ±15 degrees) |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event(Sound classification), Time schedule, MQTT subscription, Case tampering |
| Audio Streaming | Two-way/one-way selectable, Full duplex, Echo cancellation and noise reduction |
| Alarm Events | When alarm trigger occurred - File upload(audio): e-mail/FTP - Notification: e-mail - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback(6MB, WAV) - MQTT: publication - LED - Speaker |
| Audio In | Five built-in MEMS MICs |
| Audio Out | Built-in speaker - Max. Sound Pressure Level 90dB at 1m(3.28ft) - Frequency Range: 144Hz~20kHz |
| Light Type | LED Ring(Green, Blue, Red, Pink, Sky blue, Purple), for event action |
| Network | |
| Ethernet | RJ-45(10/100 BASE-T) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT, SIP 2.0(RFC 3261 and companion RFCs) |
| Application Programming Interface | ONVIF Profile S SUNAPI(HTTP API) Wisenet open platform - AI Sound Classification pack included |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | SRTP, HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | Secure element |
| Security Certificate | ETSI EN 303 645, Secure element(FIPS 140-3 level3, CC EAL6+) |
| General | |
| Webpage Language | English, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -20°C ~ +55°C (-4°F ~ +122°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | PoE+: Max 18.5W, typical 8.2W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 215.1(W)x135.1(D)x52.8(H)mm(8.47"x5.32"x2.08") / 973g(2.15 lb) |
| Compatible Conduit hole / Gangbox | None / single, double, 4" octagon, 4" square Sold separately conduit hole accessory: SBP-060BA |
| Hanging Mount (Dome) | SBP-215HMWB |
| Conduit Adaptor | SBP-060BA |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 |
Name
Description
Size
Downloads
File
DataSheet_SPS-A100M_250610_EN_0.pdf
1.4mb
File
Installation-Guide-Sheet_SPS-A100M_250306_Common_0.pdf
0.1mb
File
Certification_SPS-A100M_241115_EN_DoC_CE.pdf
0.2mb
File
Certification_SPS-A100M_241115_EN_DoC_UKCA.pdf
0.2mb
File
Certification_SPS-A100M_241206_EN_UL.pdf
0.3mb
