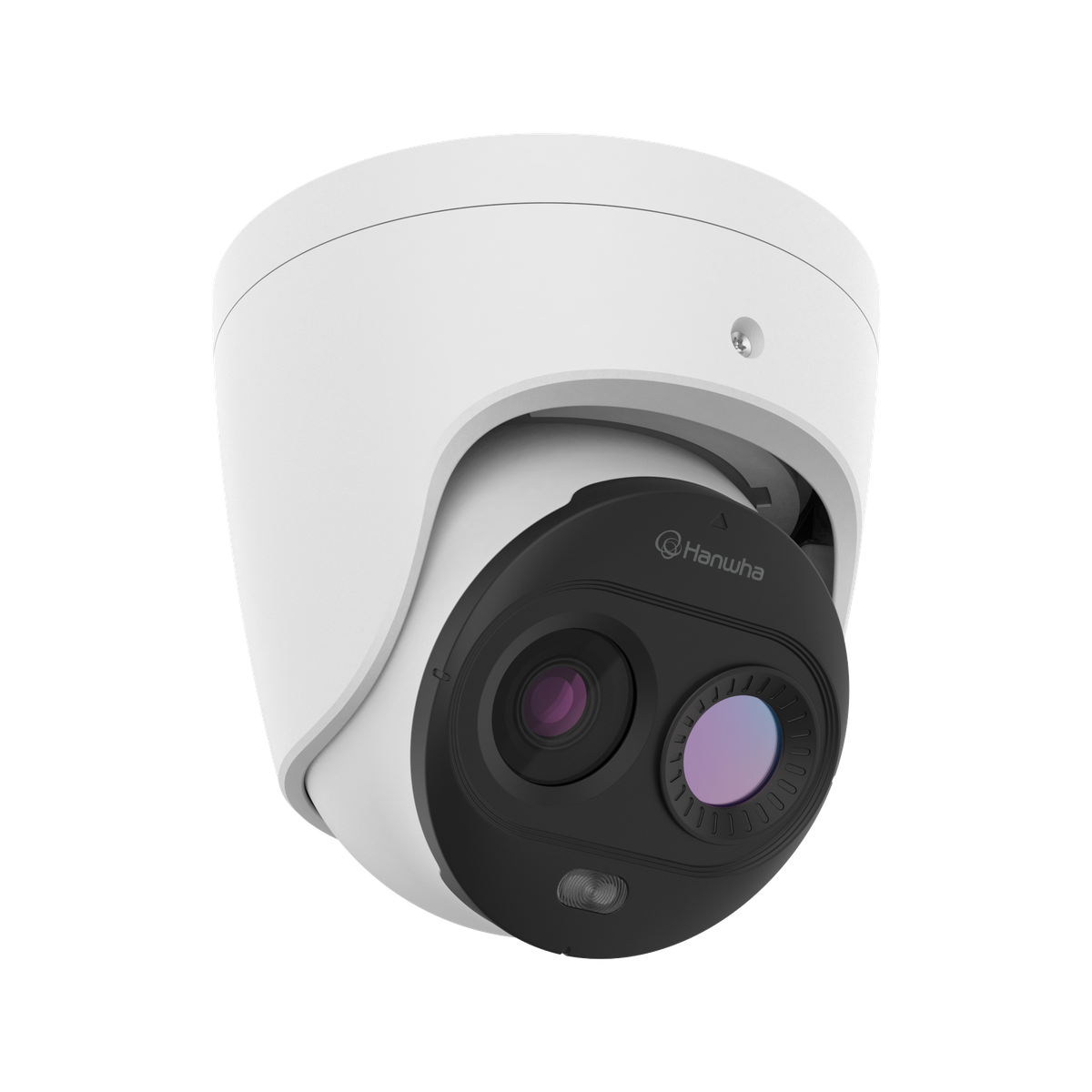

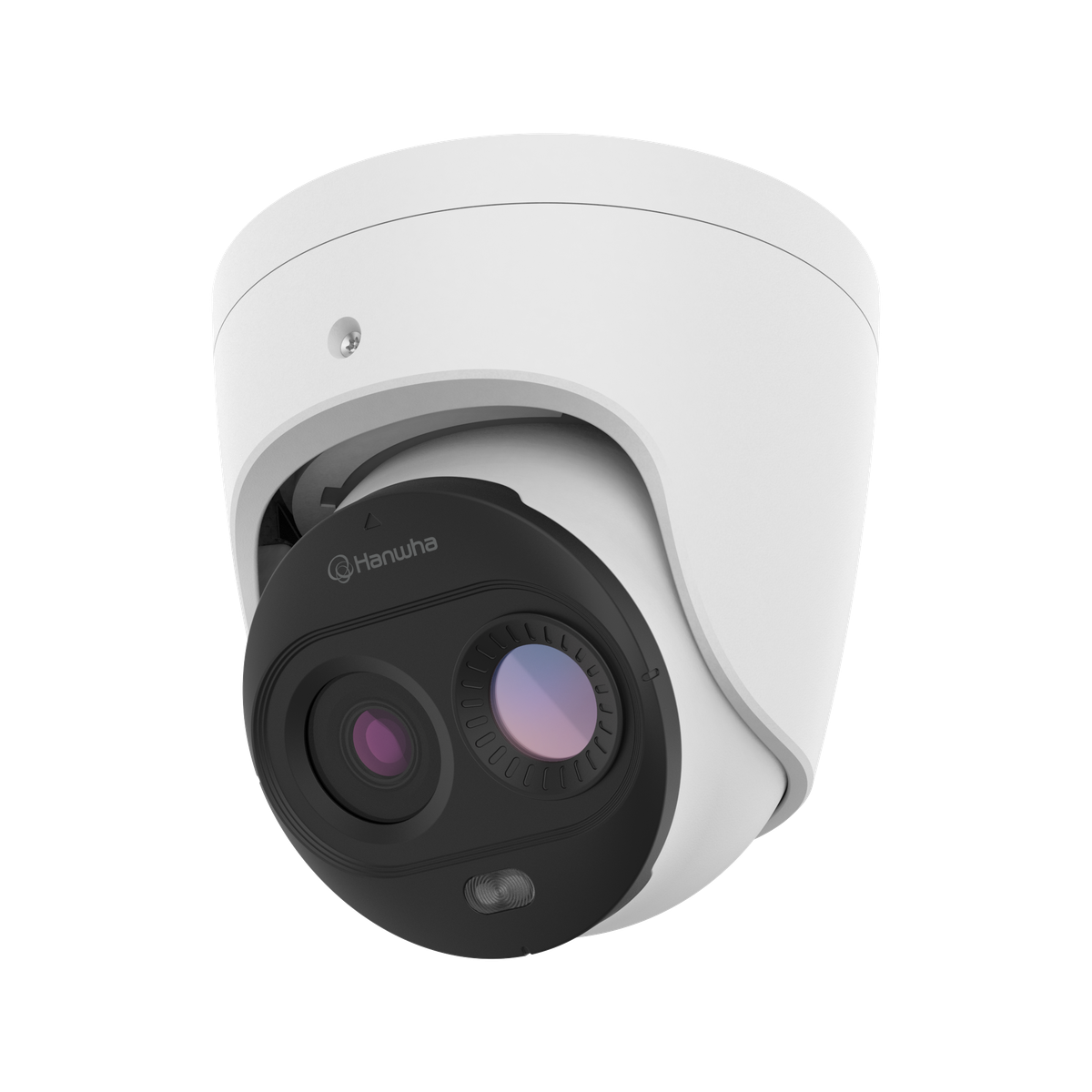

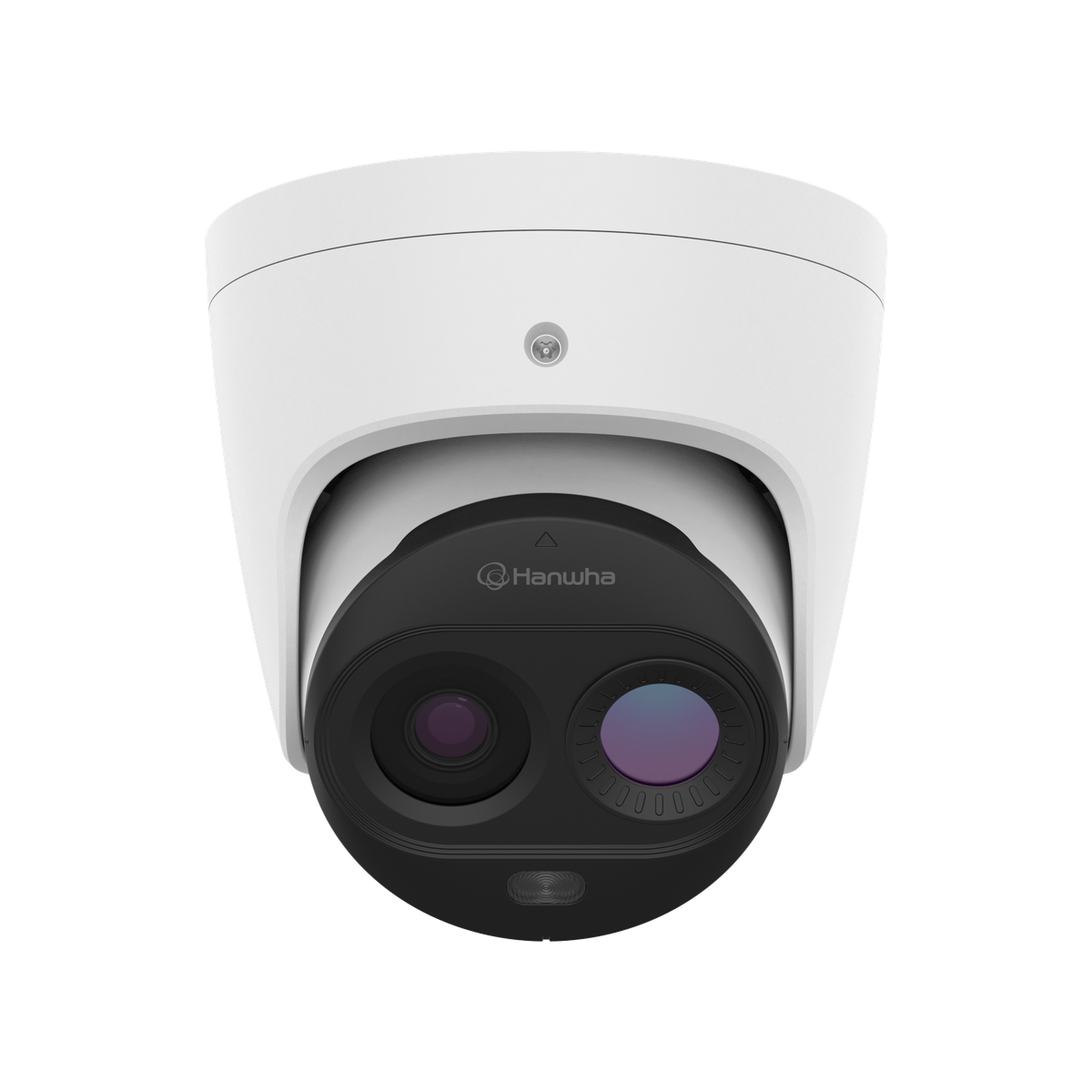

Hanwha - TNM-C2722TDR - Wisenet T network Bi-spectrum Early Fire Detection Camera, Thermal: 160 x 120 (uncooled) @ 8fps, <50mK (NETD), built-in 1.9mm fixed lens (57° HFoV / 44° VFoV), Visible: 3MP, built-in 4.46mm fixed lens (69° HFoV / 50.8° VFoV),
Part number:
Price:
• Bi-spectrum Multi-Channel: QQVGA Thermal & 3MP Visible Sensor
• Max. Framerate: Visiable 30fps, Thermal 8fps
• Angular Field of View : Thermal H: 57° / V: 44° / D: 71° & Visible H: 69° / V: 50.8° / D: 88.9°
• Early fire detection (Analytics events based on an AI engine)
• Temperature detect range (-10°C~450°C), Temperature difference detection
• IP66/IP67, IK09 (except lenses in front)
• PoE: Max 10.8W, typical 6.2W
| Video | ||
|---|---|---|
| Imaging Device | Uncooled micro bolometer | 1/2.8" CMOS |
| Resolution | 640x480, 320x240 (Original sensor resolution: 160x120) | 2048x1536, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 8fps MJPEG: Max. 5fps | H.265/H.264: Max. 30fps/25fps MJPEG: Max. 5fps |
| NETD | ＜50mK | |
| Pixel Size | 12㎛ | |
| Min. Illumination | Color: 0.07Lux(F1.65, 1/30sec) BW: 0.07Lux(F1.65, 1/30sec) | |
| Lens | ||
| Focal Length (Zoom Ratio) | 1.9mm fixed focal | 4.46mm fixed focal |
| Max. Aperture Ratio | F1.1 | F1.65 |
| Angular Field of View | H: 57° / V: 44° / D: 71° | H: 69° / V: 50.8° / D: 88.9° |
| Min. Object Distance | 0.3m(0.98ft) | 1.9m(6.2ft) |
| Focus Control | Fixed | Fixed |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~70° / 0°~360° | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | WDR | |
| Digital Noise Reduction | SSNR V | |
| Digital Image Stabilization | Support | |
| Motion Detection | 8ea, polygonal zones | |
| Privacy Masking | 6ea, rectangle zones - Color: Gray/Black/White | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(1/5~1/12,000sec) | |
| Video Rotation | Flip, Mirror | |
| Analytics | Temperature detection, Temperature difference detection | |
| Analytics events | - Motion detection - Early fire detection | Analytics events based on AI engine - Tampering, Audio detection, Motion detection |
| Alarm I/O | ||
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription | |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback - MQTT: publication - Light alarm | |
| Audio | ||
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light | ||
| Light Type | White light | |
| Color Palettes | Whitehot, Sepia, Red, Custom | |
| Radiometry | ||
| Temperature Detect Range | -10°C~450°C | |
| Temperature Accuracy | Greater of ±10°C or 10% | |
| Temperature Detection | 2 Rectangle ROI zones | |
| Additional | Spot temperature reading | |
| Network | ||
| Ethernet | Metal shielded RJ45 (10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz | |
| Smart Codec | WiseStreamⅡ | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR | |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Hanwha Vision Open Platform | |
| Security | ||
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption | |
| User authentication | Digest Authentication, Prevent brute-force attack | |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) | |
| Access Control | Access control based on IP address | |
| Data Protect | Authentication information encryption, ZIP compression encryption | |
| Audit | User Access/System/Event log management | |
| Device ID | Device Certificate(Hanwha Private Root CA3) | |
| Secure Storage | SD card pratition encrypt | |
| General | ||
| Webpage Language | English, French, German, Spanish, Italian, Simplified Chinese, Traditional Chinese, Korean, Russian, Japanese, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slots 512GB | |
| Memory | 2GB RAM, 512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~95% RH(non-condensing) * Start up should be done at above -10°C | |
| Storage Temperature / Humidity | -40°C~+60°C(-40°F to +140°F) / Less than 95% RH | |
| Certification | IP66/IP67, IK09 (except lenses in front) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE: Max 10.8W, typical 6.2W | |
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | Ø110x97mm(ø4.33x3.82"), 650g(1.43lb) | |
| Mounting Options | Hanging Mount (Dome): SBP-120HMW Backbox: SBV-140BW Wall Mount: SBP-125WMW1 Pole Mount: SBD-140PMW, SBD-140PMB Tilt Mount: SBV-140TMW Gang Plate: SBD-110GP1 | |
| Certifications & Standards | ||
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 | |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK09 | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | 89.8m(294.6ft) | |
| Observe (63PPM/ 19PPF) | 35.9m(117.7ft) | |
| Recognize (125PPM/ 38PPF) | 18.0m(59.0ft) | |
| Identify (250PPM/ 76PPF) | 9.0m(29.5ft) | |
