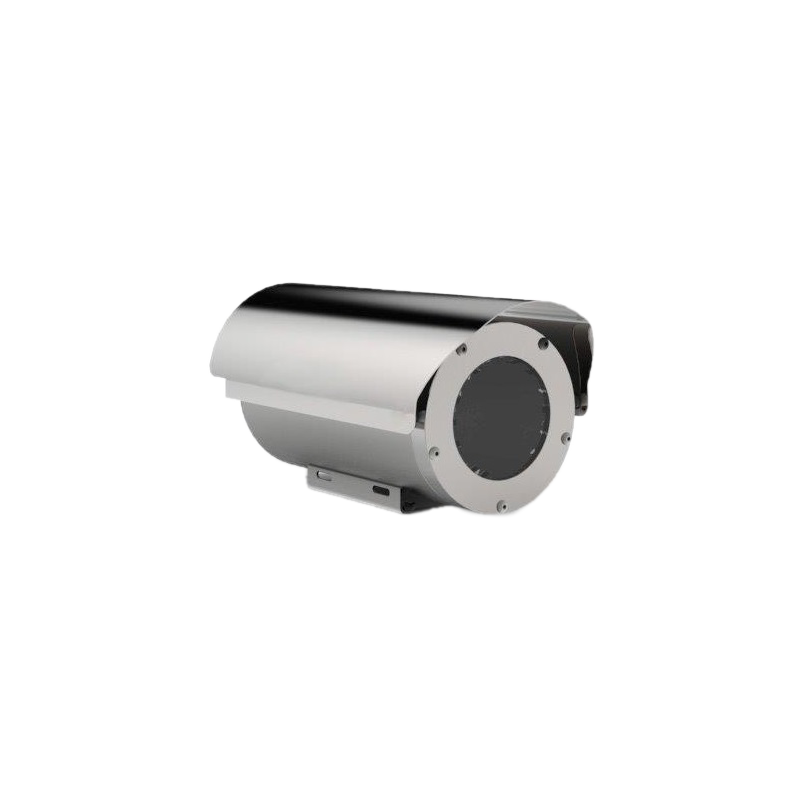

Hanwha - TNO-6070EP-C - Explosion Proof Fixed Camera
Part number:
TNO-6070EP-C
Price:
Explosion proof housing using the SNB-6004 + 2.8~9mm Lens PoE Only (No Wiper), cLCus C1/D1 certification, -10°C ~ +55°C (+14°F ~ +131°F), IP66/IP67,IP68.
Features:
- 2M (1920x1080) resolution, 1080p Full HD support
- 2.8mm ~ 9mm Lens
- 60fps @ 1080p Full HD
- Simple Focus, P-iris
- True Day&Night (ICR), Enhanced DIS, Defog
- WDR (120dB, 30fps @ 2MP)
- Built-in SD/SDHC/SDXC memory slot
- PoE Power
| Technical Specifications | |
| Video | |
| Image Sensor | 1/2.8” 2.38M CMOS |
| Resolution | 1920x1080 @60fpsto 320x180 |
| Lens | 1/2.8”, Vari-focal (2.8-9.0mm), auto DC iris, CS-mount |
| Min. Illumination | Color : 0.1Lux (F1.2, 50IRE), 0.03Lux (F1.2, 30IRE) B/W : 0.01Lux (F1.2, 50IRE), 0.002Lux (F1.2, 30IRE) |
| Streaming | H.264, MJPEG dual codec, multiple streaming, VBR/CBR |
| Features | Intelligent video analytics, motion detection, day & night (ICR), WDR (120dB), simple focus, auto iris, AGC, SSDR, ATW, SSNRIII, BLC, DIS, defog |
| Standard Protocols | ONVIF Pro le S, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Specifications | |
| Sun Shield | Standard stainlesssteel 316L mirror nish |
| Ingress Protection rating | IP66/67, IP68 (1.5m for 24 hours) |
| Temperature Rating | -10°C ~ +55°C (+14°F ~ +131°F) |
| Electrical | |
| Supply Voltage Options | PoE |
| Power Consumption | Max. 12.0W (PoE, Class 3) |
| Cable Entry | One M20 side entry |
| Body Material | Electro-polished 316L stainless steel on all welded assemblies |
| Fixings Material | A4 stainless steel |
| Camera Station Window | Toughened glass |
| Certifications | |
| INMETRO | Ex d IIC T4 (T5 On Request) Gb -60° C ≤Ta ≤+60°C Ex tb IIIC T135° C Db IP66/67. Certi cate Number: TUV 12.1080X / TUV 12.1081X |
| LCus C1/Z1 | Class 1 Zone 1 A Ex d IIC T4 (T5 On Request) LC13A11396 Gb -60° C ≤Ta ≤+60° C. UL 60079-0:2009 & 60079-1:2009. Certi cate Number: 11396-1S-UL |
| cLCus C1/D1 | ClassI, Division 1, Groups B,C,D, -60°C≤Ta≤60°C T4/ ClassII,Division 1, Groups E, F, G IP67 CSA-C22.2 No:30-M1986 No:25-1966(R2009) CSA-C22.2 No:60065- 03(R2012) & UL1203,UL60065(ED.7). Certi cate Number: 11671-1S / 11677-1S |
| cLC CSA | Ex d IIC T4 (T5 On Request) LC1311396 -60°C≤Ta≤+60°C. CAN CSA-C22.2 No.60079-0:2011 & 60079-1-2011. Certi cate Number: 11396-1S-CSA |
| Weight | 8.5 kg (18.9 lb) |
