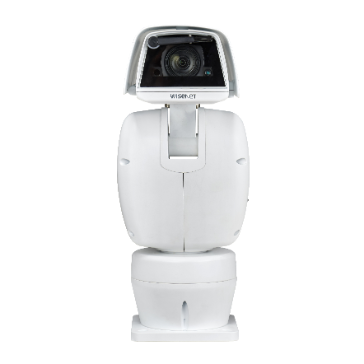

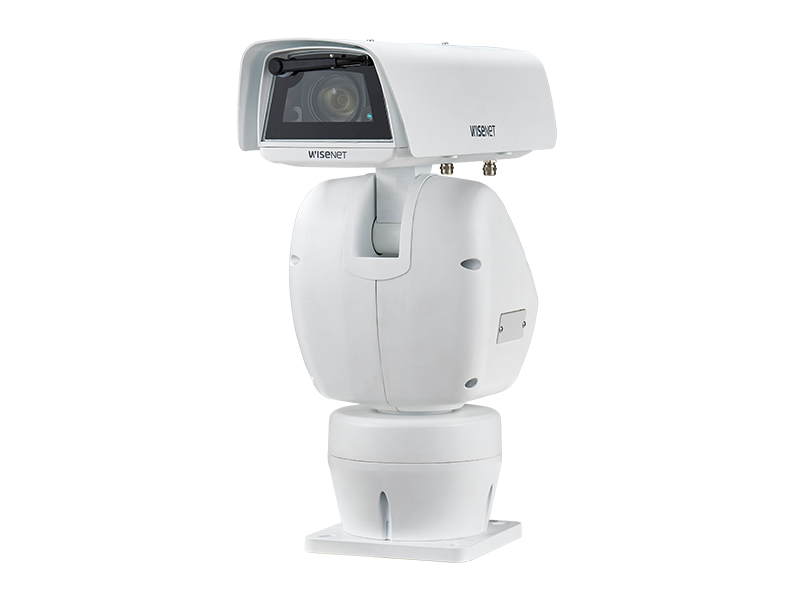

Hanwha - TNU-6320 - 2MP Positioning Zoom Camera
Part number:
TNU-6320
Price:
Network PTZ camera, 2MP, Full HD(1080p) 60fps, H.264/MJPEG, Optical Zoom Lens 32x (4.44-142.6mm), 120dB WDR, true D/N, HLC, analytics, pan 360˚ endless, tilt -90˚ ~ 40˚, SD/SDHC/SDXC, 24VAC, IP66, IK10, Heater on -58°F 24VAC or -22°F Optional IR Illuminators: SPI-50.
Features:
- 2 megapixel (1920 x 1080) resolution
- 4.44 ~ 142.6mm (32x) varifocal zoom lens
- 60fps@2M (H.264)
- H.264, MJPEG dual codec support
- Day & Night (ICR), WDR (120dB), Defog
- Tampering, Virtual line, Enter / Exit, (Dis)Appear, Face detection, Motion detection
- SD / SDHC / SDXC slot
- Built-in Wiper, Defroster
- Operating temperature -40℃ ~ + 55℃

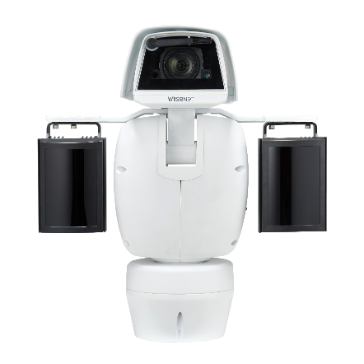

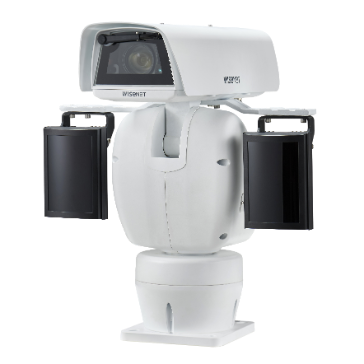

- Optional IR illuminator SPI-50
| Technical Specifications | |
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Min. Illumination | Color: 0.3Lux (F1.6, 1/30sec) B/W: 0.03 Lux (F1.6, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 62.8˚(Wide)~2.23˚(Tele) / V: 36.8˚(Wide)~1.26˚(Tele) |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | Auto / Manual / One Pus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate |
| Pan Range | 360˚ Endless |
| Pan Speed | 0.036°~120°/sec |
| Tilt Range | -90˚~40˚ |
| Tilt Speed | 0.012°~ 40°/sec |
| Sequence | Preset(255ea), Swing, Group(6ea), Trace, Tour(1ea), Auto Run, Schedule |
| Preset Accuracy | ±0.3˚ |
| Operational |
| Camera Title | Displayed up to 45 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRIII (2D+3D Noise Filter) |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Analytics | Motion detection, Face detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP, E-Mail |
| Notification via E-Mail, TCP and HTTP | |
| NAS recording at Alarm Triggers | |
| External output | |
| Preset | |
| Audio In | Selectable(Mic in/Line in), |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Illuminator (Optional) | Support |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual mode(Area-based : 5ea), Face detection mode |
| Bitrate Control | H.264: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(10 users) / Multicast |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access Log | |
| 802.1X Authentication | |
| Application Programming Interface | ONVIF Profile S |
| SUNAPI 2.0 | |
| SVNP 1.2 | |
| WiseNet Open Platform | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40°C~+55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -40°C~+60°C (-40°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, Safety(UL, KC-SDOC), EMC(FCC, CE, VCCI, RCM, KC) |
| Mechanical |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | 219(W)×528.2(H)×460(D)mm (8.62x20.79x18.11"), 14Kg (30.86 lb) |
