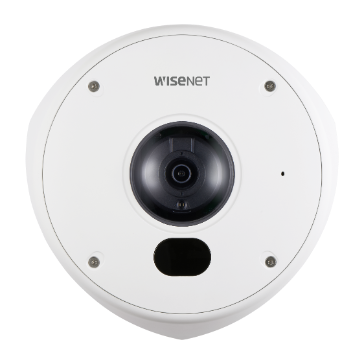

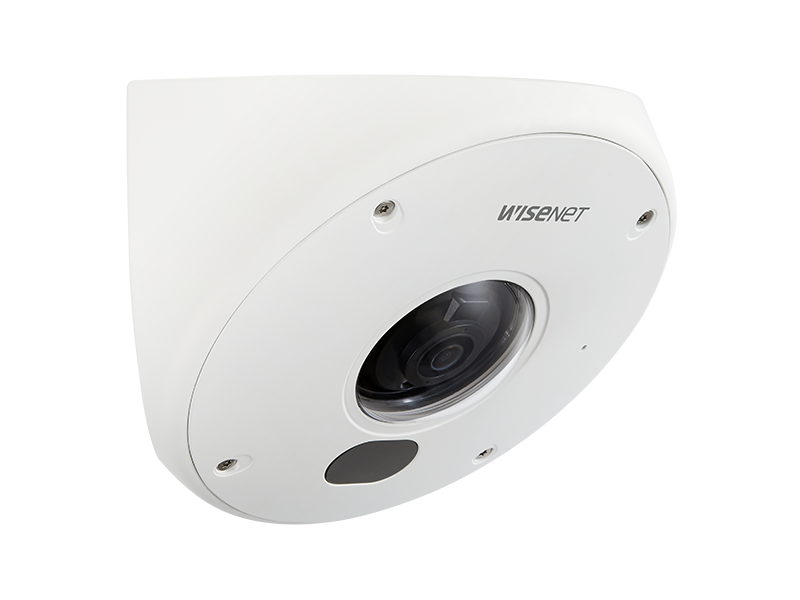

Hanwha - TNV-7010RC - 3MP IR Vandal Corner Camera
Part number:
TNV-7010RC
Price:
The TNV-7010RC is a 3 MP H.265 network corner mount camera designed for correctional facilities, metal health institutions, holding cells and other applications that require a secure installation. The anti-ligature feature is designed to deter individuals from reaching or attaching to the camera. Tamper-resistant hardware securely mounts the camera to prevent its' removal and use as a weapon. The Invisible 940nm IR provides round-the-clock visibility without a visible glow. Two-way audio support allows a guard to interact with the monitoring location or to record important audio evidence. The intelligent analytics, powered by the Wisenet 5 chipset, includes shock detection provides quick alerts to suspicious behavior.
Features:
- Anti-ligature design for corrections and behavioral health facilities
- 3 Megapixel (2048 x 1536) resolution
- 30fps @ all resolutions (H.265/H.264/MJPEG)
- Invisible 940nm IR LED
- 0.3 lux @ F2.0 (Color), 0 lux @ F2.0 (B/W)
- Built-in 2.8mm fixed lens
- H.265, H.264, MJPEG triple codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Video & audio analytics, Shock detection
- microSD/SDHC/SDXC memory slot (Maximum. 256GB)
- Hallway view, WiseStream II support
- PoE, DC 12V, IK10+
| Technical Specifications | |
| Video | |
| Imaging Device | 1/2.8" 3.2M CMOS |
| Min. Illumination | Color: 0.3 lux (F2.0, 1/30sec) B/W: 0 lux (F2.0, 1/30sec) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 102˚ / V: 75˚ / D: 129˚ |
| Min. Object Distance | 0.4m(1.31ft) |
| Focus Control | Manual |
| Pan / Tilt / Rotate |
| Pan / Tilt / Rotate Range | 0˚ / ±15˚ / 0˚ |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | 2 ~ 1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, |
| Enter/Exit, Appear/Disappear, Audio detection, Face detection, Motion detection, | |
| Digital auto tracking, Sound classification, Shock detection | |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Motion detection |
| Alarm Events | File upload via FTP & E-Mail, Notification via E-Mail, Local storage (SD/SDHC/SDXC) or |
| NAS recording at event triggers, External output, DPTZ preset | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 10m(32.8ft) |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI(HTTP API) | |
| Wisenet open platform | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IP5K9K, IK10 |
| Mechanical |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | 236(W) x 236(H) x 126.5(V)mm(9.29" x 9.29" x 4.98"), 2200g(4.85 lb) |
