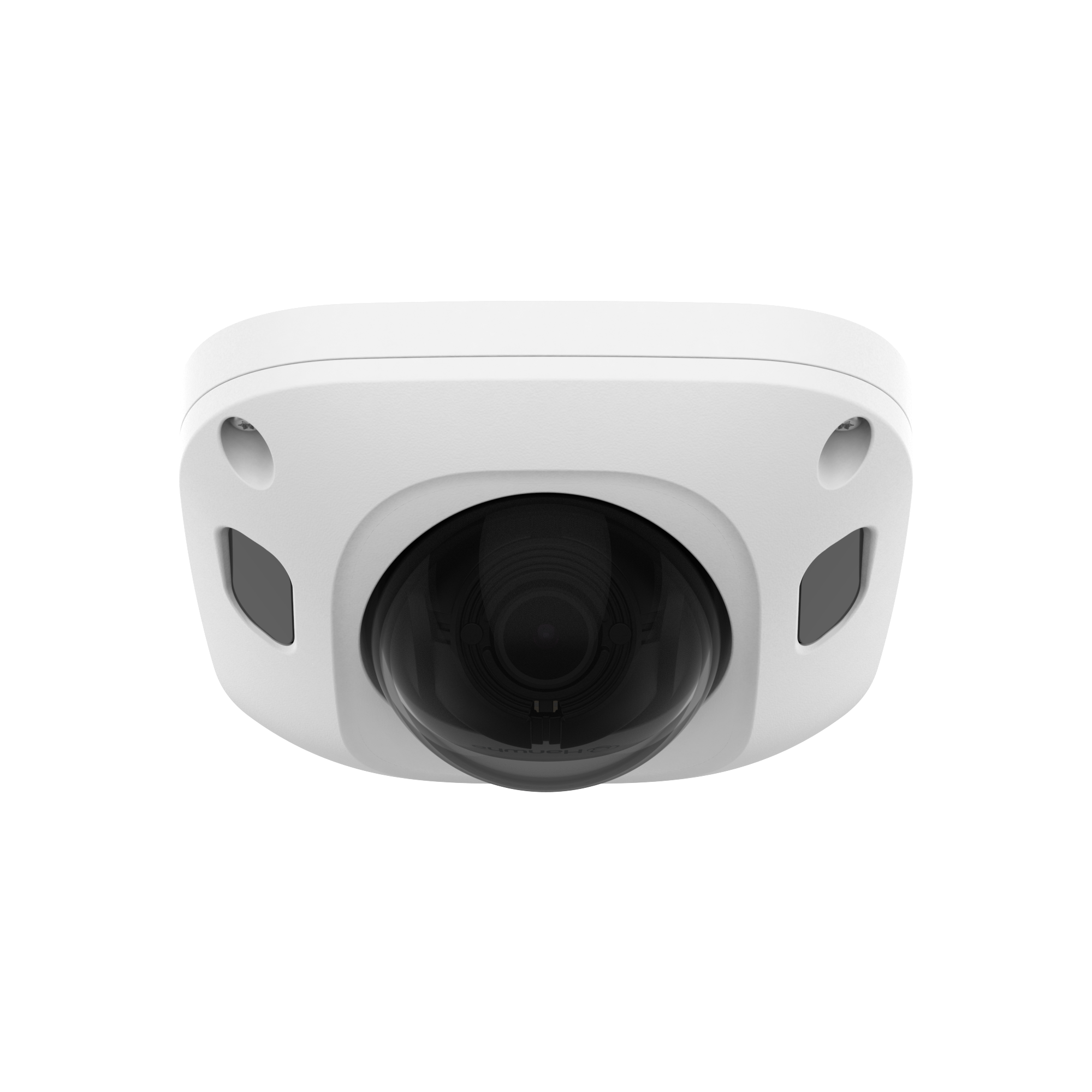

Hanwha Vision's T Series AI Mobile IR Flat Cameras deliver crystal-clear 5MP images, clear audio and intelligent analytics for mobile operations, ensuring safety and security for buses, trains and other on-the-go applications.
Fit anywhere. Protect everywhere.
The compact design minimizes obstructions and ensures a discreet installation in low-ceiling environments such as trains and buses.
Optimized sight for low light
The infrared sensor is positioned outside the camera dome to reduce glare and AI-enabled automatic exposure enables quick adjustments for consistently clear imagery.
AI object detection and classification
Set up virtual areas and lines to receive alerts when objects classified as people or vehicles enter, exit, intrude or loiter in designated locations.
BestShot
Leverages AI to identify and capture the most critical moments with BestShot, providing rich metadata and searchable attributes so you can quickly and easily find the information you need.
Dynamic privacy masking
T series AI Mobile cameras intelligently mask sensitive objects, ensuring compliance with privacy regulations without compromising security.
Built tough for on-the-go applications
The T Series AI Mobile IR Flat Cameras use cutting-edge technology to accurately detect people from any angle, providing valuable business intelligence.
VMS compatibility
The new T series AI Mobile cameras offers seamless integration with popular video management software from Milestone, Genetec and Hanwha Vision.
Features:
- T Series, Mobile IR vandal dome camera
- 5MP
- (2592x1944) 30fps
- fixed focal Lens 3mm (H:100°/V: 73°)
- triple codec H.265/H.264/MJPEG with WiseStream III technology
- WiseNRⅡ(Based on AI engine)
- built-in mic
- 120dB WDR
- IR viewable length 30m (98.43ft)
- Motion detection based on AI engine
- Analytics events based on AI engine: Classified object type: [Person/Vehicle]; Attributes: Vehicle [Type and color: (car/bus/truck/motorcycle/bicycle)], Person [upper and bottom clothing color]; BestShot, Virtual line, Virtual area]
- defocus detection, shock detection
- hallway view
- Heater
- DIS with built-in Gyro sensor
- Dynamic privacy masking
- built-in SD card slot (1x256GB)
- IP66, IK10
- Operating temperature: -40°C~+55°C(-40°F~+131°F)
- M12 Network connector (M12 to RJ-45 adaptor is not included)
- EN50155 certified
| Video | |
| Imaging Device | 1 /2.8" CMOS |
| Resolution | 2592x1944 , 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480 , 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) (WDR on/off) MJPEG: Max. 30fps(@5MP Max. 5fps) |
| Min. Illumination | Color: 0.03Lux (F1.6, 1/30sec) BW: 0.003Lux (F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.0 mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 100°/ V: 73°/ D: 129° |
| Min. Object Distance | 0.5 m (1.64ft ) |
| Focus Control | Fixed |
| Lens Type | Fixed IRIS |
| Mount Type | M12 |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | ±5 ° / 0°~67° / ±90° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR, Clear HDR |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine) SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support : Manual |
| Motion Detection | 8 ea, 8point polygonal zones |
| Privacy Masking | 32 ea, 4point quadrangle zones
Dynamic Privacy Mask
|
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/25,000sec) Prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Vehicle(Type:car/bus/truck/motorcycle/bicycle) Attributes: Person(Upper/lower clothes color), Vehicle(Type:car/bus/truck/motorcycle/bicycle and color) Support BestShot Analytics events based on AI engine
Analytics events
* Some of the video analytics only works with people and vehicle detection |
| Alarm Triggers | Analytics, Network disconnect, MQTT subscription |
| Alarm Events | When alarm trigger occurred
|
| Audio In | Selectable(Mic in/Line in/Built-in mic) |
| Audio Out | Line out |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30 m(98.42ft ) |
| Network | |
| Ethernet | M12(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2 GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40 °C~+55°C(-40°F~+131°F) / 0~100% RH(Condensing ) * Start up should be done at above -30°C Humidity control /w Air vapor control |
| Storage Temperature / Humidity | -40 °C~+55°C(-40°F~+131°F) / 0~95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 7.2W, typical 4.2W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 106x105x55 mm(4.17x.4.13x2.17"), 466g(1.03 Ib ) |
| Certifications & Standards |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A Railway/Vehicle Application EN50121-4, EN50121-3-2 |
| Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 Railway/Vehicle Application JIS E 5006, IEC62236-3-2, IEC62236-4, EN50121-4, , JIS E 4031, EN50498, EN50155, IEC/EN61373, EN45545-2 HL3, |
| Compatible Models | |
| Dome Cover | SPB-VAN23W, SPG-VAN23W |
| Other Compatible Models | SBD-110GPA |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 43.5m(142.71ft) |
| Observe (63PPM/ 19PPF) | 17.5m(57.09ft) |
| Recognize (125PPM/ 38PPF) | 8.7m(28.54ft) |
| Identify (250PPM/ 76PPF) | 4.3m(14.27ft) |
