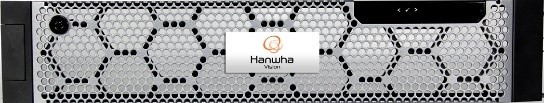

Hanwha - WRR-P-S204L-200TB - 2U Wisenet WAVE Network Video Recorder (Ubuntu OS) with 4 Professional licenses, Pre-installed, 200TB
Part number:
WRR-P-S204L-200TB
Price:
2U Wisenet WAVE Network Video Recorder with 4 Professional licenses, Wisenet WAVE pre-installed, 200TB raw (163TB usable after disk formatting & RAID 5 configuration), 470 Mbps recording B/W, 12 HDD Bay (3.5"), Intel Xeon 4410Y, 16GB RAM, Dual 480GB SSD OS drives (RAID 1), Ubuntu 22.04, Support RAID 0/1/5/6 + 8GB NV cache, mDP output, VGA output, 4 x 1GbE NICs, IPMI, Redundant 800W power supplies, Keyboard and mouse included, Rail kit included
Features:
- 2U Wisenet WAVE Network Video Recorder with 4 Professional licenses
- Wisenet WAVE pre-installed
- max 240TB raw (200TB usable after disk formatting & RAID 5 configuration)
- 470 Mbps recording B/W
- 12 HDD Bay (3.5")
- Intel Xeon 4410Y
- 16GB RAM
- Dual 480GB SSD OS drives (RAID 1)
- Ubuntu 22.04
- Support RAID 0/1/5/6 + 8GB NV cache
- mDP output
- VGA output
- 4 x 1GbE NICs
- IPMI
- Redundant 800W power supplies
- Keyboard and mouse included
- Rail kit included
| System | - |
| Video Management Software | Wave VMS |
| Recording Bandwidth | Up to 470 Mbs * Bandwidth performance figures based on performance testing by Hanwha Vision using Wave VMS |
| Included Licenses | 4 x Wave Professional License |
| OS Drive Bays | 2 x 480GB Dual RAID 1 SSD (Internally Mounted) |
| Data Drive Bays | 12 x 3.5" Front Hot Swappable Bays |
| Data Storage | Up to 240TB raw |
| Network Interface | 4 x RJ45 GbE (default), 2 x RJ45 + 2 x 10GbE SFP (optional) |
| Memory | 16GB, 1 x 16GB DDR4 |
| Operating System | Windows 10 IoT Enterprise LTSC 2021 / Windows Server 2022 Standard / Ubuntu 22.04 LTS |
| USB Ports | 1 x USB 2.0 (Front), 1 x USB 2.0 + 1 x USB 3.0 (Rear) |
| Other Ports | Serial |
| Keyboard & Mouse | Included |
| Sliding Rail Kit | Included, with Cable Management Arm |
Dimensions (WxDxH): Weight: | 18.97"(482mm) x 30.39"(772.13mm) x 3.41"(86.8mm) |
53.3 lbs (25.1 kg) * Weight is on chassis without HDD's | |
| Electrical | Power Input: 100 - 240 VAC |
