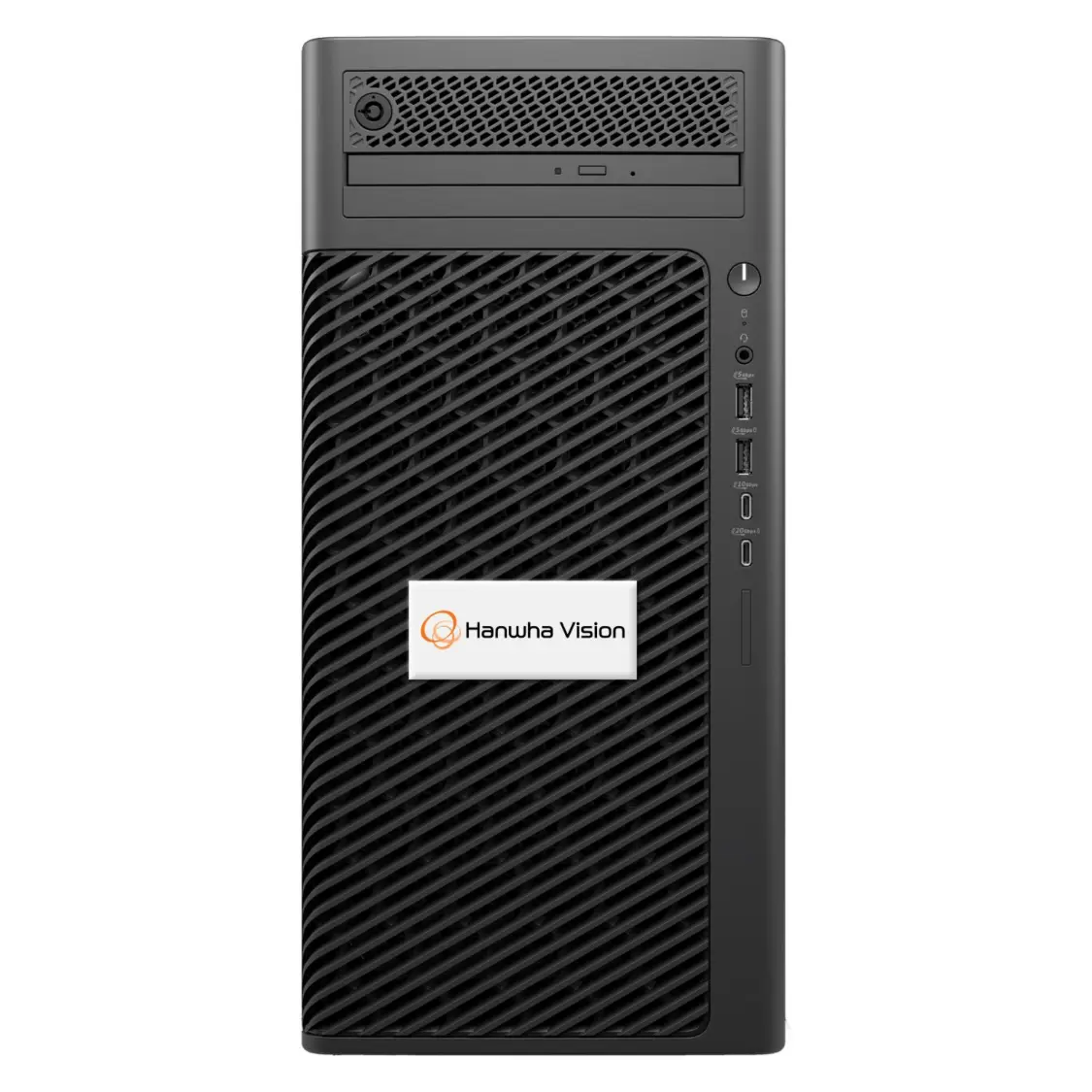

Hanwha - WRT-P-5205L-12TB - Mini-tower form factor Wisenet WAVE Network Video Recorder with 4 Professional licenses, Wisenet WAVE pre-installed, 12TB raw, 470 Mbps recording B/W, (1) 3.5" HDD, Intel Core Ultra 5, 16GB RAM, 512 GB SSD OS Drive, Ubuntu
Part number:
Price:
The WRT-P-5205x series dual purpose Wisenet WAVE server and client is built into a compact mini-tower form running Windows 11 IoT Enterprise LTSC 2024 or Ubuntu Linux 22.04 LTS. This ready to deploy solution can manage up to 470 Mbps of recording throughput and up to 36TB of storage for a single site or as an addition to your existing Wisenet WAVE system. Each comes with Wisenet WAVE VMS and 4 Professional licenses to ensure quick and easy deployment with minimum setup time.
| Recording Bandwidth | Up to 470 Mbps * Bandwidth performance figures based on performance testing by Hanwha Vision using Wave VMS |
| Included Licenses | 4 x Wave Professional License |
| OS Drive Bays | 1 x 512GB M.2 SSD (Internally Mounted) |
| Data Storage | Up to 36TB raw storage |
| Data Drive Bays | 3 x 3.5" Front Hot Swappable Bays |
| Network Interface | 1x 1GbE, 1x 5GbE RJ45 |

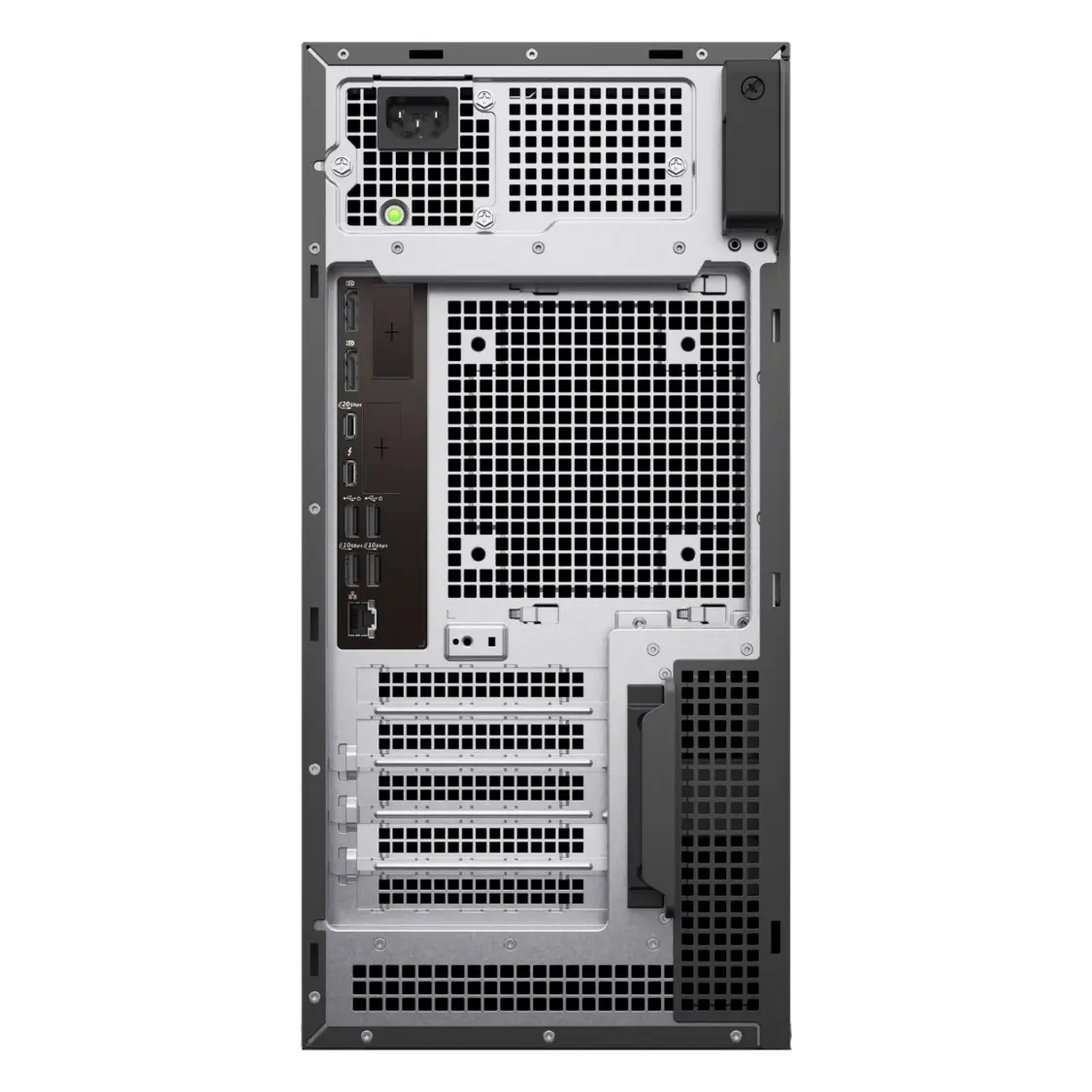

| USB Ports | Front: 2x USB 3.2 Gen1, 1x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen 2x2 Type-C Rear: 2x USB 2.0, 2x USB 3.2 Gen2, 1x USB 3.2 Gen 2x2 Type-C, 1x Type-C Thunderbolt |
| Other Ports | Front: 1x 3.5mm Universal Audio |
| Keyboard & Mouse | Included |
| Memory | 16GB |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 / Ubuntu 22.04 LTS |
| Processor | 1 x Intel Core Ultra 5 |
| Form Factor | mini-tower |
| Color/Material | Black/Metal |
| Dimensions (WxDxH) | 7.40"(187.70mm) x 17.24"(438mm) x 15.24"(387mm) |
| Power Supply | 1500W 80 Plus Platinum |
| Power Input | 100 - 240 VAC |
| Operating Temperature | 50F - 95F (10C - 35C) |
| Storage Temperature | -40F to 149F (-40C to 65C) |
| Operating Humidity | 20% to 85% (non-condensing) |
| Certifications | UL, cUL, CB, FCC, 80 Plus Platinum |
Name
Description
Size
Downloads
File
DataSheet_WRT-P-5205x-Series_EN.pdf
0.4mb
