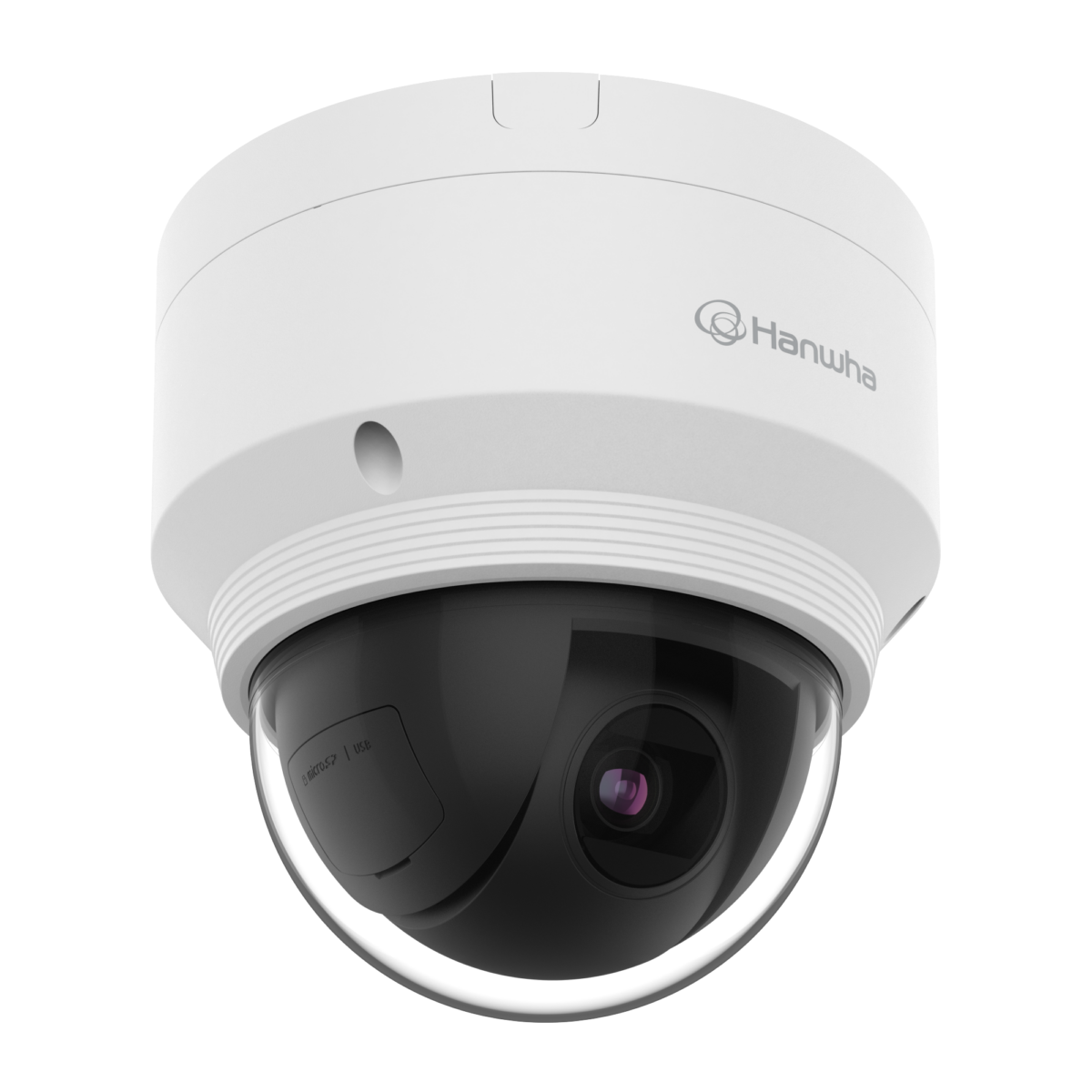

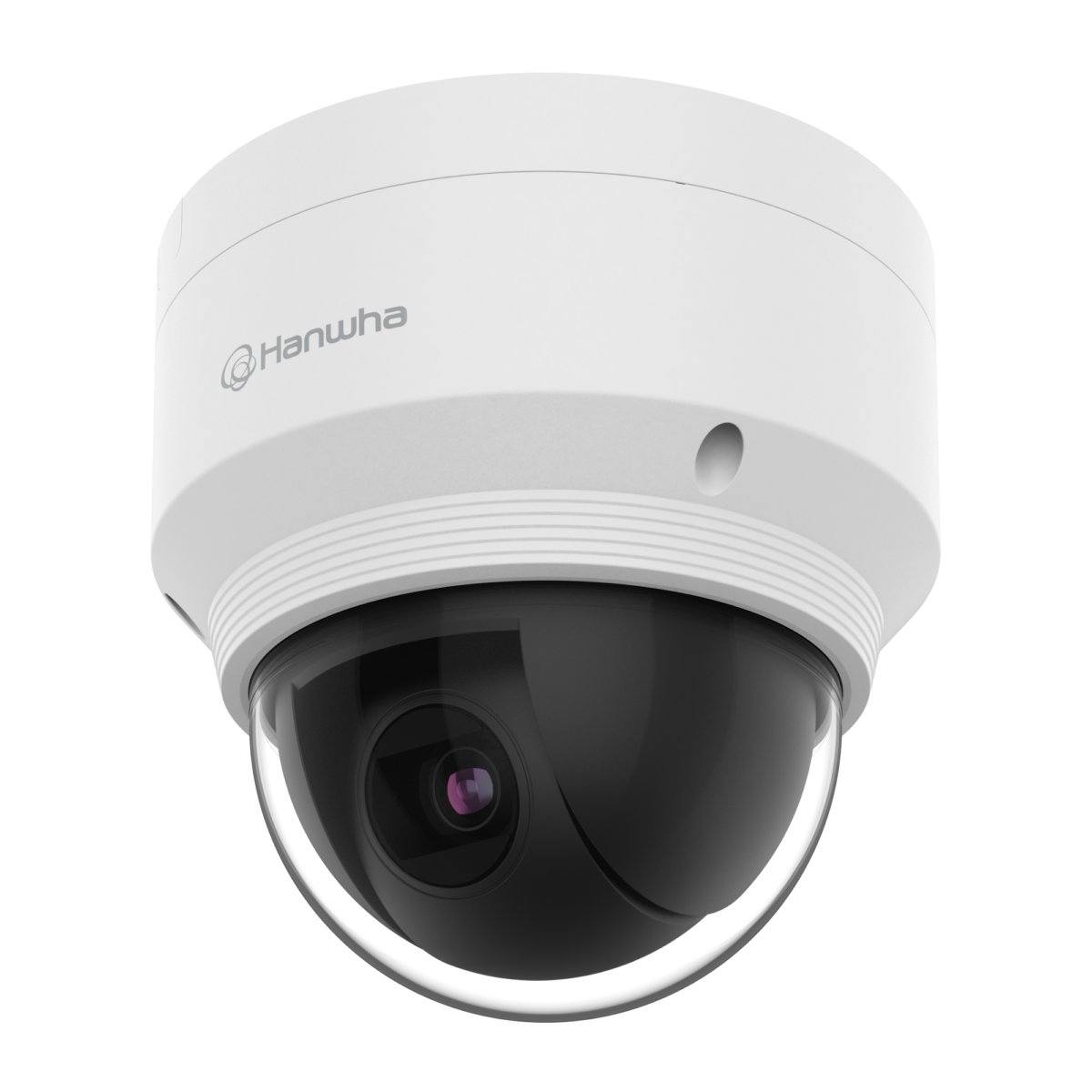

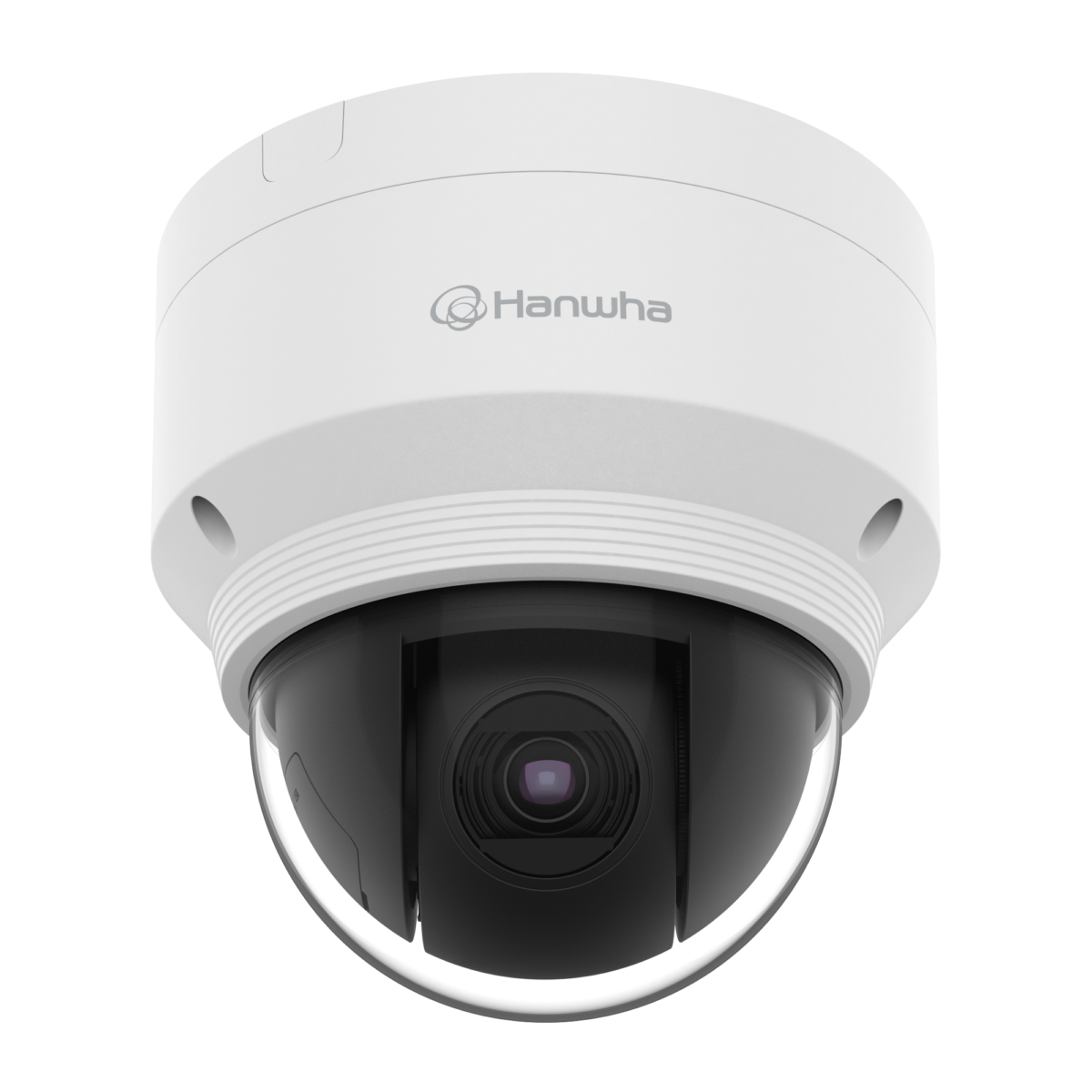

Hanwha - XNP-6120HW - 2MP 12X PTZ Cameras
Part number:
XNP-6120HW
Price:
Wisenet X powered by Wisenet 5 network outdoor PTZ camera, 2MP, Full HD(1080p) @ 60fps, 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), Pan: 360° endless. Tilt: -5°~ 185°, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, true D/N, built-in SD card slot (1x256GB), HLC, defog detection, DIS(Gyro), 12VDC/PoE, IP66, IK10, -22°F ~ 131°F, White.
Features:
- Max. 2 Megapixel (1920 x 1080) resolution
- 16 : 9 Full HD (1080p) resolution support
- 5.2 ~ 62.4mm (12x) optical zoom, 32x digital zoom
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night (ICR), WDR (150dB), Intelligent video analytics
- SD/SDHC/SDXC memory slot (Max.512GB)
- IP66, IK10, Bi-directional audio support
| Video | |
| Imaging Device | 1 /2.8" CMOS |
| Resolution | 1920x1080 , 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480 , 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03 Lux (1/30sec, F1.6, 30IRE) B/W: 0.003 Lux (1/30sec, F1.6, 30IRE) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 5.2~62.4 mm(12x) zoom (digital 32x, total 384x zoom ) |
| Optical Zoom | 12 x |
| Max. Aperture Ratio | F1.6(Wide)~F3.0(Tele) |
| Angular Field of View | H: 54.58(Wide)~5.30(Tele) V: 32.19(Wide)~3.00(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft) |
| Focus Control | AF / One-Shot AF / Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360 Endless |
| Pan Speed | Preset: 350/sec, Manual: 0.024/sec ~ 200/sec |
| Tilt Range | 190(-5 ~185 ) |
| Tilt Speed | Preset: 350/sec, Manual: 0.024/sec ~200/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2 |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150 dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8 ea, 8point polygonal zones |
| Privacy Masking | 32 ea, 4point quadrangle zones
|
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) |
| Supply voltage | 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Auto Tracking | Support |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205 |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1 X Authentication(EAP-TLS, EAP-LEAP ) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1 GB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30 °C~+55°C (-22°F~+131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30 °C~+60°C (-22°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | DC12V, PoE(IEEE802.3af, Class3) |
| Power Consumption | Max. 12W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø168x161.5mm(6.61x6.36"), 1.9kg(4.19 lb) |
| Wall Mount | SBP-168WMW1 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 74.4m(244.2ft) / Tele: 829.7m(2722ft) |
| Observe (63PPM/ 19PPF) | Wide: 29.8m(97.7ft) / Tele: 331.9m(1088.8ft) |
| Recognize (125PPM/ 38PPF) | Wide: 14.9m(48.8ft) / Tele: 165.9m(544.4ft) |
| Identify (250PPM/ 76PPF) | Wide: 7.4m(24.4ft) / Tele: 83.0m(272.2ft) |
