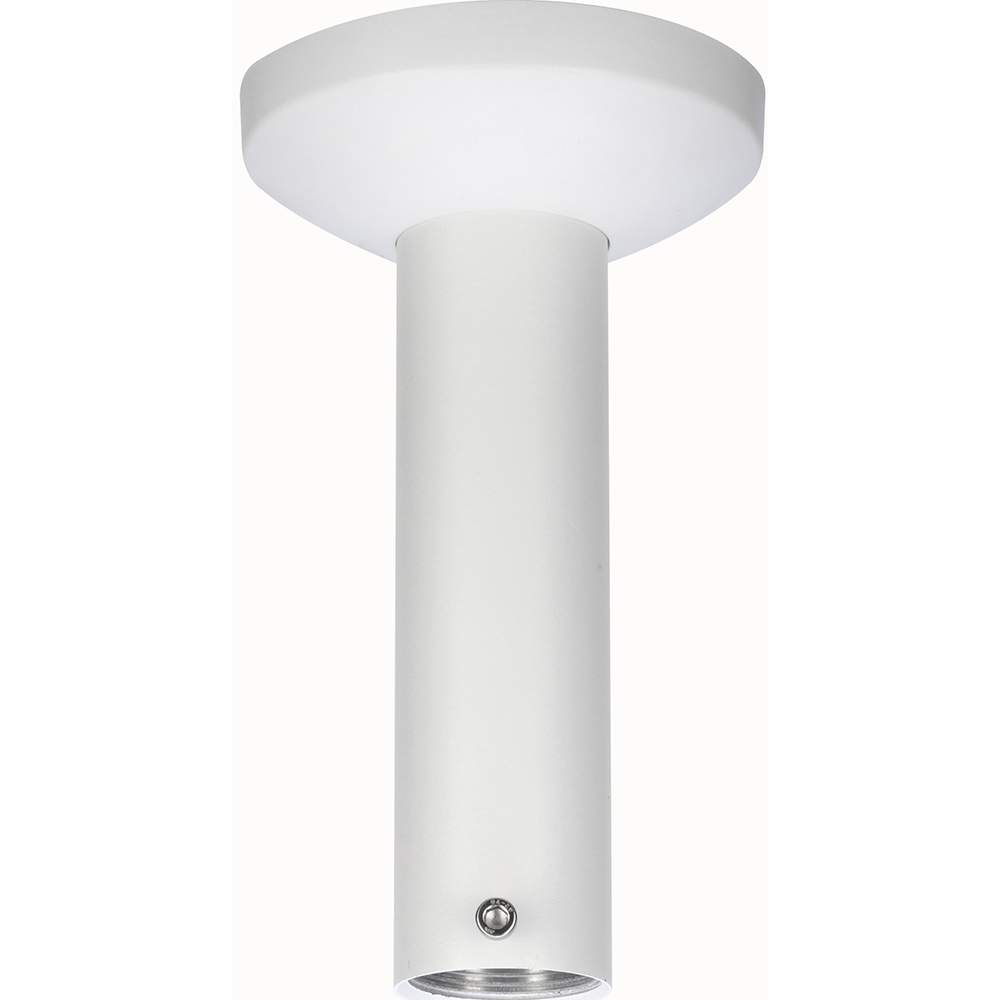

Heavy-duty Ceiling Mount
Features:
- Material: SUS304 Stainless Steel and Polycarbonate
- Color: White
- Dimensions: ø133.60 mm x 235.50 mm (ø5.26 in. x 9.27 in.)
- Weight: 2.20 kg (4.85 lb)
- Load Bearing Capacity: 30.0 kg (66.14 lbs)
- Operating Temperature: –40 °C to 60 °C (–40 °F to 140 °F)
- Humidity: < 90% RH
- Compatibility: DH-PSDW81642M-A360 Multi-sensor with PTZ
| Technical Specifications | |
| Material | SUS304 Stainless Steel and Polycarbonate |
| Dimensions | ø133.60 mm x 235.50 mm (ø5.26 in. x 9.27 in.) |
| Weight | 2.20 kg (4.85 lb) |
| Color | White |
| Pipe Thread | G1 1/2-in. |
| Load Bearing Capacity | 30.0 kg (66.14 lbs) |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | 0% to 90% RH |
| Applicable Models | Camera • DH-PSDW81642M-A360 Multi-sensor with PTZ |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
