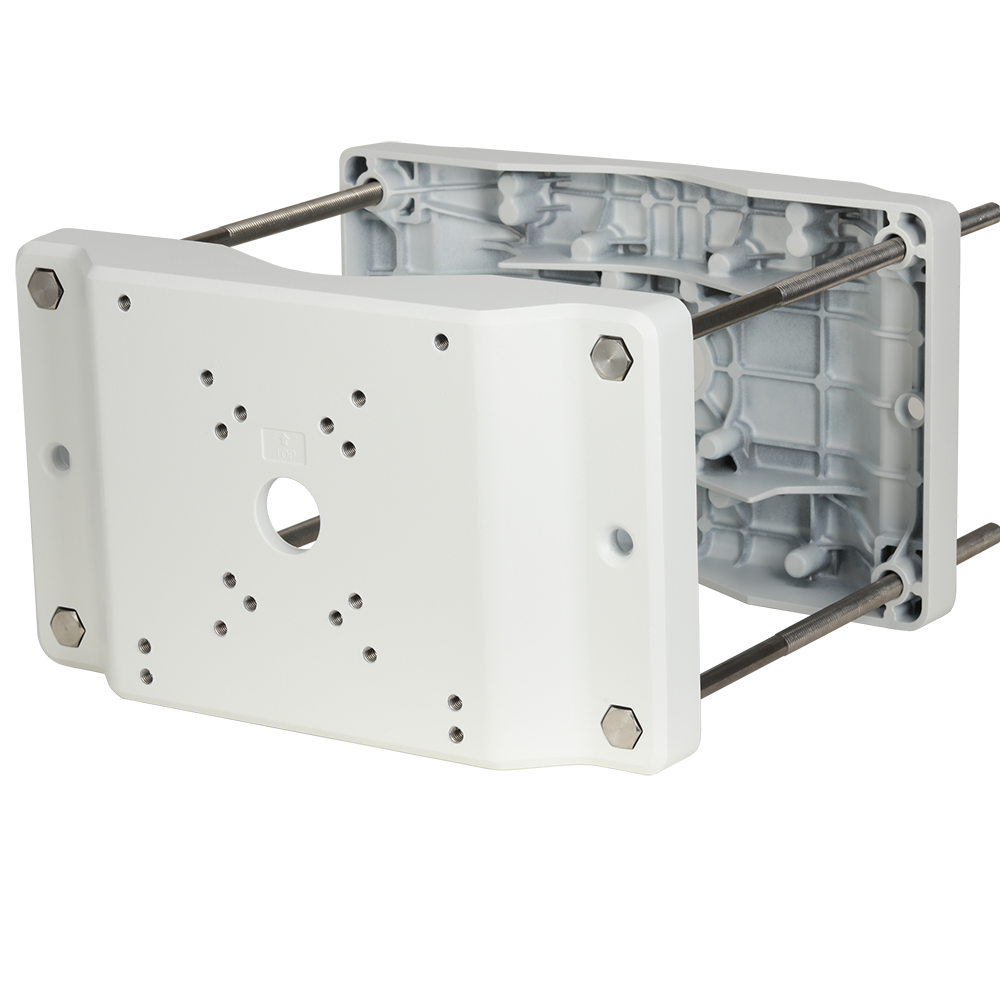

Heavy-duty Pole Mount Bracket
Features:
- Aluminium and Stainless Steel Construction
- High Load Bearing Capacity
- Double-sided Camera Mounts
- Compatible with PTZ Dome Cameras and DH-PFA143 Outdoor Surveillance Junction Box
| Technical Specifications | |
| Material | Aluminum and Stainless Steel |
| Dimensions (W x H x D) | 359.10 mm x 60.0 mm x 213.10 mm (14.14 in. x 2.36 in. x 8.39 in.) |
| Weight | 5.0 kg (11.02 lb) |
| Load Bearing Capacity | 30.0 kg (77.16 lb) |
| Pole/Mast Diameter | ø150.0 mm to ø300.0 mm (ø5.91 in. x 11.81 in.) |
| Color | White |
| Operating Temperature | –40° C to 60° C (–40° F to 140° F) |
| Humidity | 0% to 90% RH |
| Installation | Pole Mount (Compatible with DH-PFA142) |
