Hikvision - HikCentral-P-VSS-Base/HW/300Ch - HikCentral 300 ch Server
Part number:
HikCentral-P-VSS-Base/HW/300Ch
Price:

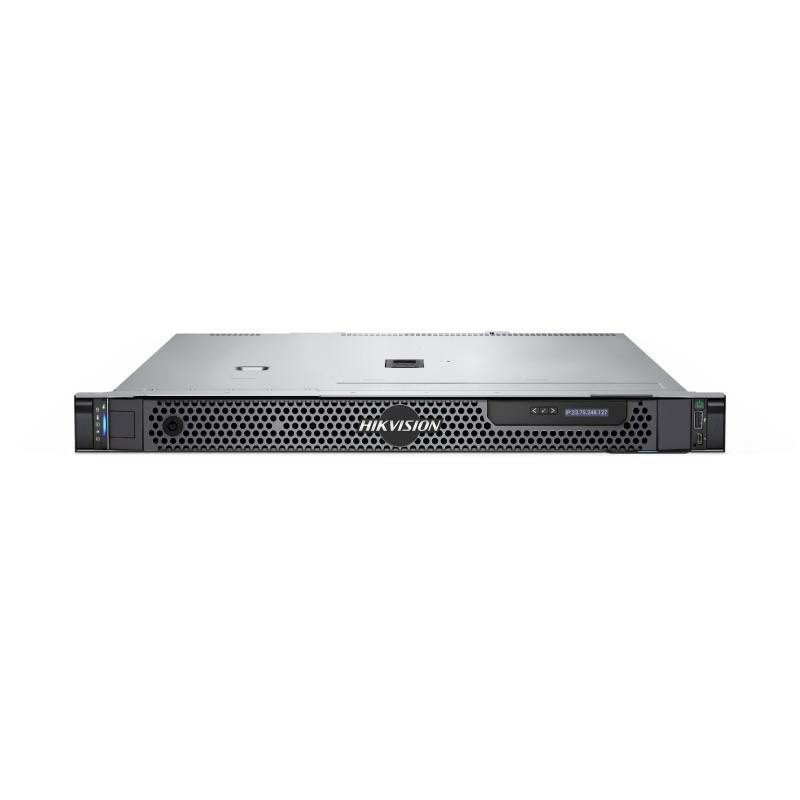

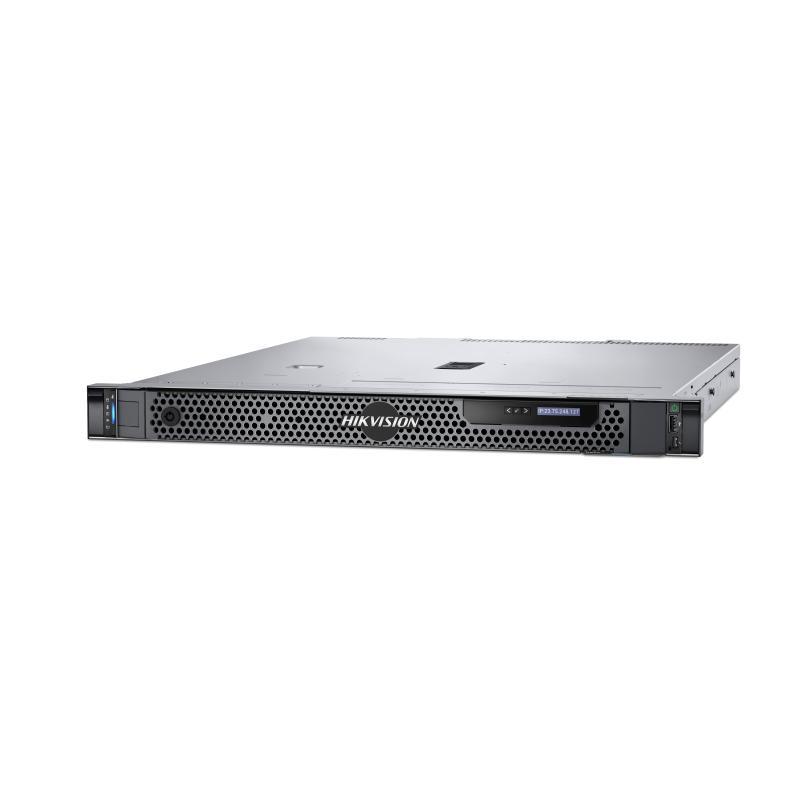

Rackmount VMS Server
Features:
- HikCentral VMS servers combine hardware and software products to give customers a cost-effective and comprehensive solution
- 1) Plug and play: No additional activation is required, and it is ready to use right out of the box
- 2) Easy to use: Pre-installed operating system, easy to operate and deploy
- All-in-one software and hardware, no activation required, easy delivery and reliable service
- 1) Guaranteed compatibility: Tested by professional testing team to ensure stable operation
- 2) Reliable after-sales service: 24/7 platinum after-sales service
| Category | Specification |
|---|---|
| Devices and Resources | |
| Video Management | 300ch by default; expandable to 3000ch (includes ANPR cameras and face capture cameras) |
| Access Controls | Not included; expandable to 1024 (includes doors and outdoor stations) |
| Indoor Station | Not included; expandable to 5000 |
| ANPR Cameras | Not included; expandable to 1024ch |
| Lanes of Entrance & Exit | Not included; expandable to 40 |
| Face Capture Cameras | Not included; expandable to 3000ch |
| Alarm Panel | Not included; expandable to 1024 |
| Smart Walls | Not included; expandable to 32 Smart Walls and 32 decoding devices |
| Attendance | Not included; expandable via extra license |
| Hardware Specifications | |
| CPU | E-2324G×1, 3.1 GHz, 8 MB Cache, 4 Cores, 4 Threads |
| Memory | Standard: 1 × 16GB UDIMM, 3200MT/s; Scalable to 4 × 128GB UDIMM |
| Hard Disks | Standard: 2 × 1TB 3.5" SATA HDD; Scalable to 2 × 22TB 3.5" SATA/SAS HDD |
| Storage Controller | Standard: PERC H355 adaptor LP (RAID 0/1); Compatible: Independent SAS RAID card (RAID 5/10), ≥ 8GB cache |
| Operating System | WinSvr2019 multilingual version pre-installed |
| PCIe Slots | 2 Slots: 1 × X8 Semi-high Gen 4 PCIe, 1 × X8 Semi-high Gen 4 PCIe |
| Remote Management | iDRAC9 Enterprise |
| OpenManage Software | Supports OpenManage Enterprise and Plugins (PowerManager, SupportAssist, Update Manager) |
| Integrations | Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat Ansible |
| Connections | Nagios Core & XI, Micro Focus OMi, IBM Tivoli Netcool / OMNIbus |
| Security | Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter) |

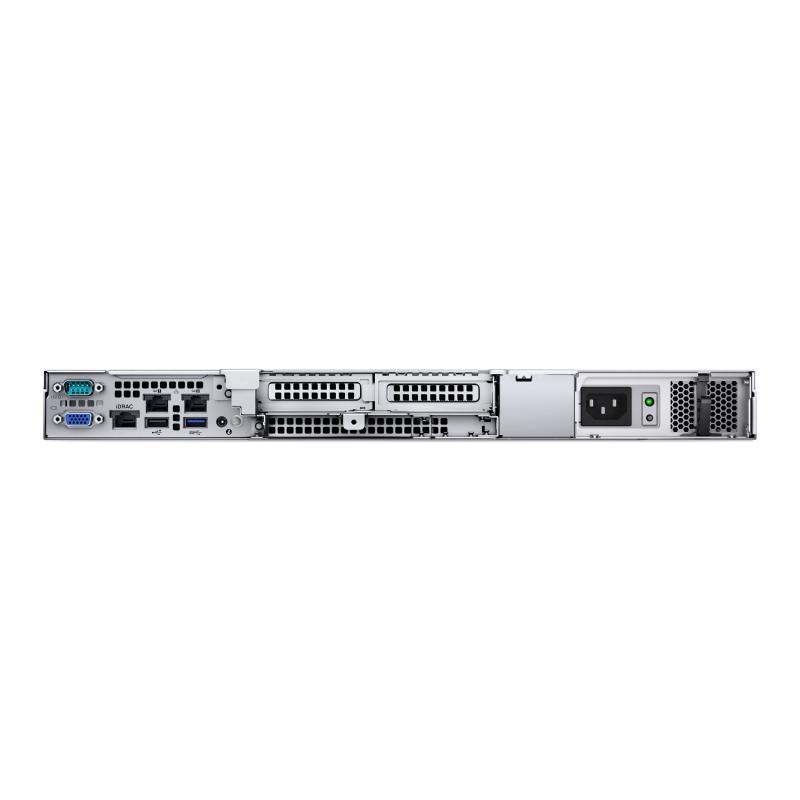

| Ports | |
| USB 3.0 | 0 (Front) + 1 (Rear) |
| USB 2.0 | 1 (Front) + 1 (Rear) |
| Ethernet Port | 2 × LAN 10/100/1000 |
| VGA | 1 |
| iDRAC Direct Port | 1 × Micro-AB USB |
| iDRAC Ethernet Port | 1 |
| Manager Port | 1 |
| General | |
| Net Weight | 12.2 kg (26.9 lb) |
| Gross Weight | 18.5 kg (40.79 lb) |
| Dimensions (W × H × D) | 482.00 × 42.8 × 598.64 mm (18.97'' × 1.68'' × 23.56'') |
| Package Dimensions (W × H × D) | 595.00 × 251.00 × 923.00 mm (23.43'' × 9.88'' × 36.34'') |
| Operating Temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Operating Humidity | 8% to 80% (no condensation) |
| Storage Humidity | 5% to 95% (no condensation) |
| Power Supply | 450 W, 50/60 Hz, 100–240 VAC (Auto adjustment), 6.5–3.5 A |
| Form Factor | 1U Rack |
