Hikvision - EKI-K41B44W - WIFI KIT 4CH1TB 4BL 4MP2.8M
Part number:
EKI-K41B44W
Price:

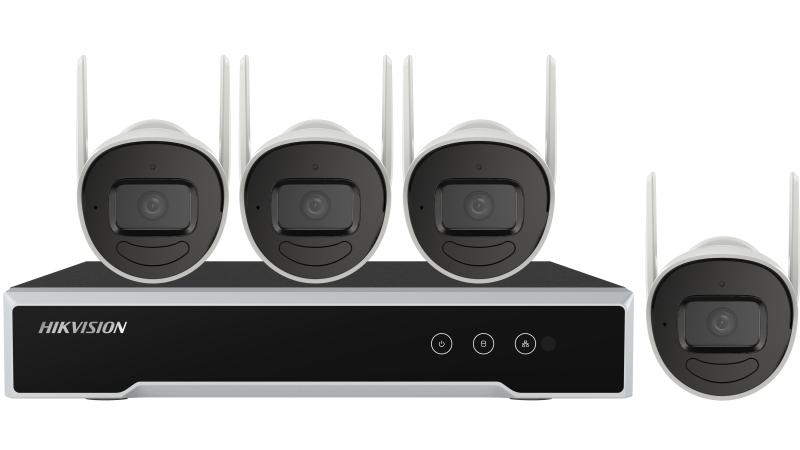

4MP H.265 Bullet WiFi Kit (EKI-K41B44W (E) Wi-Fi Kit)
Features:
- One pack provides everything required for small monitoring scenarios:One 8-ch Wi-Fi NVR with decoding up to 4-ch @ 4MP
- Four 4 MP bullet Wi-Fi cameras with efficient H.265 compression technology
- One network cable
- Pre-install 1TB HDD
- Auto Wi-Fi connection and easy installation
- Hik-Connect cloud service and app for remote management and viewing of devices
| Specification | |
| Camera | |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| Focus | Fixed |
| FOV | horizontal FOV 98°, vertical FOV 54°, diagonal FOV 115° |
| Lens Mount | M12 |
| Camera | |
| IR Range | Up to 30 m |
| Camera | |
| Video Compression | Main stream: H.265/H.264, Sub-stream: H.265/H.264 |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Camera | |
| Max. Resolution | 4MP |
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-stream | 50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360) |
| Image Setting | Saturation, brightness, contrast and sharpness are adjustable via client software and web browser |
| Camera | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Client | iVMS-4200, Hik-Connect |
| Camera | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio I/O | 1 built-in microphone |
| Reset Button | Yes |
| Video Out | No |
| Camera | |
| Power Supply | 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug,reverse polarity protection, |
| Consumption | ≤ 6 W |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 95% or less (non-condensing) |
| Dimension (W × D × H) | 176.3 mm × 89.1 mm × 74.5 mm (6.9" × 3.5" × 2.9") |
| Weight | Approx. 350 g (0.8 lb.) |
| Camera | |
| Camera Case Type | Bullet |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day &Night | IR cut filter |
| WDR | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Protection Level | IP66 |
| Material | Base: Metal, front cover: Metal, back cover: Plastic |
| Wi-Fi Support | Yes |
| NVR | |
| IP Video Input | 8-ch |
| Incoming/Outgoing Bandwidth | 50 Mbps/40 Mbps |
| HDMI/VGA Output | 1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (linear, 1 KΩ) |
| NVR | |
| Video Resolution | 4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 8-ch |
| Capability | 4-ch@4 MP (12 fps)/4-ch@1080p (25 fps) |
| NVR | |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Network Protocol | IPv6, UPnP™, NTP, SADP, DHCP |
| Remote Connection | 16 |
| NVR | |
| Frequency Band | 2.4 GHz |
| Antenna Structure | 2 × 2MIMO |
| Transmission Speed | 144 Mbps |
| Transmission Standard | IEEE 802.11b/g/n |
| NVR | |
| SATA | 1 |
| Capacity | Up to 6 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| NVR | |
| Power Supply | 12 VDC, 1.6 A |
| Consumption (without HDD and PoE off) | ≤ 10 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 265 × 246 × 48 mm (10.4" × 9.7" × 1.9") |
| Weight (without hard disk) | ≤ 1.6 kg (without HDD, 3.5 lb.) |
| Kit | |
| Accessories | Power adaptor: 4 × IPC power adaptors, 1 × NVR power adaptor Ethernet cable: RJ45, Cat5e UTP, 1 m. |
| Hard Drive | -1T:Pre-installed 1 TB HDD |
| Certification | CE |
| Weight (with package) | ≤ 7 kg (15.4 lb.) |
