HIKVISION - AE-VC122T-ITS(3.6mm) - Mobile,TVI,720P,Indoor,Mic
Part number:
AE-VC122T-ITS(3.6mm)
Price:

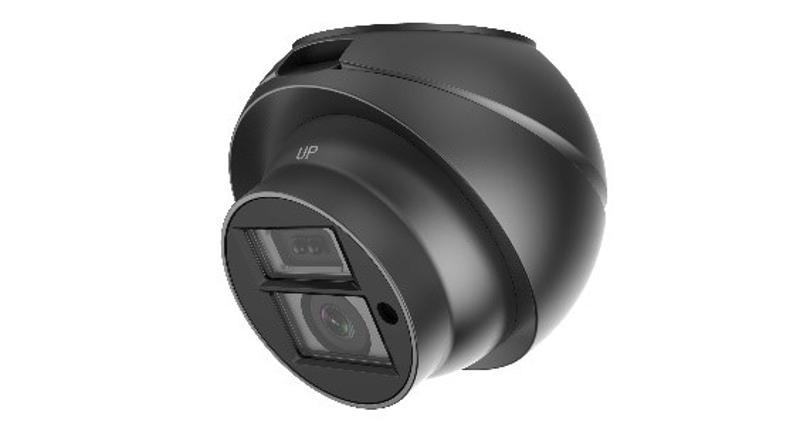

720P 1/2.9”CMOS infrared array conch analog camera
Features:
- Progressive Scan CMOS
- Turbo HD output, up to 720P resolution
- 0.1Lux @(F1.2,AGC ON),0 Lux with IR
- Adopt wide-angle lens with wider monitoring coverage
- Support electronic shutter and AGC
- Patented universal regulating mechanism, easy to adjust
- Anti-vibration design and aviation port for mobile environments
- Built-in microphone
| Specification | |
| Camera | |
| Angle Adjustment | Pan:0° - 60°; Tilt:0° - 50°; Rotation:0° - 360° |
| Shutter Speed | 1/25(30)s to 1/50,000s |
| Day & Night | Electronic |
| Lens | |
| Lens Mount | M12 |
| Video | |
| Frame Rate | 720P@25fps, 720P@30fps |
| Interface | |
| Video Output | TVI |
| Built-in Microphone | Yes |
| Audio | 1-ch audio interface(Aviation plug) |
| Supplement Light Unit | |
| Power Supply | 9 to 16 V DC |
| Power Consumption | Max. 3.5W |
| General | |
| Camera Dimension | 74mm×64.47mm×71.16mm |
| Startup and Operating Conditions | -40 °C to 75 °C , Humidity 90% or less (non-condensing) |
