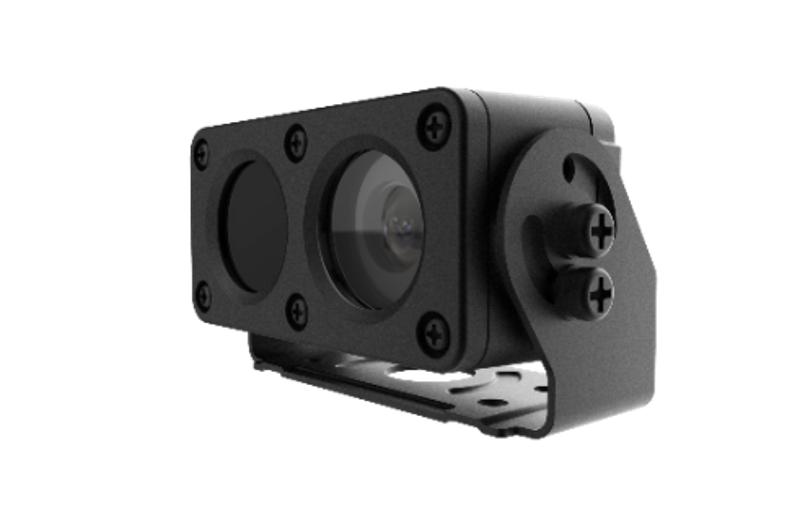

HIKVISION - AE-VC253T-IT(2.1mm) - Mobile Analog Outside Cam
Part number:
AE-VC253T-IT(2.1mm)
Price:
1080P 1/2.9”CMOS infrared array square analog camera
Features:
- Progressive scan CMOS
- Up to 1080P resolution
- Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
- Supports auto electronic day & night switch
- Supports auto white balance
- Supports left & right mirror mode
- IP 68 protection level
| Specification | |
| Selection Parameter | |
| Min. Illumination | 0.1 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Protection Level | IP68 |
| Case Type | Square camera |
| Resolution | 1920×1080 |
| Lens Type | Fixed focal lens, 2.1, 2.8optional |
| FOV | 2.1 mm, horizontal FOV 98°, vertical FOV 81°, diagonal FOV 125° 2.8 mm, horizontal FOV 96°, vertical FOV 51°, diagonal FOV 115° |
| Sensor | Progressive Scan CMOS |
| IR Distance | 15m |
| Camera | |
| Shutter Speed | 1/25 s to 1/50,000 s |
| P/N | P (Default format is PAL and support switching to NTSC) |
| Wide Dynamic Range | 85dB |
| Day ＆ Night | Electronic |
| Lens | |
| Lens Mount | M12 |
| Video | |
| Frame Rate | 1080P@25 fps |
| Image | |
| SNR | 42 dB |
| Interface | |
| Video Output | TVI |
| Built-in Microphone | No |
| Built-in Speaker | No |
| Audio | No |
| Interface Style | 1 Vpp Composite Output (aviation plug) 1: video, 2: empty, 3: power, 4: ground |
| Supplement Light Unit | |
| Power Supply | 9 to 16 V DC |
| Power Consumption | Max. 2.5 W |
| General | |
| Camera Material | Metal |
| Camera Dimension | 83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64") |
| Startup and Operating Conditions | -40 °C to 75 °C (-40 °F to 167 °F), 90% |
