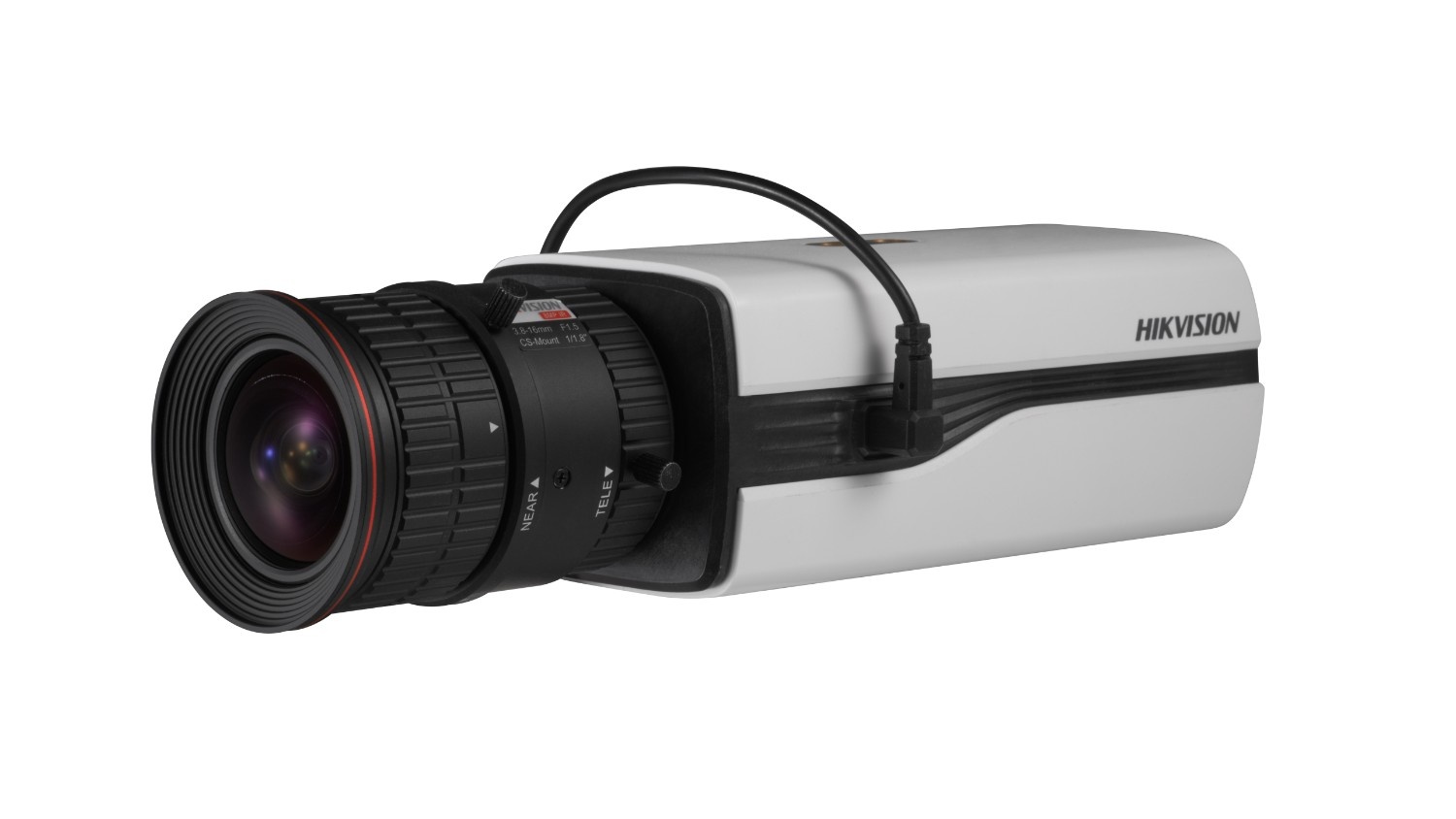

HIKVISION - DS-2CC12D9T-A - BX 1080P TURB UTC DN
Part number:
DS-2CC12D9T-A
Price:
2 MP Box Camera
Features:
- 2 MP high performance box camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Dual outputs (HDTVI and CVBS signals output simultaneously)
| Specification | |
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Max. Resolution | 1944(H)x1092(V) |
| Min. Illumination | 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30)s to 1/50,000s |
| Day & Night | ICR |
| Application | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Lens | |
| Lens Type | Fixed Lens |
| Lens Mount | C/CS mount |
| Iris Type | DC drive |
| Image | |
| Image Settings | HSBLC, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM, LSC (Lens Shading Correction) |
| Frame Rate | 1080p@25fps/1080p@30fps |
| Day/Night Mode | Color/BW/EXT |
| Wide Dynamic Range (WDR) | 120dB |
| SNR | >62dB |
| Image Enhancement | BLC |
| Privacy Mask | On/Off, maximum 8 zones |
| White Balance | ATW, AWC-SET, Manual |
| AGC | Support |
| Interface | |
| Video Output | TVI&CVBS |
| Alarm | -A: 1 Alarm input; 1 Alarm output |
| Event | |
| Motion Detection | On/Off, maximum 4 zones |
| General | |
| Dimension | 69.2×57.3×148.7mm(2.7” × 2.3” × 5.85”) |
| Weight | 520 g |
| Operating Condition | -30 °C – 60 °C (-22 °F – 140 °F), Humidity 90% or less (non-condensing) |
| Communication | Up the coax, Protocol: HIKVISION-C(TVI output) |
| Language | English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic |
| Power Supply | 12 VDC±15%, -A: 24V±15% AC, 12V±15% DC |
| Consumption | Max. 4W, -A: Max. 6W |
