HIKVISION - DS-2CD2125FWD-I 4mm - DM IP67 2M 4MMWDREXIRPOE/12
Part number:
DS-2CD2125FWD-I 4mm
Price:

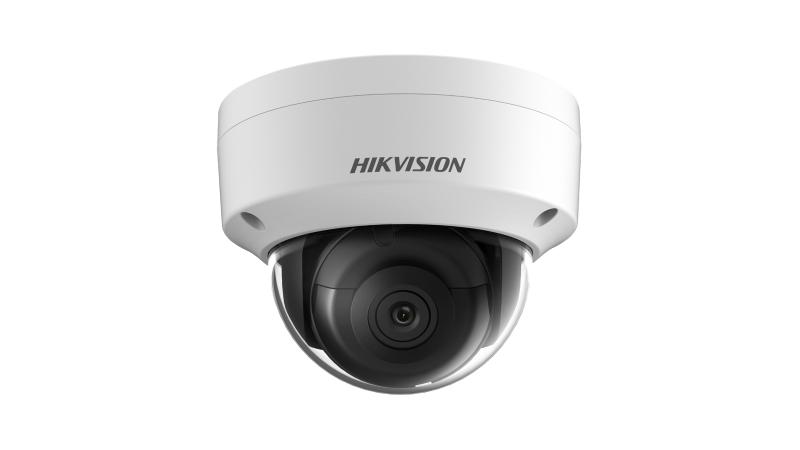

2 MP Powered-by-DarkFighter Fixed Dome Network Camera
Features:
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal proof (IK10)
- Robust structure design with full metal materials.
| Specification | |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Lens | |
| Focus | Fixed |
| Lens Type | 2.8/4/6/8/12 mm |
| FOV | 2.8 mm: 108°; 4 mm: 86.4°; 6 mm: 52°; 8 mm: 41°; 12 mm: 25° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | 30 m |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) |
| Video Compression | Main: H.265/H.264; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region of Interest (ROI) | 1 fixed region for main and sub-stream separately |
| Audio | |
| Audio Compression | G722.1/G.711/G726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps (G.711); 16Kbps (G.722.1/G.726); 32–192Kbps (MP2L2); 8–320Kbps (MP3) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S/G/T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | Password protection, HTTPS, 802.1X (EAP-TLS 1.2, LEAP, MD5), watermark, IP filter, HTTP/HTTPS digest, ONVIF auth, TLS1.2 |
| Network Storage | Micro SD/SDHC/SDXC (up to 128G), NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in (IE8+); Plug-in-free (Chrome 57+, Firefox 52+, Safari 11+); Local (Chrome 41+, Firefox 30+) |
| Alarm Trigger | Motion detection, tampering, network disconnect, IP conflict, HDD full/error, PIR, illegal login |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule |
| DNR | 3D DNR |
| Image Enhancement | BLC, 3D DNR, HLC |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, AGC, white balance (via client/web) |
| Interface | |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| Hardware Reset | Yes |
| Communication Interface | 1 × RJ45 10M/100M Ethernet |
| Event | |
| Smart Event | Line crossing, intrusion, baggage detection, object removal |
| Face Detection | Yes |
| Exception Detection | Scene change |
| General | |
| Firmware Version | V5.5.80 |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP filter |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F), Humidity ≤ 95% (non-condensing) |
| Power Consumption | 12 VDC ± 25%, 5 W; PoE (802.3af, 36–57V, class 3), 6.5 W |
| Camera Dimension | Camera: Φ111 × 82.4 mm (4.4″ × 3.2″); Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
| Camera Weight | 500 g (1.1 lb.) |
