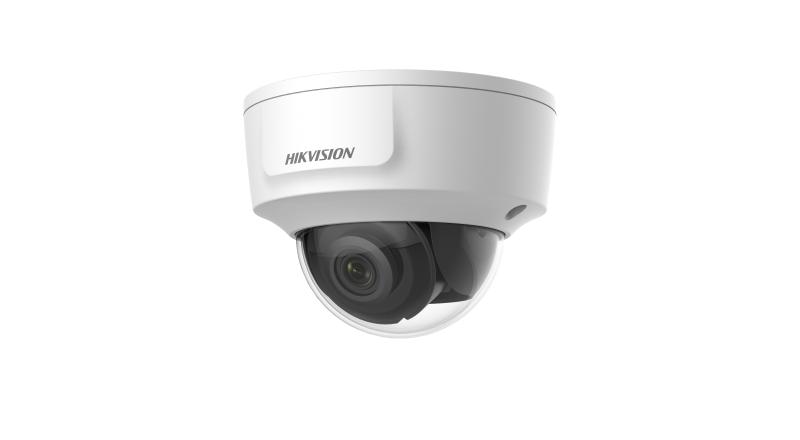

HIKVISION - DS-2CD2185G0-IMS 2.8mm - DM 8MP28MM HDMI WDR POE/12
Part number:
DS-2CD2185G0-IMS 2.8mm
Price:
4K HDMI Fixed Dome Network Camera
Features:
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Direct HD live view with HDMI output
- Vandal proof (IK10)
- Robust structure design with full metal materials.
| Specification | |
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Lens Type | 2.8/4/6 mm |
| FOV | 2.8 mm: H: 102°, V: 53°, D: 124°; 4 mm: H: 79°, V: 42°, D: 95°; 6 mm: H: 50°, V: 28°, D: 59° |
| Aperture | F2.0 |
| Lens Mount | Φ12 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 20fps (3840×2160), 25fps (3072×1728, 1920×1080, 1280×720); 60Hz: 20fps (3840×2160, 3072×1728, 1920×1080, 1280×720) |
| Sub Stream | 50Hz: 25fps (640×480, 640×360, 320×240); 60Hz: 20fps (640×480, 640×360, 320×240) |
| Video Compression | Main stream: H.265/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | No |
| H.265+ | No |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHz/48kHz |
| Audio Compression | G722.1/G.711/G726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32–192Kbps(MP2L2)/8–320Kbps(MP3) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, G, T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS, WebSocket, etc. |
| User/Host | Up to 32 users; 3 levels: Administrator, Operator, User |
| Security | Password protection, HTTPS encryption, 802.1X, watermark, IP filter, HTTP/HTTPS & ONVIF authentication, TLS1.2 |
| Network Storage | microSD/SDHC/SDXC (128 GB), NAS (NFS, SMB/CIFS), ANR, card encryption & health detection |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in: IE8+; Plug-in free: Chrome 57+, Firefox 52+, Safari 11+; Local Service: Chrome 41+, Firefox 30+ |
| Alarm Trigger | Motion detection, video tampering, network issues, illegal login, HDD full/error |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule/Alarm Triggered |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance (adjustable via client/browser) |
| Interface | |
| Audio | 1 input (line in/mic in), 1 output (mono, terminal block) |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| Video Output | 1 HDMI™, type D, female plug (-M) |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| Event | |
| Smart Event | Line crossing detection, intrusion detection |
| Face Detection | Yes |
| General | |
| General Function | Anti-flicker, heartbeat, mirror, privacy masks, password reset via email, pixel counter, HTTP listening |
| Operating Conditions | IR on: -10°C to 40°C; IR off: -10°C to 50°C; Humidity: ≤95% non-condensing |
| Power Supply | 12 VDC ± 25%, Φ5.5 mm power plug, PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.6 A, max. 7 W; PoE: 36–57 V, 0.3–0.2 A, max. 8.5 W |
| Camera Dimension | Φ119 × 90 mm (Φ4.7" × 3.5") |
| Camera Weight | Approx. 520 g (1.1 lb.); with package: approx. 750 g (1.7 lb.) |
| Approval | |
| Protection | IK10 |
