HIKVISION - DS-2CD2643G2-IZS - BLT IP67 4MP 2.8-12MZ WDR IR
Part number:
DS-2CD2643G2-IZS
Price:

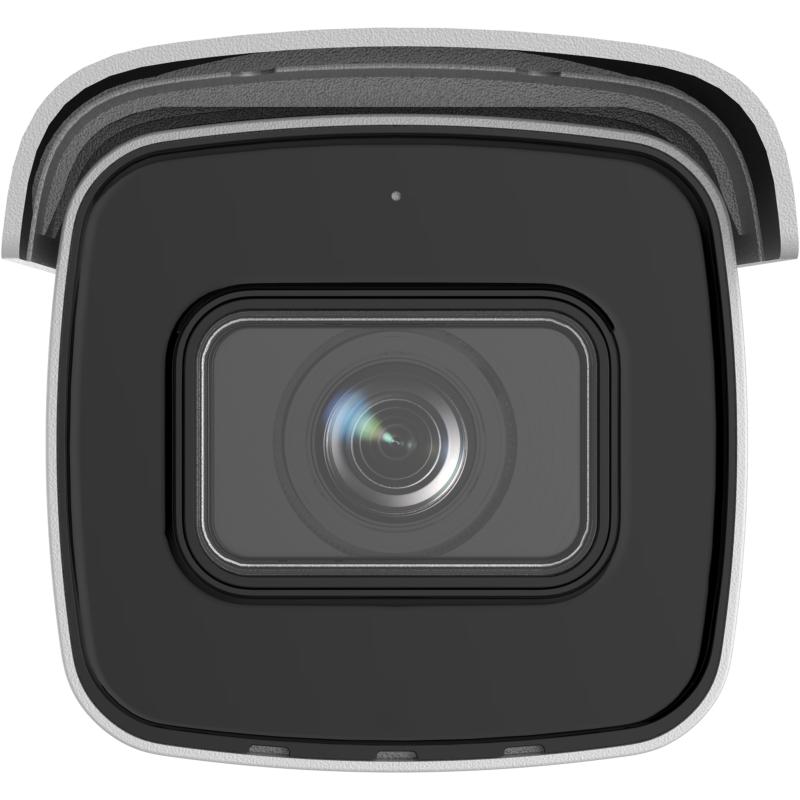

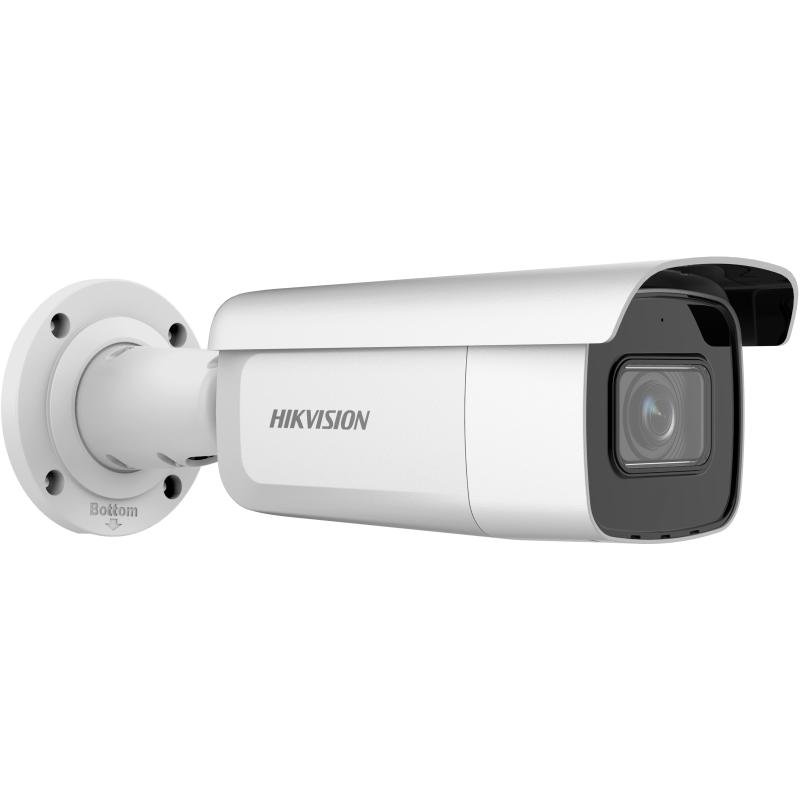

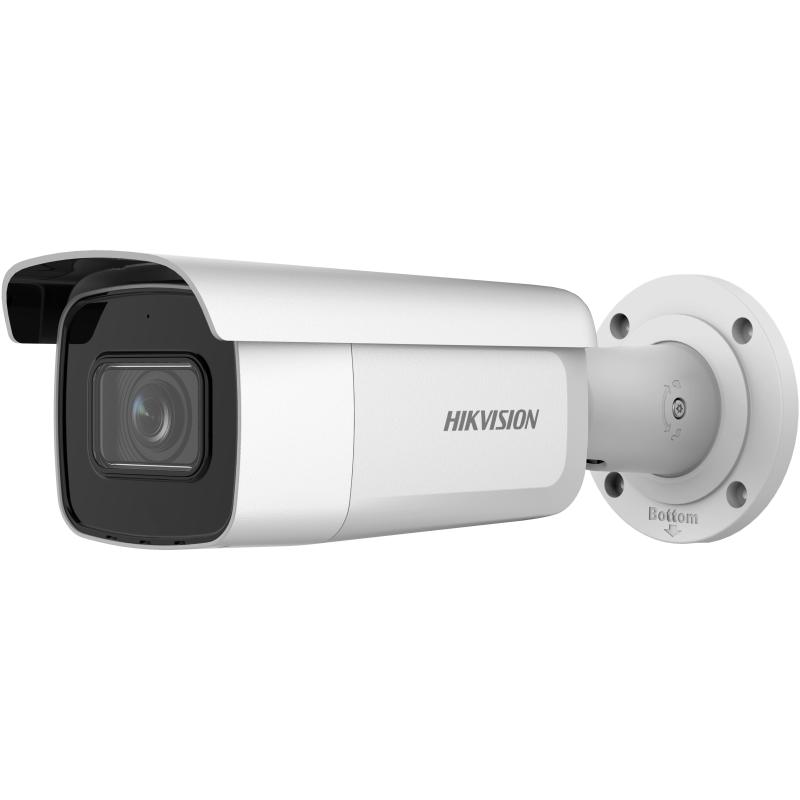

4 MP AcuSense Motorized Varifocal Bullet Network Camera
Features:
- High quality imaging with 4 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Focus on human and vehicle targets classification based on deep learning
| Specification | |
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens | |
| Focal Length & FOV | 2.8 to 12 mm, Horizontal: 95.8°–29.2°, Vertical: 50.6°–16.4°, Diagonal: 114.6°–33.4° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | D: 64–200 m, O: 25.4–79.4 m, R: 12.8–40 m, I: 6.4–20 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50Hz: 25 fps; 60Hz: 30 fps @ 2688×1520, 1920×1080, 1280×720 |
| Sub-Stream | 50Hz: 25 fps; 60Hz: 30 fps @ 1280×720, 640×480, 640×360 |
| Third Stream | 50/60Hz: 10 fps @ 1920×1080, 1280×720, 640×480, 640×360 |
| Video Compression | H.265/H.264/H.264+/H.265+ (main), MJPEG (sub) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding | Yes |
| ROI | 1 fixed region for main and sub-stream |
| Audio | |
| Audio Compression | G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | Varies by codec: 8–320 Kbps |
| Audio Sampling Rate | 8/16/32/44.1/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, NTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S/G), ISAPI, SDK |
| User/Host | Up to 32 users, 3 access levels |
| Security | HTTPS, IP filter, Audit log, TLS 1.1/1.2, Digest, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE10/11 (plug-in), Chrome/Firefox/Edge (plug-in free) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate, mirror, privacy mask, brightness, etc. |
| Day/Night Switch | Day, Night, Auto, Schedule |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet | 1 RJ45 10M/100M self-adaptive |
| On-Board Storage | MicroSD, up to 512 GB |
| Audio I/O | 1 input (line-in), 1 output (line-out), terminal block |
| Alarm I/O | 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human/vehicle), video tampering, etc. |
| Smart Event | Line crossing, intrusion, face detection |
| Linkage | Upload, notify, trigger record/capture, Email |
| General | |
| Power | 12 VDC ±25%, max. 13 W; PoE 802.3at, max. 15 W |
| Dimensions | 308.5 × 97.9 × 93 mm |
| Package Dimensions | 385 × 190 × 180 mm |
| Weight | 1390 g |
| With Package Weight | 1961 g |
| Storage Conditions | -30 °C to 60 °C, Humidity ≤ 95% |
| Operating Conditions | -30 °C to 60 °C, Humidity ≤ 95% |
| Language Support | 33 languages including English, Spanish, Chinese, etc. |
| General Functions | Anti-flicker, heartbeat, password reset, pixel counter |
| Approval | |
| EMC | FCC, CE-EMC, RCM, IC, KC |
| Safety | UL, CB, CE-LVD, BIS |
| Environment | CE-RoHS, WEEE, REACH |
| Protection | IP67, IK10 |
