HIKVISION - DS-2CD2647G2-LZS - OTBL VF 4MP 24Hr*7color mic
Part number:
DS-2CD2647G2-LZS
Price:

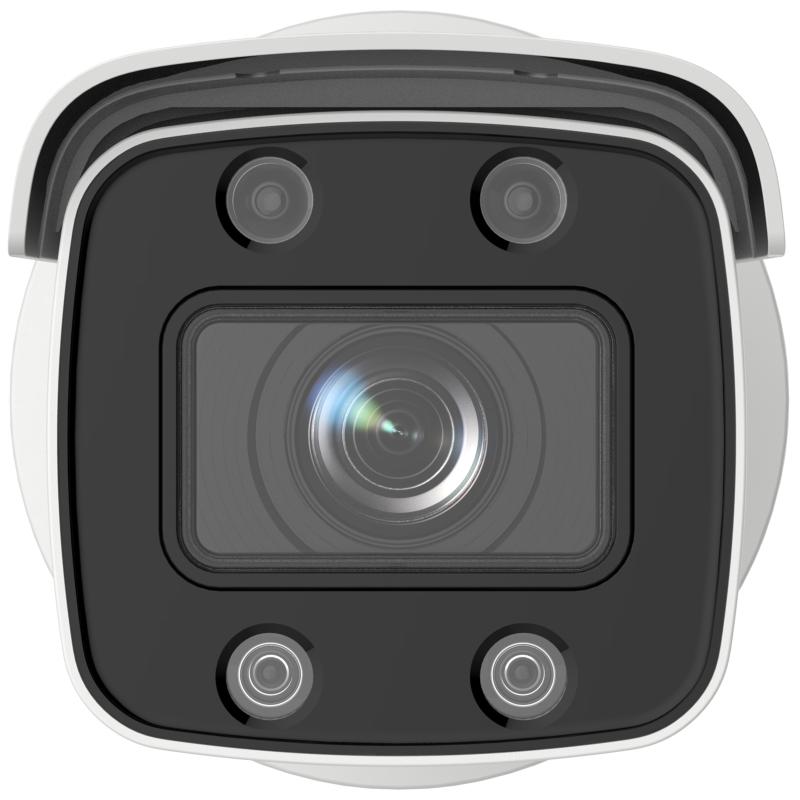

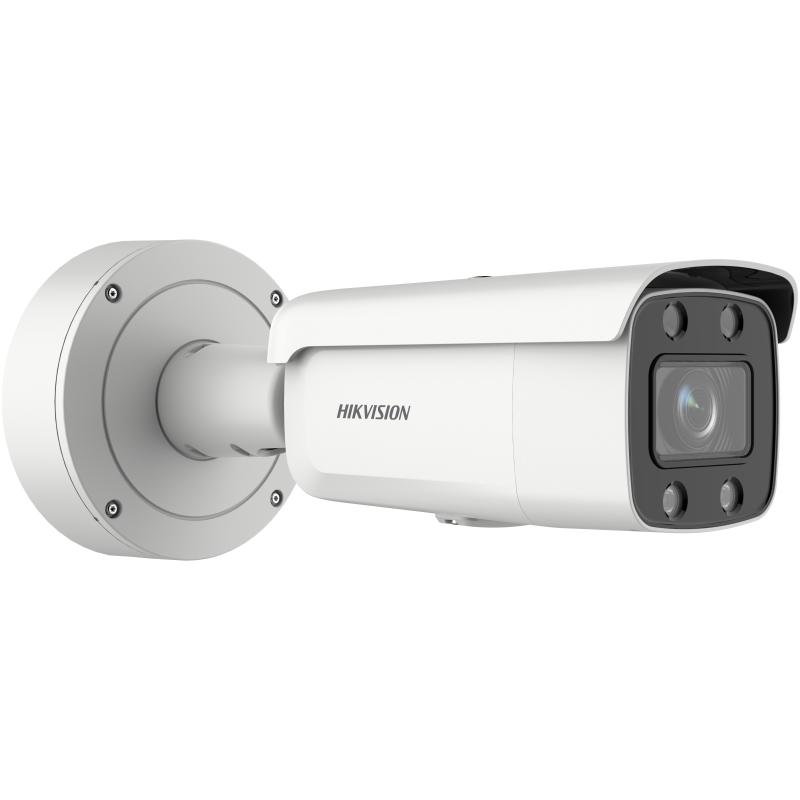

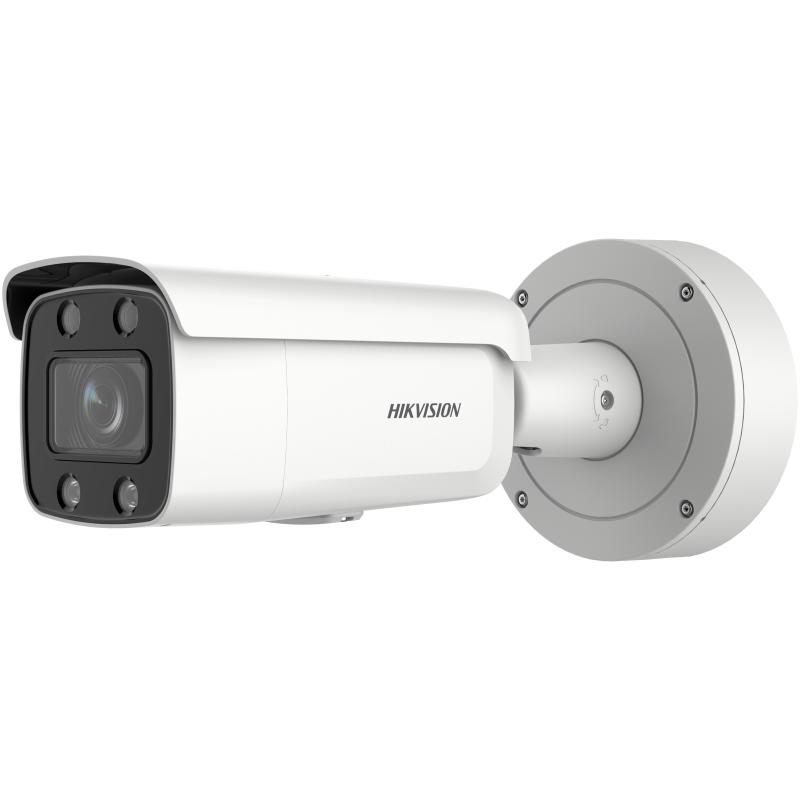

4 MP ColorVu Motorized Varifocal Bullet Network Camera
Features:
- High quality imaging with 4 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- 24/7 colorful imaging
- Clear imaging against strong backlight due to 130 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
| Specification | |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 3.6 to 9 mm |
| Focal Length & FOV | 3.6 to 9 mm, H: 92.3°–48°, V: 48.4°–27°, D: 112.2°–55° |
| Lens Mount | Ø20 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI | D: 69–124 m, O: 27.4–49.3 m, R: 13.8–24.8 m, I: 6.9–12.4 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 25/30 fps @ 2688×1520, 1920×1080, 1280×720 |
| Sub-Stream | 25/30 fps @ 1280×720, 640×480, 640×360 |
| Third Stream | 10 fps @ 1920×1080, 1280×720, 640×480, 640×360 (certain settings) |
| Video Compression | Main: H.265/H.264/H.265+/H.264+Sub: H.265/H.264/MJPEGThird: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| SVC | H.265 and H.264 |
| ROI | 1 fixed region for main and sub-stream |
| Audio | |
| Audio Compression | G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | Varies (8–320 Kbps depending on codec) |
| Audio Sampling Rate | 8/16/32/44.1/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, RTSP, SNMP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S/G/T), ISAPI, SDK |
| User/Host | Up to 32 users, 3 levels |
| Security | HTTPS, IP filtering, TLS 1.1/1.2, Audit Logs, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), ANR, memory card encryption |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE 10/11 (plug-in), Chrome/Firefox/Edge (plug-in free) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, contrast, brightness, etc. |
| Day/Night Switch | Auto, Schedule |
| WDR | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet | 1 RJ45 10/100M self-adaptive |
| On-Board Storage | microSD/microSDHC/microSDXC up to 512 GB |
| Audio | 1 input, 1 output (3.5 mm, non-equilibrium) |
| Alarm | 1 input, 1 output (24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion, video tamper, exception |
| Smart Event | Line crossing, intrusion, region entrance/exit, scene change |
| Linkage | Upload, email, capture, recording |
| Deep Learning Function | Face Capture |
| General | |
| Power | 12 VDC ±25%, max. 14.5 W; PoE 802.3at, max. 18 W |
| Dimension | 327.9 × 97.9 × 90.9 mm (12.9" × 3.9" × 3.6") |
| Package Dimension | 385 × 190 × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | Approx. 1520 g (3.4 lb) |
| With Package Weight | Approx. 2521 g (5.6 lb) |
| Storage Conditions | -30 °C to 60 °C, 95% RH (non-condensing) |
| Operating Conditions | -30 °C to 60 °C, 95% RH (non-condensing) |
| Language | 33 languages including English, Chinese, Spanish, etc. |
| General Function | Anti-flicker, privacy mask, heartbeat, email password reset |
| Approval | |
| EMC | FCC, CE-EMC, RCM, IC, KC |
| Safety | UL, CB, CE-LVD, LOA |
| Environment | RoHS, WEEE, REACH |
| Protection | IP67, IK10 |
