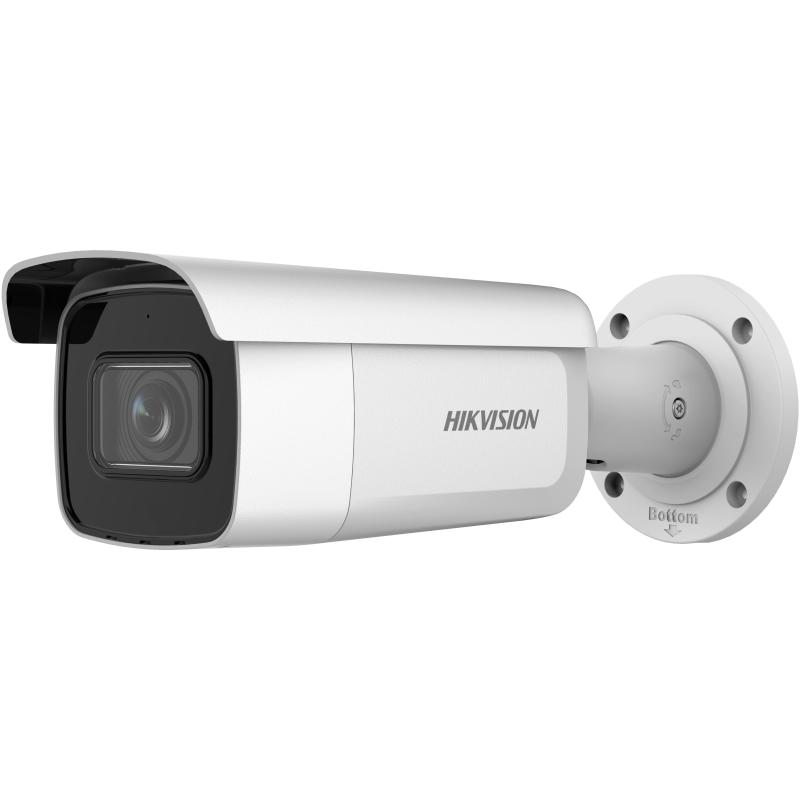

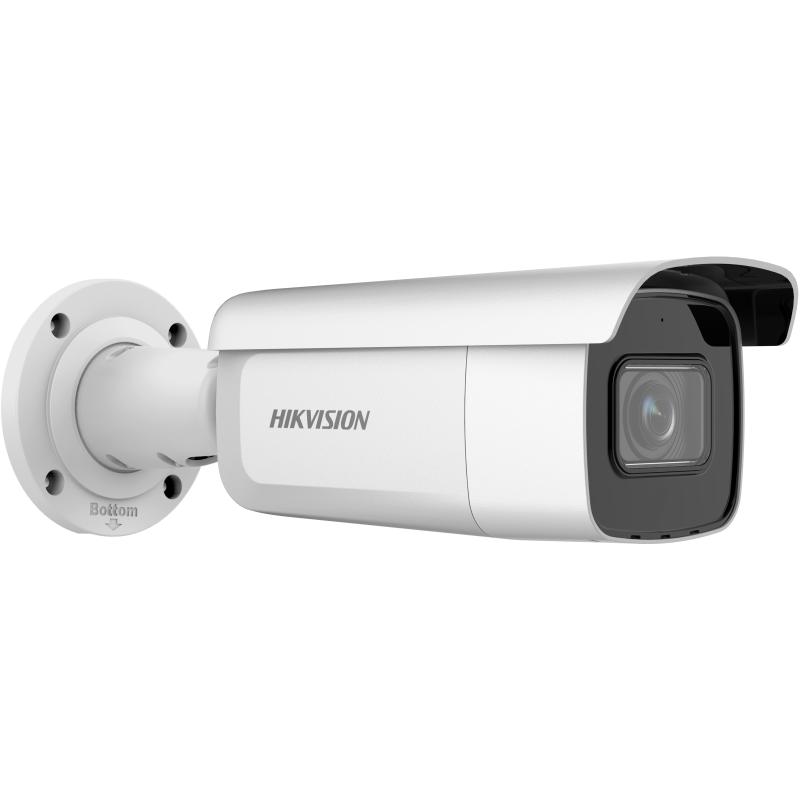

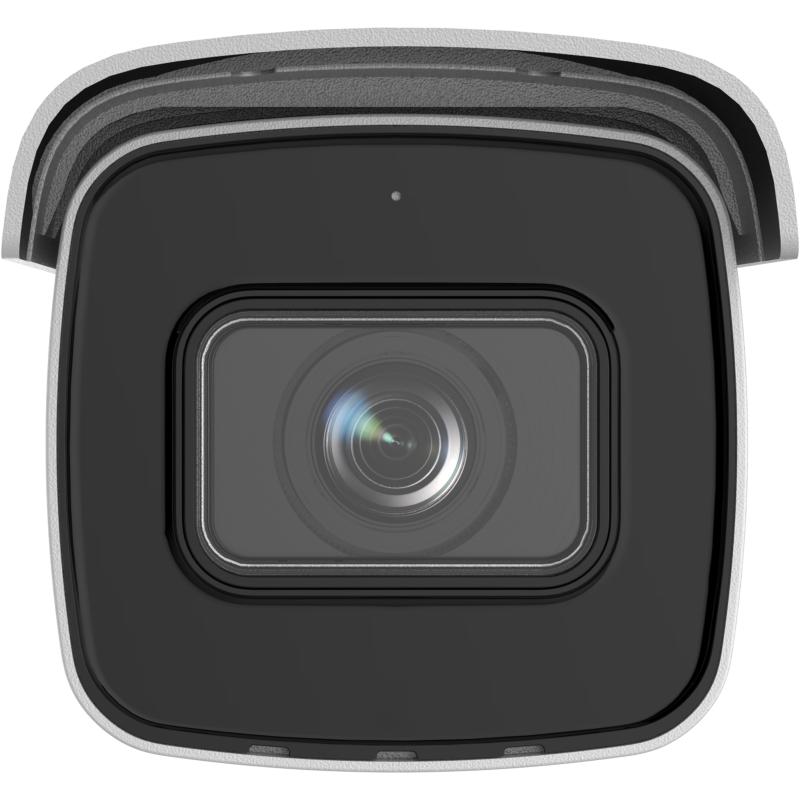

Hikvision - DS-2CD2683G2-IZS - 8 MP AcuSense Motorized Varifocal Bullet Network Camera
Part number:
DS-2CD2683G2-IZS
Price:
8 MP AcuSense Motorized Varifocal Bullet Network Camera
Features:
- High quality imaging with 8 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP67) and vandal-resistant (IK10)
| Specification | |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, Horizontal: 108°–30°, Vertical: 56°–17°, Diagonal: 131°–35° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 to 12 mm: D: 97–290 m, O: 38–115 m, R: 19–58 m, I: 9–29 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (3840×2160), 25 fps (other resolutions); 60 Hz: 20/30 fps |
| Sub-Stream | 50 Hz: 25 fps; 60 Hz: 30 fps |
| Third Stream | 10 fps for both 50 Hz and 60 Hz |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| SVC | H.264 and H.265 |
| Video Compression | H.265+/H.265/H.264+/H.264, MJPEG |
| ROI | 1 fixed region (main and sub-stream) |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | Varies by codec (8 to 320 Kbps) |
| Audio Sampling Rate | 8/16/32/44.1/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (S, G), ISAPI, SDK |
| User/Host | Up to 32 users, 3 user levels |
| Security | HTTPS, IP filter, TLS, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), ANR, encryption |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE 10/11 (plug-in), Chrome, Firefox, Edge (plug-in free) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate, saturation, brightness, contrast, etc. |
| Day/Night Switch | Day, Night, Auto, Schedule |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon masks |
| Interface | |
| Ethernet | 1 RJ45 10M/100M self-adaptive |
| Audio I/O | 1 input, 1 output (line) |
| On-Board Storage | microSD/SDHC/SDXC, up to 512 GB |
| Alarm | 1 input, 1 output |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering, exception |
| Smart Event | Face detection, line crossing, intrusion |
| Linkage | FTP/NAS upload, email, capture, recording |
| General | |
| Power | 12 VDC ± 25%, PoE (802.3at, Class 4) |
| Dimension | 97.9 × 93 × 308.5 mm (3.9" × 3.7" × 12.1") |
| Material | Aluminum alloy |
| Package Dimension | 385 × 190 × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | 1385 g (3.1 lb.) |
| With Package Weight | 2046 g (4.5 lb.) |
| Storage Conditions | -30 °C to 60 °C, Humidity ≤ 95% |
| Operating Conditions | Same as storage |
| Language | 33 languages including English, Russian, Chinese, etc. |
| General Function | Heartbeat, email reset, pixel counter, anti-flicker |
| Approval | |
| EMC | FCC, CE, RCM, KC, IC standards |
| Safety | UL, CB, CE-LVD certifications |
| Environment | CE-RoHS, WEEE, REACH |
| Protection | IP67, IK10 |
