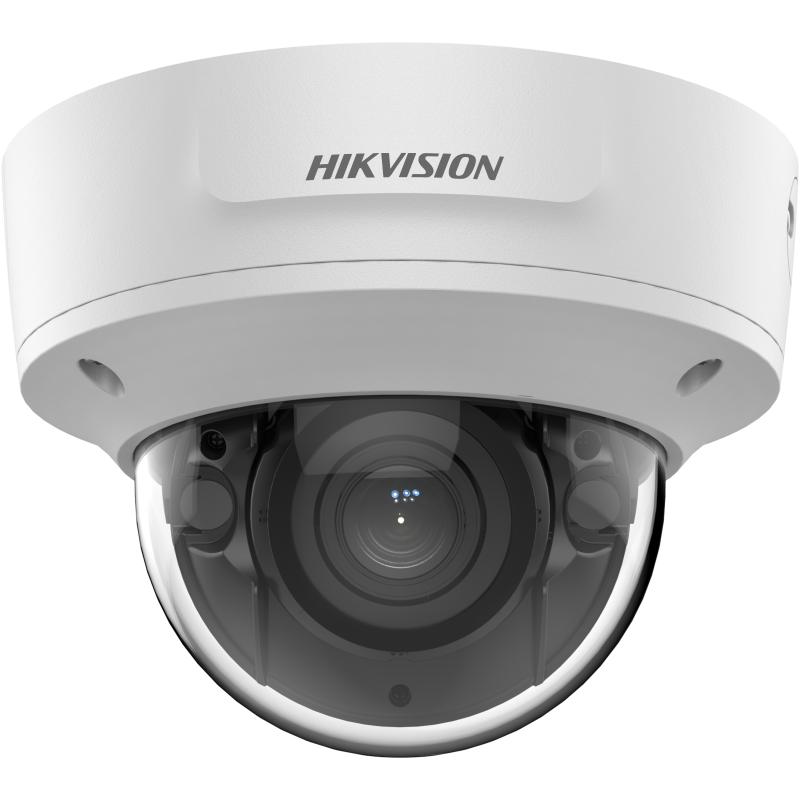

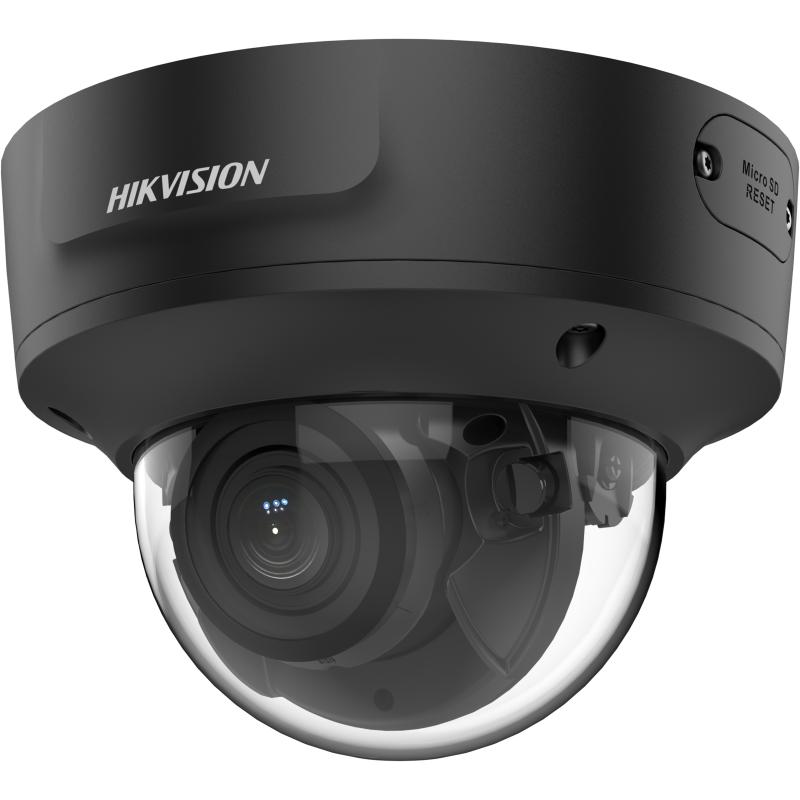

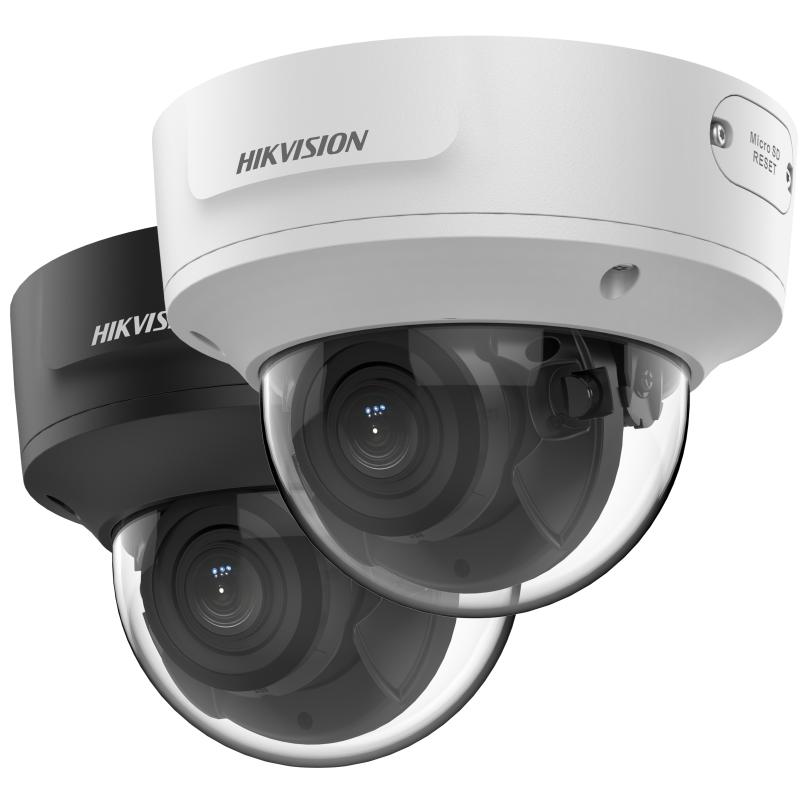

Hikvision - DS-2CD2743G2-IZS - 4 MP AcuSense Motorized Varifocal Dome Network Camera
Part number:
DS-2CD2743G2-IZS
Price:
4 MP AcuSense Motorized Varifocal Dome Network Camera
Features:
- High quality imaging with 4 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- Focus on human and vehicle targets classification based on deep learning
| Specification | |
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | ICR Cut |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Lens Type | Varifocal lens, motor-driven, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm; H FOV: 95.8° to 29.2°; V FOV: 50.6° to 16.4°; D FOV: 114.6° to 33.4° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 to 12 mm: D: 64–200 m, O: 25.4–79.4 m, R: 12.8–40 m, I: 6.4–20 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720); 60 Hz: 30 fps (same resolutions) |
| Sub-Stream | 50 Hz: 25 fps (1280×720, 640×480, 640×360); 60 Hz: 30 fps (same) |
| Third Stream | 50/60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) |
| Video Compression | Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region of Interest (ROI) | 1 fixed region for main and sub streams |
| Audio | |
| Audio Compression | G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 16–64 Kbps (AAC-LC), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3) |
| Audio Sampling Rate | 8 / 16 / 32 / 44.1 / 48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G), ISAPI, SDK |
| User/Host | Up to 32 users; Admin, Operator, User |
| Security | HTTPS, IP filtering, Audit Log, TLS, WSSE, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in: IE 10/11; Plug-in free: Chrome 57+, Firefox 52+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate, mirror, privacy mask, brightness, contrast, etc. |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1× RJ45 10M/100M self-adaptive |
| On-Board Storage | microSD, up to 512 GB |
| Audio Interface | 1 input, 1 output; 3.3 Vpp max; two-core terminal block |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human/vehicle), tamper, exception |
| Smart Event | Line crossing, intrusion, face detection |
| Linkage | Upload to FTP/SD/NAS, trigger record/capture, notify center, Email |
| General | |
| Power | 12 VDC ± 25% (max. 10.5 W), PoE 802.3af (max. 12.5 W) |
| Material | Metal (cover/base), Plastic (bubble) |
| Dimension | Ø153.3 × 111.6 mm |
| Package Dimension | 244 × 174 × 173 mm |
| Weight | 880 g (1.9 lb.) |
| With Package Weight | 1419 g (3.1 lb.) |
| Storage Conditions | -30 °C to 60 °C, ≤95% RH |
| Operating Conditions | -30 °C to 60 °C, ≤95% RH |
| Language | 33 languages including English, Russian, German, Japanese, etc. |
| General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
| Approval | |
| EMC | FCC, CE-EMC, RCM, IC, KC |
| Safety | UL, CB, CE-LVD, BIS |
| Environment | CE-RoHS, WEEE, Reach |
| Protection | IP67, IK10 |
