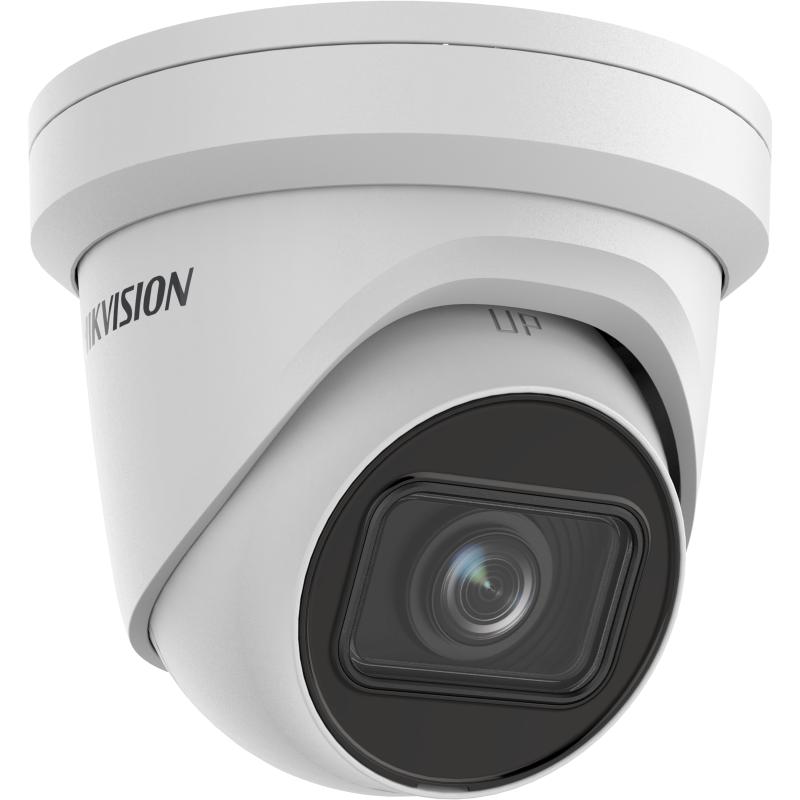

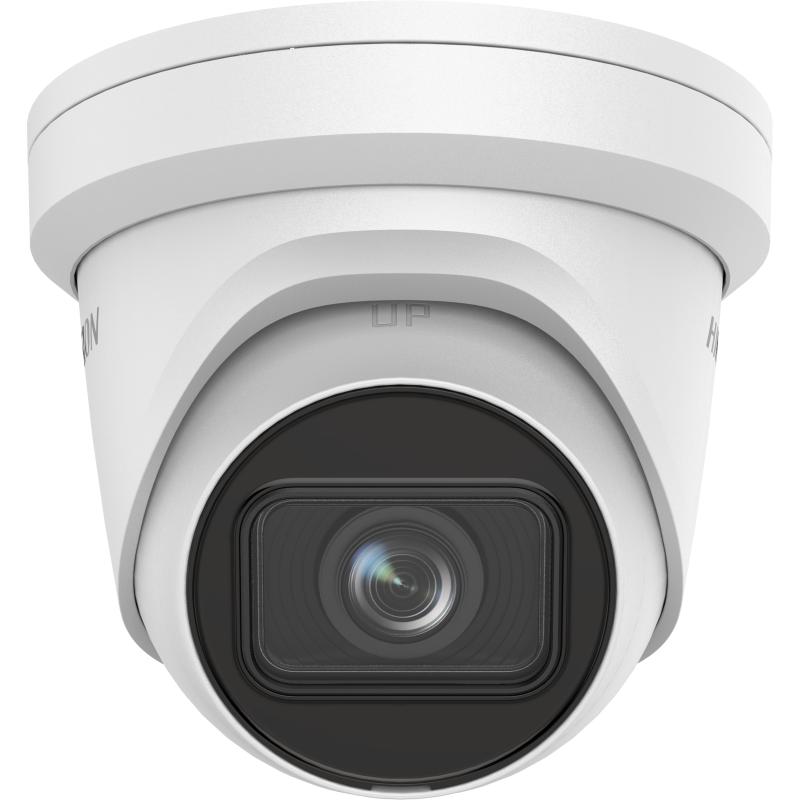

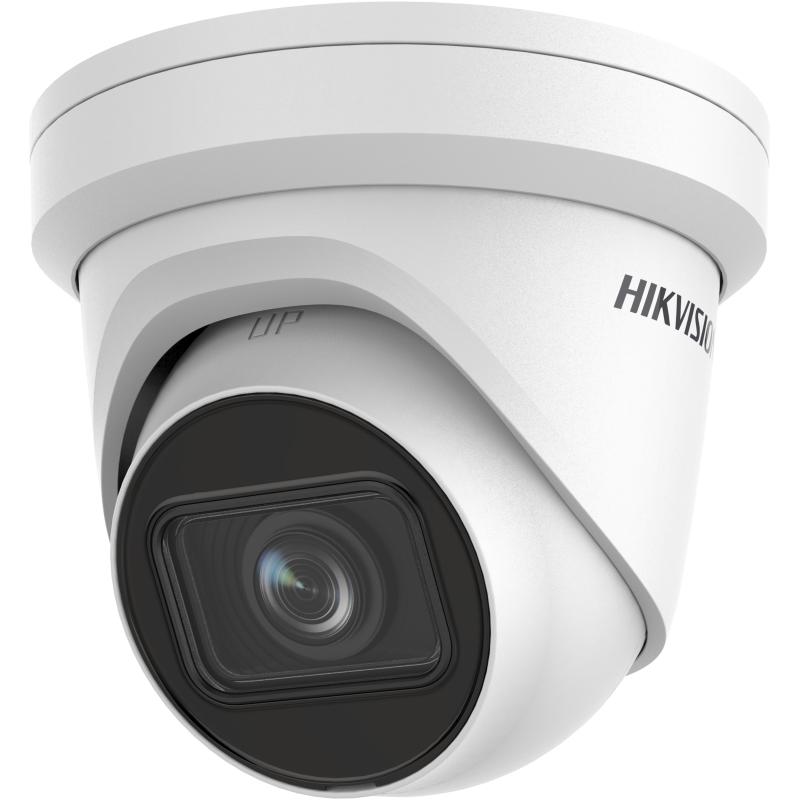

HIKVISION - DS-2CD2H43G2-IZS - TR IP67 4MP2.8-12MZ WDREXIR
Part number:
DS-2CD2H43G2-IZS
Price:
4 MP AcuSense Motorized Varifocal Turret Network Camera
Features:
- High quality imaging with 4 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Focus on human and vehicle targets classification based on deep learning
| Specification | |
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Max. Resolution | 2688 × 1520 |
| Lens | |
| Focal Length & FOV | 2.8 to 12 mm, HFOV 95.8°–29.2°, VFOV 50.6°–16.4°, DFOV 114.6°–33.4° |
| Aperture | F1.6 |
| Lens Mount | Ø14 |
| Lens Type | Varifocal, motorized, 2.8 to 12 mm |
| Iris Type | Fixed |
| DORI | |
| DORI Range | D: 64–200 m, O: 25.4–79.4 m, R: 12.8–40 m, I: 6.4–20 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 25fps; 60 Hz: 30fps (2688×1520, 1920×1080, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps; 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream | 50/60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) |
| Video Compression | H.265/H.264/H.264+/H.265+ (main); H.265/H.264/MJPEG (sub); H.265/H.264 (third) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| SVC | H.264 and H.265 |
| ROI | 1 fixed region for main and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8/16/32/44.1/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | Various (8–320 Kbps depending on codec) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G), ISAPI, SDK |
| Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, RTP/RTSP, etc. |
| User/Host | Up to 32 users; 3 user levels |
| Security | HTTPS, IP filtering, audit log, digest auth, TLS 1.1/1.2, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), ANR, encrypted memory card up to 512 GB |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser Support | IE 10/11 (plug-in), Chrome, Firefox, Edge (plug-in free) |
| Image | |
| SNR | ≥ 52 dB |
| Privacy Mask | 4 programmable polygon masks |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotation, brightness, contrast, gain, WB, etc. |
| WDR | 120 dB |
| Interface | |
| Audio In/Out | 1 input/output, 3.3 Vpp, terminal block |
| Alarm | 1 input, 1 output (12 VDC, 30 mA) |
| On-Board Storage | microSD/SDHC/SDXC, up to 512 GB |
| Reset Key | Yes |
| Ethernet | 1 RJ45 10/100 Mbps |
| Event | |
| Basic Event | Motion detection, tampering, exception |
| Smart Event | Face detection |
| Linkage | FTP/NAS/upload/email/capture/record |
| Deep Learning | |
| Perimeter Protection | Line crossing, intrusion (human/vehicle filter) |
| General | |
| General Functions | Heartbeat, mirror, email reset, pixel counter |
| Storage Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
| Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
| Material | Aluminum alloy |
| Dimension | Ø138.3 × 126 mm (5.5" × 5.0") |
| Package Dimension | 216 × 121 × 118 mm (8.5" × 4.8" × 4.6") |
| Weight | Approx. 830 g (1.8 lb) |
| With Package Weight | Approx. 1115 g (2.5 lb) |
| Power | |
| Power Supply | 12 VDC ±25%, 0.92 A, max. 11 W; PoE (802.3af) max. 12.5 W |
| Language Support | |
| Languages | 33 languages including English, Chinese, Russian, Spanish, etc. |
| Approval | |
| EMC | FCC, CE, RCM, IC, KC |
| Safety | UL, CB, CE-LVD, BIS |
| Environment | RoHS, WEEE, Reach |
| Protection | IP67, IK10 |
