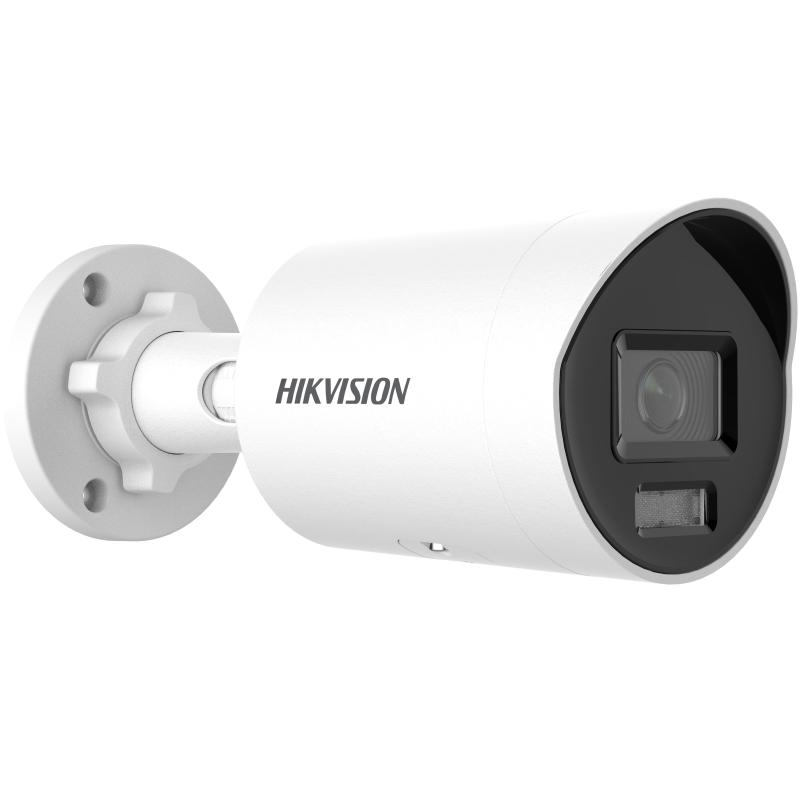

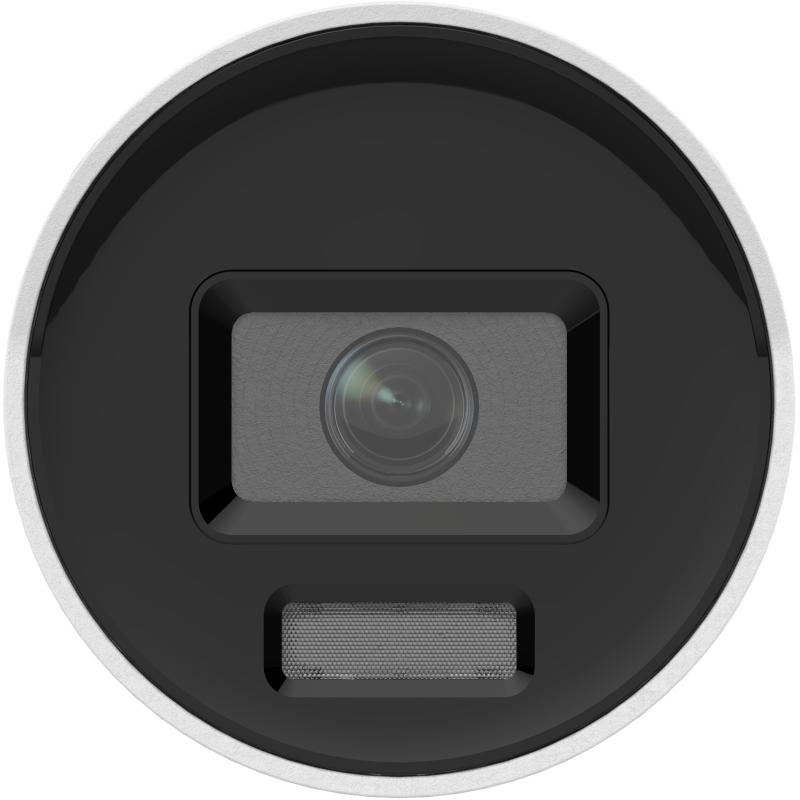

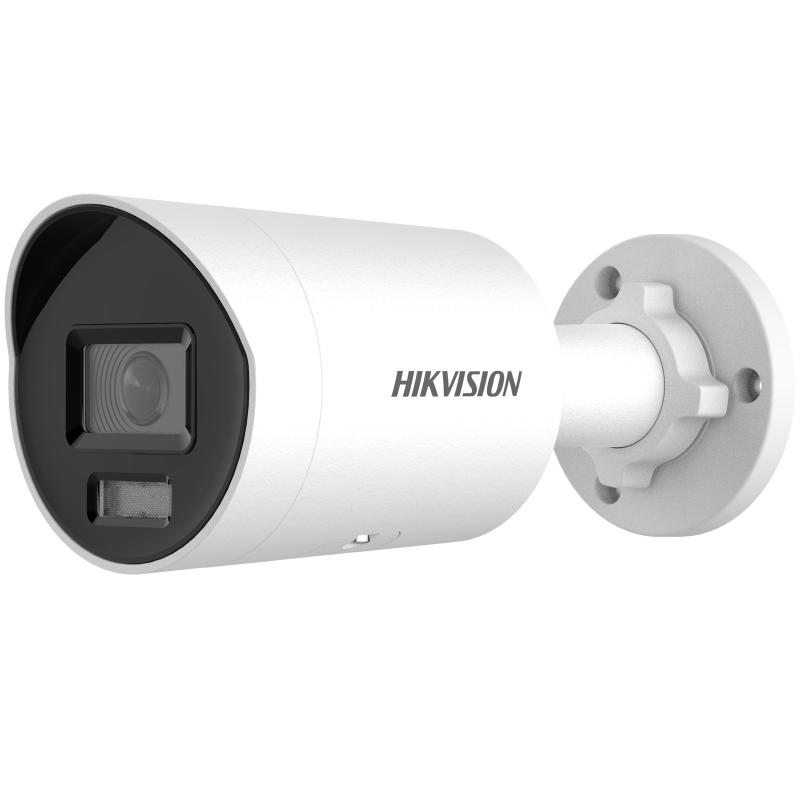

HIKVISION - DS-2CD3048G2-LIU 2.8mm - BULLET CAMERA
Part number:
DS-2CD3048G2-LIU 2.8mm
Price:
4 MP Dual Illumination Fixed Mini Bullet Network Camera, 2.8mm
Features:
- High quality imaging with 4 MP resolution
- Smart Dual-Light: advanced technology with long range
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- -U: Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
| Specification | |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: HFOV 100.2°, VFOV 54.7°, DFOV 119.7°4 mm: HFOV 81.1°, VFOV 44.7°, DFOV 94.6° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 1.9 m to ∞4 mm: 2.5 m to ∞ |
| DORI | |
| DORI Ranges | 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m4 mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| HEOP (Open Platform) | |
| Open Resources | Memory: 60 MB, Smart RAM: 400 MB, eMMC: 2 GB |
| Computing Power | 1.5 TOPS |
| Open Capability | HEOP 2.0, OpendevSDK |
| Deep Learning Structure | Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX |
| Programming Language | C, C++ |
| Video | |
| Main Stream | 50Hz: 25 fps (2688×1520, 1920×1080, 1280×720)60Hz: 30 fps (same resolutions) |
| Sub-Stream | 50Hz: 25 fps (1280×720, 640×480, 640×360)60Hz: 30 fps (same resolutions) |
| Third Stream | 50Hz/60Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) |
| Fourth Stream | 50Hz/60Hz: 10 fps (1280×720, 640×480, 640×360) |
| Video Compression | H.265/H.264/H.264+/H.265+MJPEG (some streams) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline, Main, High Profiles |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding | H.264, H.265 |
| Region of Interest | 5 fixed regions (main & sub-streams) |
| Target Cropping | Yes |
| Audio | |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | Ranges from 8 to 320 Kbps depending on codec |
| Audio Sampling Rate | 8 kHz to 48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users, 3 user levels |
| Security | HTTPS, 802.1X, watermark, IP filter, TLS 1.1/1.2/1.3, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), ANR, Hikvision memory card encryption & health detection |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE 10/11 (plug-in), Chrome/Firefox/Edge (plug-in-free) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, etc. adjustable via software/browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| Wide Dynamic Range | 120 dB |
| Privacy Mask | 4 programmable polygon masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10/100M self-adaptive Ethernet port |
| On-Board Storage | MicroSD/SDHC/SDXC up to 512 GB |
| Built-in Microphone | Yes |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering, exception |
| Linkage | FTP, NAS, email, recording, snapshot, notify center |
| Smart Event | Unattended baggage, object removal, scene change, audio exception, defocus |
| Deep Learning Functions | |
| Face Capture | Yes |
| People Counting | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance/exit with human/vehicle filtering |
| General | |
| Power | 12 VDC ±25%, Max 8.5W, PoE (IEEE 802.3af, Class 3) |
| Material | Metal (front cover, body, bracket) |
| Dimension | Ø74.4 mm × 179.2 mm |
| Package Dimension | 234 × 120 × 117 mm |
| Weight | Approx. 525 g |
| With Package Weight | Approx. 750 g |
| Storage Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
| Startup/Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
| General Function | Heartbeat, mirror, flash log, password reset, pixel counter, anti-banding |
| Language | 33 languages including English, Russian, Spanish, etc. |
| Approval | |
| EMC | FCC, CE-EMC, RCM, IC |
| Safety | UL, CB, CE-LVD, BIS, LOA |
| Environment | CE-RoHS |
| Protection | IP67 |
