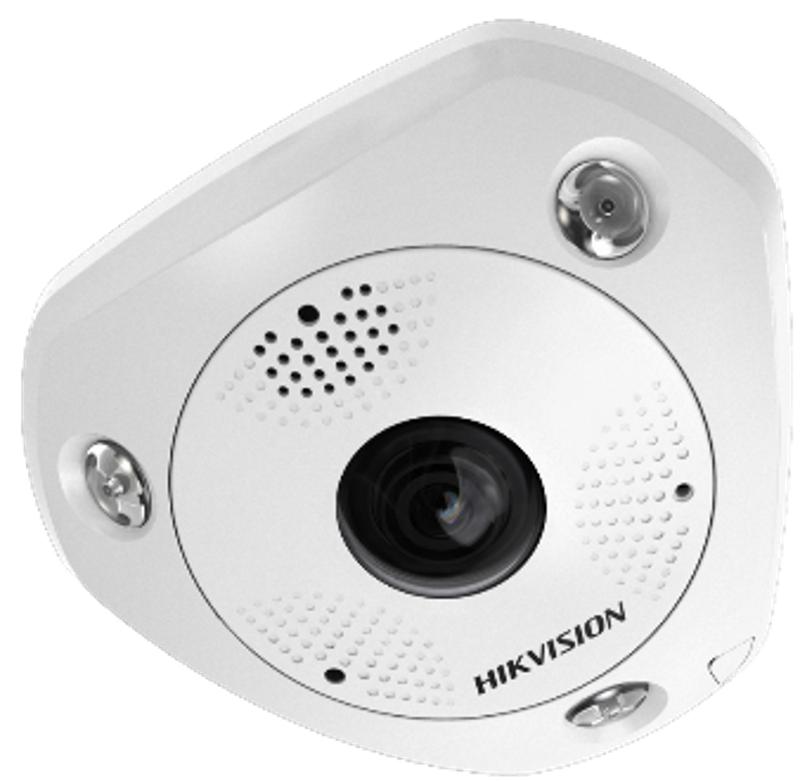

Hikvision - DS-2CD6365G0E-IVS 1.27mm - 6 MP Fisheye Network Camera
Part number:
DS-2CD6365G0E-IVS 1.27mm
Price:
6 MP Fisheye Network Camera
Features:
- 360° 0-blind zone image, a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
- Multi dewarping modes, the image can be dewarped to normal image to view intuitively
- Built-in mic and speaker, it supports two-way audio to realize real-time security by hearing sound and speaking through the camera
- IP66/IK10 , water resistant and vandal proof, there is no need to worry about water ingress when it is used in outdoor scenarios
| Specification | |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3072 × 2048 |
| Min. Illumination | Color: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Lens | |
| Focal Length & FOV | 1.27 mm, horizontal FOV 180° (wall), 360° (ceiling/table) |
| Lens Mount | M12 |
| Aperture | F2.6 |
| Illuminator | |
| Supplement Light Type | IR, 3 LEDs (independent control) |
| Supplement Light Range | Up to 15 m IR range |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50Hz: 25fps (3072x2048, etc.); 60Hz: 30fps (same res) |
| Sub-Stream | 50Hz: 25fps (720x720, 720x480); 60Hz: 30fps |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| SVC | H.265 and H.264 support |
| ROI | 4 fixed regions for main/sub-stream |
| Fisheye Display | |
| Mount Type | Table, wall, ceiling |
| Display Mode | 18 modes (varied by mount type, software/hardware decoding) |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps (G.711), 16Kbps (G.722.1/G.726), 32–160Kbps (MP2L2) |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, HTTP, FTP, DHCP, RTSP, SNMP, etc. |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S/G), ISAPI |
| User/Host | Up to 32 users, 3 levels (admin/operator/user) |
| Security | Passwords, HTTPS, 802.1x, IP filtering, etc. |
| Network Storage | microSD (256GB), NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200 |
| Web Browser | IE8+, Chrome 31–44, Firefox 30–51, Safari 8.0+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, etc. adjustable |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered |
| WDR | Digital WDR |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Picture Overlay | Supports 128x128 24-bit bmp logo |
| Interface | |
| Ethernet Interface | 1 RJ45 10/100/1000M self-adaptive |
| On-Board Storage | microSD/SDHC/SDXC slot, up to 256 GB |
| Built-in Microphone | -S model: 2 built-in microphones |
| Built-in Speaker | -S model: Yes |
| Audio I/O | -S model: 1 input & 1 output (3.5mm) |
| Alarm I/O | -S model: 1 alarm in (12V), 1 alarm out (24VDC, 1A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion, tamper, net disconnection, etc. |
| Smart Event | Line crossing, intrusion, baggage, object removal, audio exception |
| General | |
| Power | 12V DC ± 20%, Max. 11W, PoE 802.3af, Max. 12W |
| Dimension | 167.4 × 152.8 × 50.1 mm (no –V), 167.4 × 152.8 × 55 mm (–V) |
| Weight | Approx. 1400 g (3.09 lbs) |
| Operating Conditions | -40 °C to +60 °C, ≤95% RH (non-condensing) |
| Approval | |
| EMC | IC, FCC, CE, RCM standards |
| Safety | CB, UL, CAN/CSA, LOA |
| Environment | CE-RoHS |
| Protection | –V model: IK10, IP67 |
