HIKVISION - DS-2CD6365G0E-S/RC 1.27mm - 6MP Fish, H265+,in-ceil
Part number:
DS-2CD6365G0E-S/RC 1.27mm
Price:

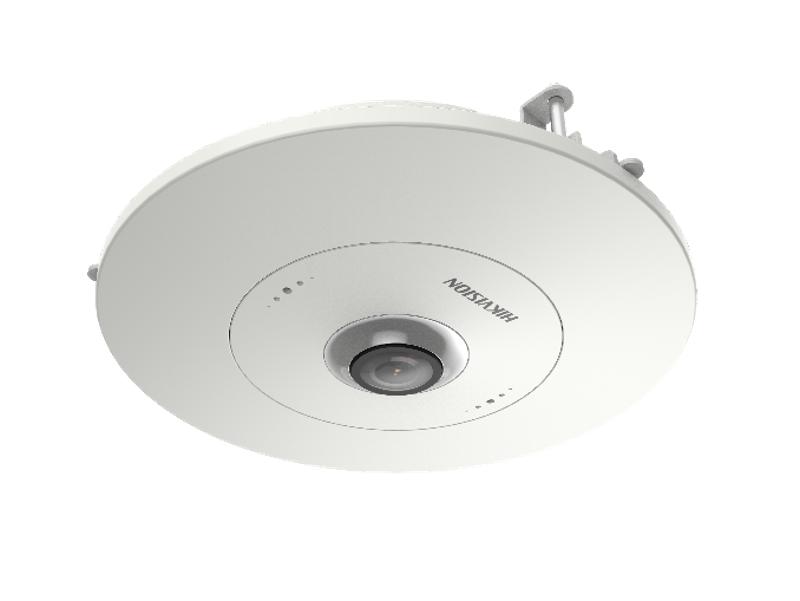

6 MP In-Ceiling Fisheye Network Camera
Features:
- 360° 0-blind zone image, a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
- Multi dewarping modes, the image can be dewarped to normal image to view intuitively
- Built-in mic, it supports two-way audio to realize real-time security by hearing sound and speaking through the camera
- In-ceiling mounting makes the fisheye camera unnoticeable and user friendly
- With up to 6 MP high resolution lens, the image is very clear even dewarped into 4 PTZ images
| Specification | |
| Camera | |
| Image Sensor | 1/1.8'' Progressive Scan CMOS |
| Max. Resolution | 3072 × 2048 |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) |
| Shutter Time | 1 s to 1/100,000 s |
| Lens | |
| Focal Length & FOV | 1.27 mm, 360° (In-ceiling mounting) |
| Lens Mount | M12 |
| Aperture | F2.6 |
| Video | |
| Main Stream | 50Hz: 25fps (3072×2048, 2048×2048, 1280×1280); 60Hz: 30fps (same resolutions) |
| Sub-Stream | 50Hz: 25fps (720×720, 720×480); 60Hz: 30fps (same resolutions) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 4 fixed regions for main and sub-stream |
| Fisheye Display | |
| Mount Type | Support in-ceiling mounting |
| Display Mode | 14 display modes total |
| Software Decoding | Various fisheye, panorama, and PTZ combinations |
| Hardware Decoding | Fisheye view, panorama, 4PTZ, etc. |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps (G.711), 16Kbps (G.722.1/G.726), 32–160Kbps (MP2L2) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, etc. |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, G), ISAPI |
| User/Host | Up to 32 users, 3 levels: admin/operator/user |
| Security | Password, HTTPS, IEEE 802.1x, IP filter, etc. |
| Network Storage | microSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200 |
| Web Browser | IE8+, Chrome 31.0–44, Firefox 30.0–51, Safari 8.0+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, etc. adjustable |
| Day/Night Switch | Day/Night/Auto/Schedule/Alarm Triggered |
| Wide Dynamic Range | Digital WDR |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Picture Overlay | LOGO (128×128 24bit BMP) over video |
| Interface | |
| Ethernet | 1 RJ45 10M/100M/1000M port |
| On-Board Storage | microSD/SDHC/SDXC slot (up to 256 GB) |
| Built-in Microphone | 2 built-in microphones |
| Audio (-S model) | 1 audio input/output (3.5 mm, mono) |
| Alarm (-S model) | 1 input (max 12V), 1 output (12 VDC, 0.5 A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, tampering, IP conflict, etc. |
| Smart Event | Line crossing, intrusion, object removal, etc. |
| Audio Exception Detection | Yes |
| General | |
| Power | 12 VDC ±20%, 0.5 A, 6 W; PoE: 802.3af, Class 3 |
| Dimensions | Ø165 × 69 mm (6.5" × 2.7") |
| Weight | Approx. 480 g (1.1 lbs) |
| Operating Conditions | -10°C to +40°C, Humidity ≤95% (non-condensing) |
| General Function | Reset, anti-flicker, mirror, watermark, etc. |
| Approval | |
| EMC | IC, FCC, KC, CE, RCM standards |
| Safety | CB, UL, LOA, BIS |
| Environment | CE-RoHS (2011/65/EU + 2015/863) |
