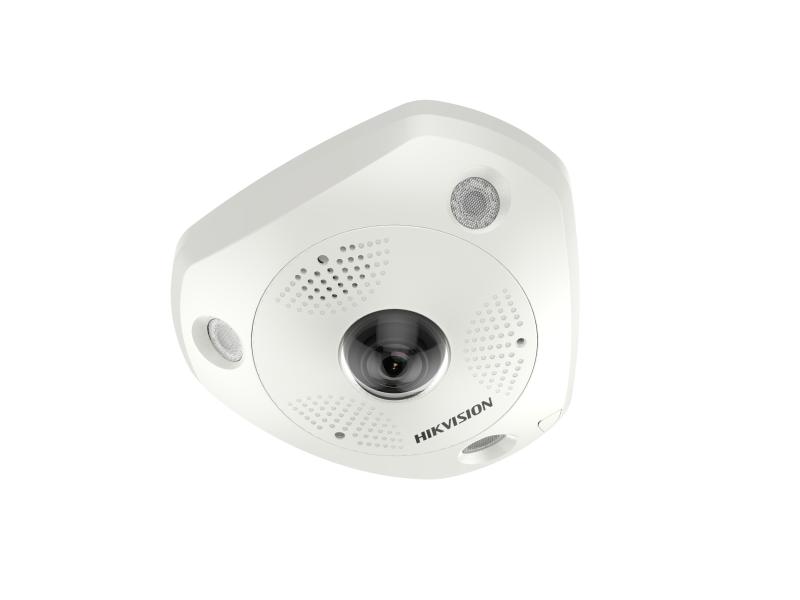

Hikvision - DS-2CD63C5G0-IVS 1.29mm - 12 MP DeepinView Immervision Lens Fisheye Network
Part number:
DS-2CD63C5G0-IVS 1.29mm
Price:
12 MP DeepinView Immervision Lens Fisheye Network
Features:
- Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
- Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
- Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
- Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
- High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
- Each image is clear and detailed
- Panomorph lens RPL: 89VVT
| Specification | |
| Camera | |
| Image Sensor | 1/1.7" progressive scan CMOS |
| Minimum Illumination | Color: 0.05 lux @ (f/2.2, AGC on), B/W: 0.01 lux @ (f/2.2, AGC on), 0 lux with IR |
| Shutter Speed | 1 to 1/100,000 s |
| Slow Shutter | Supported |
| Lens | 1.29 mm, f/2.2; horizontal field of view: 180°, vertical field of v iew: 180° |
| Lens Mount | M12 |
| Day/Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | Digital WDR |
| Compression Standard | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; sub stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline profile/main profile/high profile |
| H.264+ | Main stream supported |
| H.265 Type | Main profile |
| H.265+ | Main stream supported |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| SVC | H.265 and H.264 supported |
| IR | |
| IR Range | Up to 50 ft (15 m) with 3 LEDs. Each LED is controlled independently. |
| Wavelength | 850 nm |
| Image | |
| Maximum Resolution | 4000 x 3000 |
| Main Stream | 20 fps (4000 × 3000), 30 fps (3000 × 3000, 2560 × 2560) |
| Sub Stream | 20 fps (720 × 720, 640 × 480) |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or Web browser |
| Day/Night Switching | Day/night/auto/schedule/triggered by alarm in |
| Picture Overlay | Logo picture can be overlaid on video with 128 x 128 24-bit bmp format |
| Live View Display | |
| Mount Type | Table, wall and ceiling mounts |
| Decoding Mode | Hardware and software decoding |
| Display Mode | Total of 18 display modes supported: Software Decoding: Ceiling Mount: Fisheye View, 180° Panorama View, 360° Panorama View, 360° Panorama + PTZ, 360° Panorama + 3 PTZ, 360° Panorama + 6 PTZ, 360° Panorama + 8 PTZ, 2 PTZ, 4 PTZ, Fisheye + 3 PTZ, Fisheye + 8 PTZ, Hemisphere, AR Hemisphere, Cylinder Wall Mount: Fisheye View, Panorama View, Panorama + 3 PTZ, Panorama + 8 PTZ, 4 PTZ, Fisheye + 3 PTZ, Fisheye +8 PTZ Table Mount: Fisheye View, 180° Panorama View, 360° Panorama View, 360° Panorama + PTZ, 360° Panorama + 3 PTZ, 360° Panorama + 6 PTZ, 360° Panorama + 8 PTZ, 4 PTZ, Fisheye + 3 PTZ, Fisheye + 8 PTZ, Cylinder Hardware Decoding: Ceiling Mount: Fisheye View, 180° Panorama View, Panorama View, 4 PTZ, Fisheye + 3 PTZ, 4 PTZ Fusion Wall Mount: Fisheye View, 180° Panorama View, Panorama View, 4 PTZ, Fisheye + 3 PTZ, 4 PTZ Fusion Table Mount: Fisheye View, 180° Panorama View, Panorama View, 4 PTZ, Fisheye + 3 PTZ, 4 PTZ Fusion |
| Audio | |
| Environment Noise Filtering | Supported |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2) |
| Smart Features | |
| Behavior Analysis Detection | Line crossing, intrusion, region entrance, region exiting, unattended baggage, object removal |
| Exception Detection | Audio exception detection |
| Intersection Analysis | Detects and analyzes flow in an intersection-like scene and generate reports. Supports one intersection of up to 10 ways. |
| Heat Map | Graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heat map report types are available: space heat map and time heat map line chart. |
| Region of Interest | Four fixed regions for main stream and sub-stream |
| Network | |
| Network Storage | Supports microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour |
| Security Measures | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Standard | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 8+, Chrome 31.0–44, Firefox 30.0–51, Safari 8.0+ |
| Interface | |
| Communication Interface | One RJ-45 10M/100M/1000M self-adaptive Ethernet port |
| Audio | Two built-in microphones, one built-in speaker, mono sound, one audio input (line in, 3.5 mm), one audio output (line out, 3.5 mm) |
| Alarm | 1-ch alarm input, maximum 12 V; 1-ch alarm output, maximum 24 VDC, 1 A |
| On-Board Storage | Built-in microSD/SDHC/SDXC slot, up to 256 GB |
| Reset Button | Yes |
| General | |
| Operating Conditions | -40° to 140° F (-40° to 60° C); humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ±20%, PoE (802.3at, class 4), two-core terminal block |
| Power Consumption | 12 VDC, 1 A, maximum 12.5 W, PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.2 A, maximum 15 W |
| Protection | IP67, IK10 |
| Heater | Yes |
| Material | Metal |
| Dimensions | 6.6" x 6" x 2.2" (167.4 mm x 152.8 mm x 55 mm) |
| Weight | 3.09 lbs (1.40 kg) |
