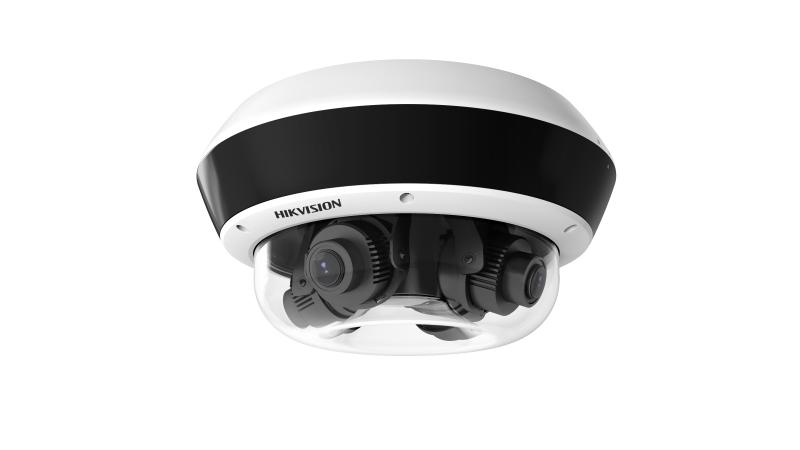

HIKVISION - DS-2CD6D24FWD-IZHS 2.8-12mm - PANOVU OUTDR 8MP MS IR-H
Part number:
DS-2CD6D24FWD-IZHS 2.8-12mm
Price:
4-Directional Multisensor Network Camera
Features:
- 4 adjustable lenses in one camera cover up to a 360° field of view, ensuring zero-blind zone monitoring
- The monitoring tilt angle can also be adjusted
- A built-in heater provides ultra-low temperature start-up to -40 °C
- IP67/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
- FC interface: the camera can be connected by fiber optical cable for the transfer of data over long distances
- H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
| Specification | |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.006 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.6, AGC ON)B/W: 0.002 Lux @ (F1.2, AGC ON), 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Four flexible lens in one track, slide range: -180°to 180°, tilt: 0°to 135°, rotate: 0°to 355° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 30°to 96.3°, vertical FOV 17°to 54°, diagonal FOV 34° to 121° |
| Lens Mount | Ø14 |
| Focus | Semi-auto,Manual |
| Aperture | F1.6 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | 10 m to 30 m |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 24 fps (704 × 480, 640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Target Cropping | Yes |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface |
| User/Host | Up to 32 users3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Client | iVMS-4200 |
| Web Browser | IE8+, Chrome31-44, Firefox 30.0-51 |
| Image | |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC, 3D DNR |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB |
| Audio | 1-ch 3.5 mm input (line in/mic in), 1-ch 3.5 mm output, dual-track, stereo |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A or 110 VAC, 500 mA ) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Fiber Optical | FC interface, single mode, single fiber, 20 km transmission distance, (Tx) 1310 nm/1.25 G, (Rx) 1550 nm/1.25 G |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detectionFace detection, audio exception detection, scene change detection, defocus detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture |
| General | |
| Power | 12 VDC ± 20%, 2.3 A, max. 28 W,Hi-PoE: 42.5 VDC to 57 VDC, 0.8 A to 0.6 A, max. 34 W,three-core terminal block |
| Material | Aluminum alloy, engineering plastics |
| Dimension | Ø290 mm × 145.5 mm (Ø11.42" × 5.73") |
| Package Dimension | 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16") |
| Weight | Approx. 4.7 kg (10.3 lb.) |
| With Package Weight | Approx. 7.7 kg (16.8 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | One-key reset, anti-banding, mirror, heartbeat, password protection, privacy mask |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU |
| Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
